a. graphical processing unit(GPU)
b. side cover
5. Follow the procedure in After working inside your computer.
Rear system fan
Removing the rear system fan
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. side cover
b. processor heat sink module(PHM)
3. To remove the rear system fan:

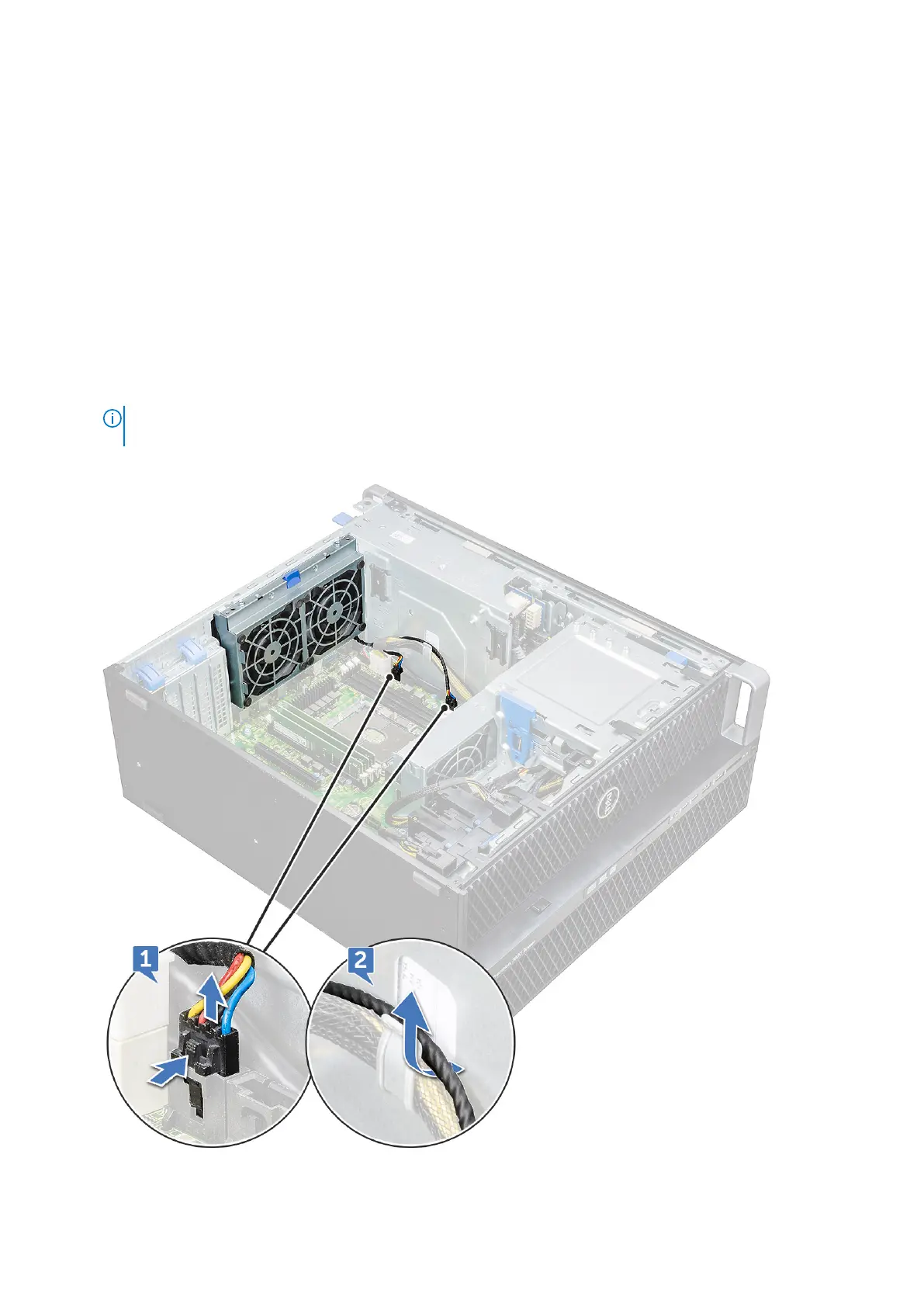

a. Disconnect the two fan cables [1] from the system board.
NOTE: Do not pull the connector by the cable wires. Instead, disconnect the cable by pulling on the connector
end. Pulling on the cable wires may loosen them from the connector.
b. Unroute the cable from the cable holder [2] on the PSU bracket.
c. Remove the screws [1].
58
Removing and installing components
