Installing HDD bezel
1. Hold the bezel and ensure that the hooks on the bezel snap into the notches on the system.
2. Press the blue lock button on the left edge of the ODD bay to secure the bezel to the system.
3. Install the side cover.
4. Follow the procedure in After working inside your computer.
Hard disk drive assembly
Removing the HDD carrier
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. side cover
NOTE: Do not remove the side cover, if the front I/O bezel is unlocked.
b. HDD bezel

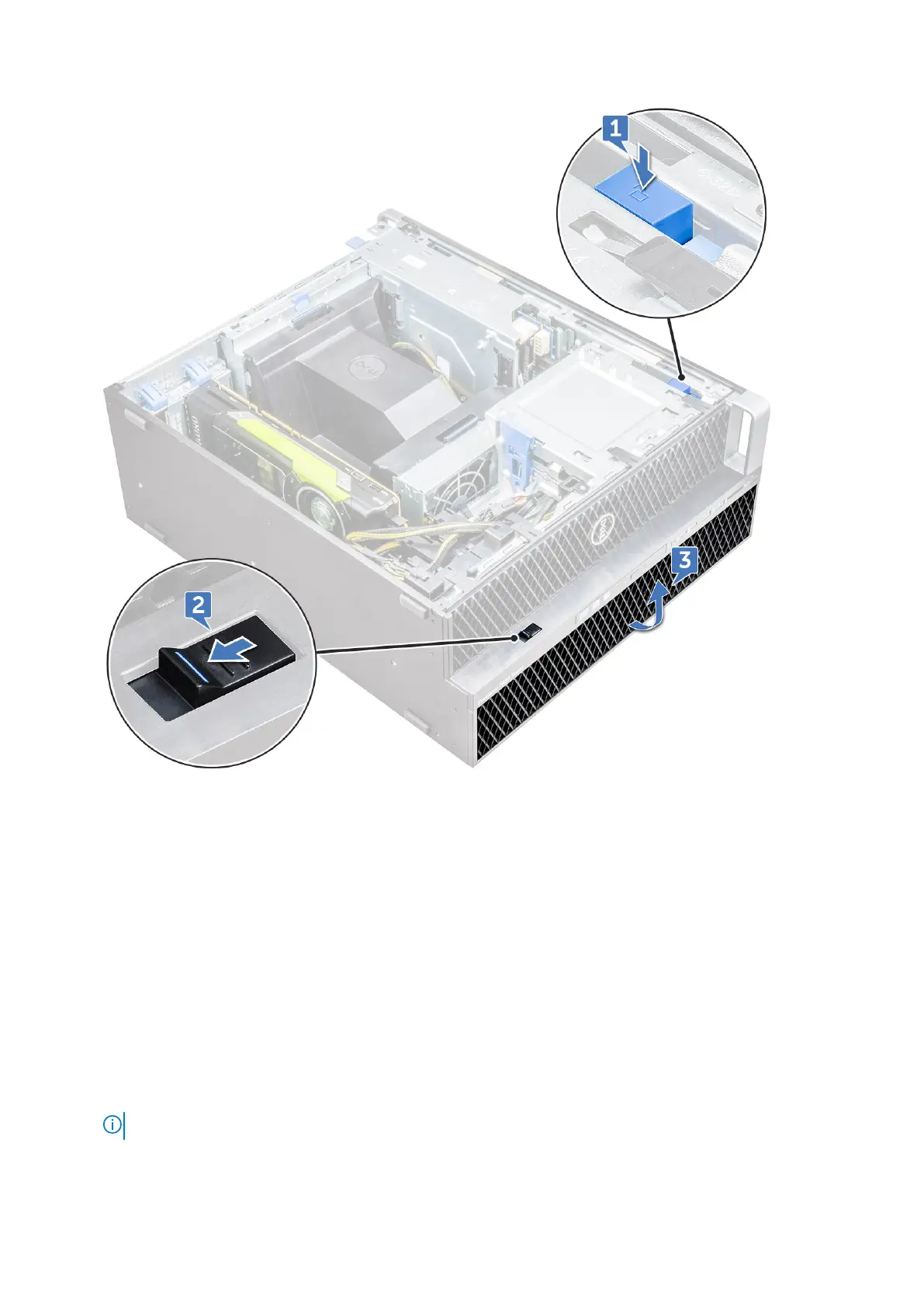

3. To remove the HDD carrier:
