Installing the front bezel
1. Hold the bezel and ensure that the hooks on the bezel snap into the notches on the system.
2. Rotate the bezel forward and press the front bezel until the tabs click into place.
3. Follow the procedure in After working inside your computer.
Hard Disk Drive bezel
Removing HDD bezel
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.

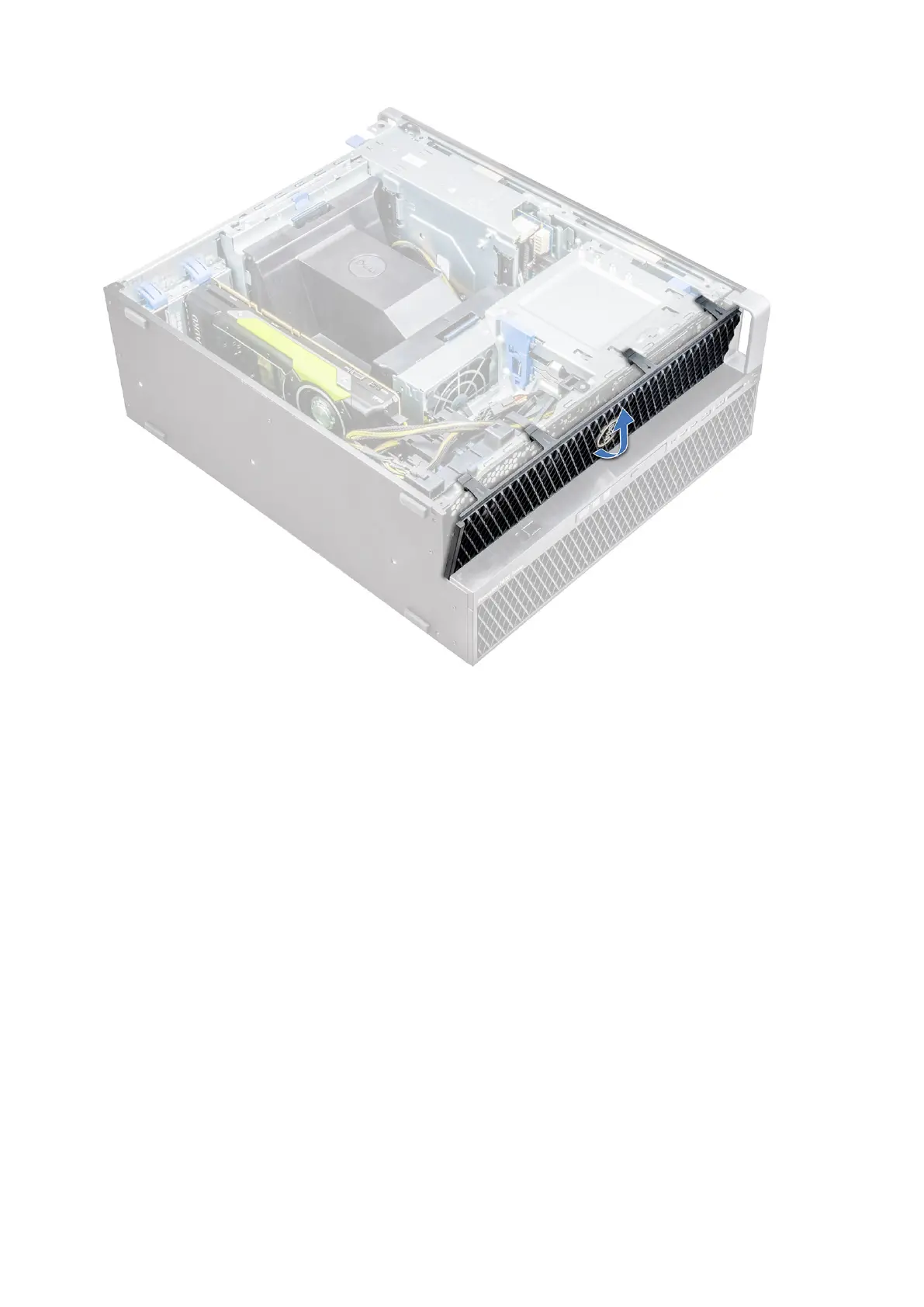

3. To remove the HDD bezel:
a. Press the blue unlock button [1] on the edge of ODD bay.
b. Slide the latch [2] to the unlock position, on the front I/O bezel.
c. Rotate forward and lift the HDD bezel [3] away from the system.
