a. side cover
b. front bezel
c. 5.25 inch ODD bracket

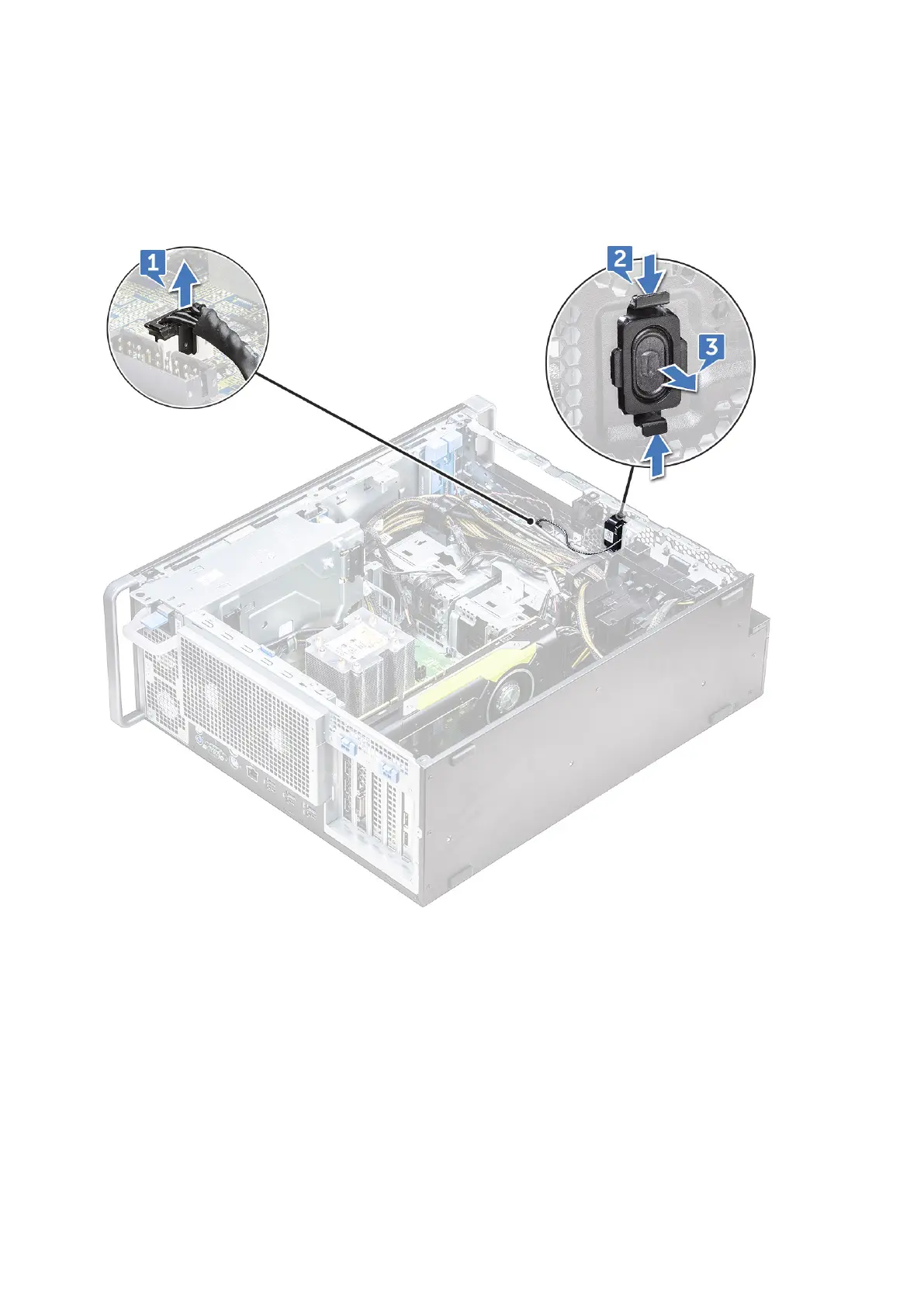

3. To remove the internal chassis speaker:
a. Disconnect the speaker cable [1] from the front I/O module.
b. Press the speaker securing tabs [2], then pull to release it from the system.
c. Gently push the speaker [3] with its cable out of the system.
Installing the internal chassis speaker
1. Press and hold the tabs on either side of the intrusion speaker, and slide the speaker module into the slot to secure it to the system.
2. Connect the internal chassis speaker cable to the connector on the system chassis.
3. Install the:
a. 5.25 inch ODD bracket
b. front bezel
c. side cover
4. Follow the procedure in After working inside your computer
48
Removing and installing components
