Installing front input and output bezel

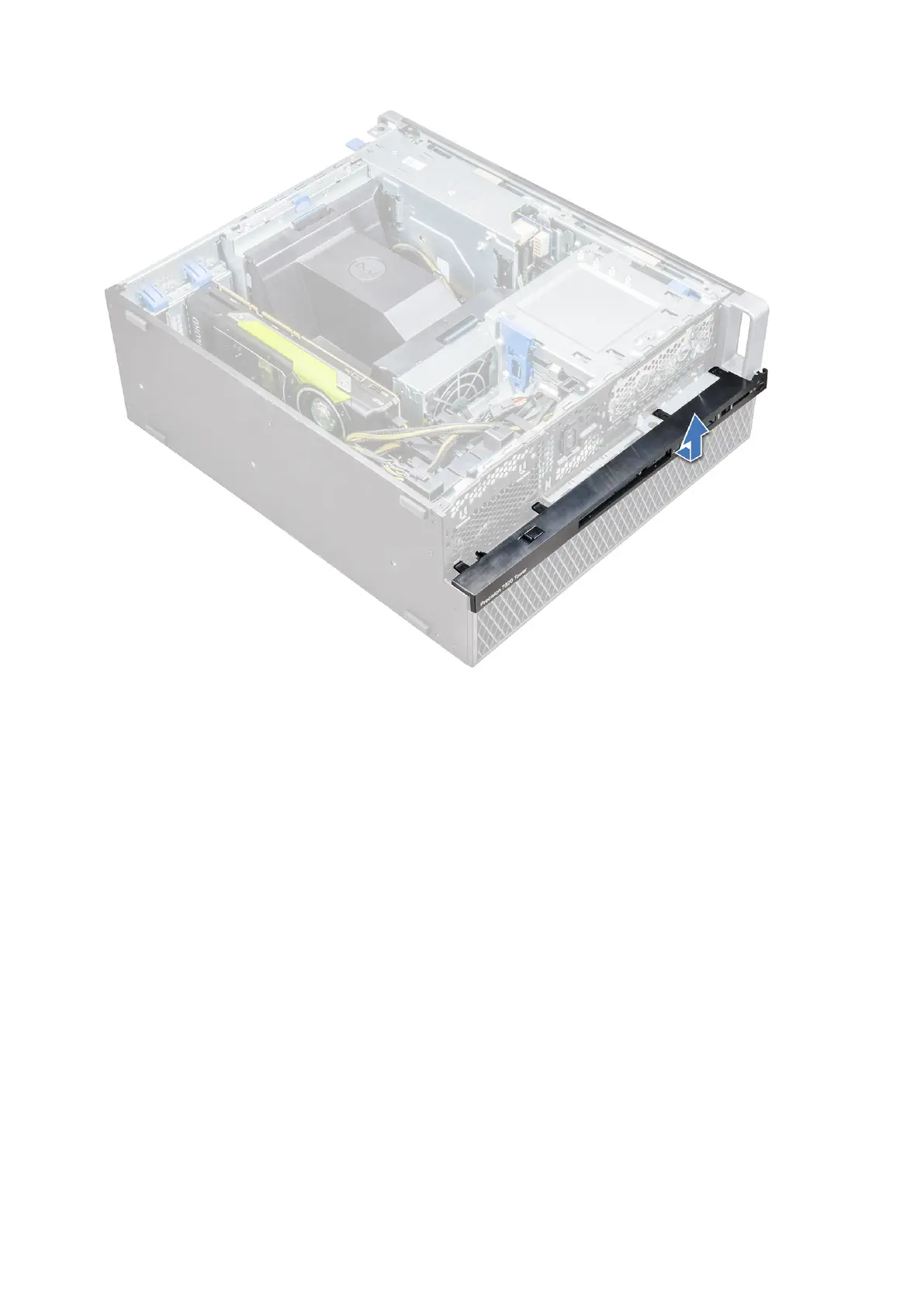

1. Hold the input and output(I/O) bezel and ensure that the hooks on the bezel snap into the notches on the system.
2. Press the retention tabs and secure them to the chassis.
3. Install the :
a. front bezel
b. side cover
4. Follow the procedure in After working inside your computer.
5.25 inch ODD bracket
Removing the 5.25 ODD bracket
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. side cover
b. front bezel
3. To remove the ODD bracket:
a. Remove the ODD filler from the chassis.
Removing and installing components
37
