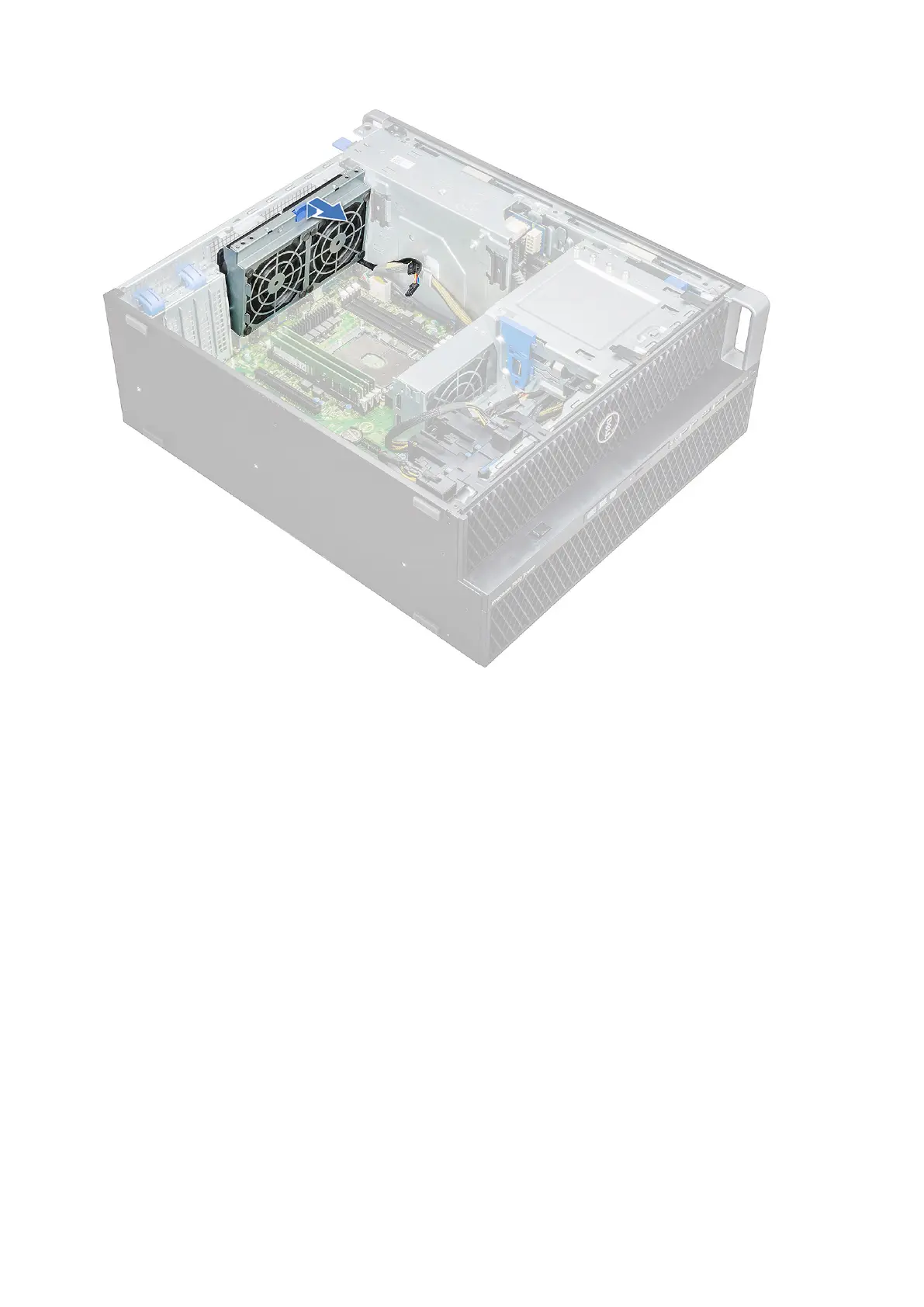

Installing the rear system fan
1. Insert the fan assembly on one side to align it with the screw tab on the PSU bracket.
2. Press the assembly on the other side to align it with the screw tab on the PCI bracket.
3. Tighten the two screws to secure it with the system.
4. Connect the two fan cables to the system board.
5. Install the:
a. processor heat sink module(PHM)
b. side cover
6. Follow the procedure in After working inside your computer.
Front system fan
Removing the front system fan
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. side cover
b. front bezel
c. PCIe holder
d. graphical processing unit (GPU)
3. To remove the front system fan:
a. Unroute the following cables from the card holder [5]:
60
Removing and installing components
