Input and output panel bracket

Removing input and output panel bracket

1. Follow the procedure in Before working inside your computer.

2. Remove the:

a. side cover

b. front bezel

c. front input and output bezel

d. 5.25 inch ODD bracket

e. front input and output panel

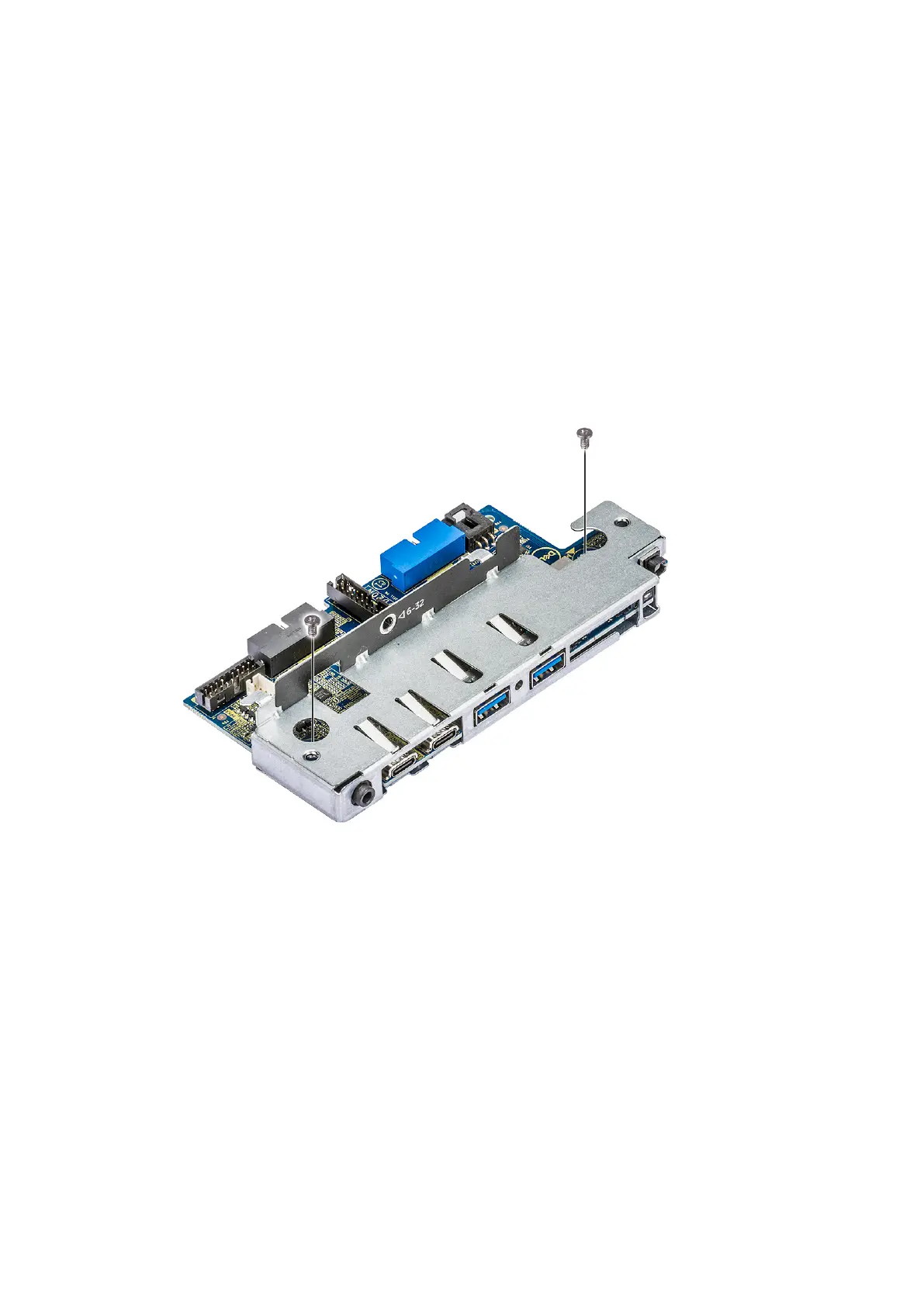

3. To remove the input and output(I/O) panel bracket:

a. Remove the two screws.

b. Slide the I/O module out of the bracket.

Removing and installing components
