3. Replac the two side screws and the central screw.

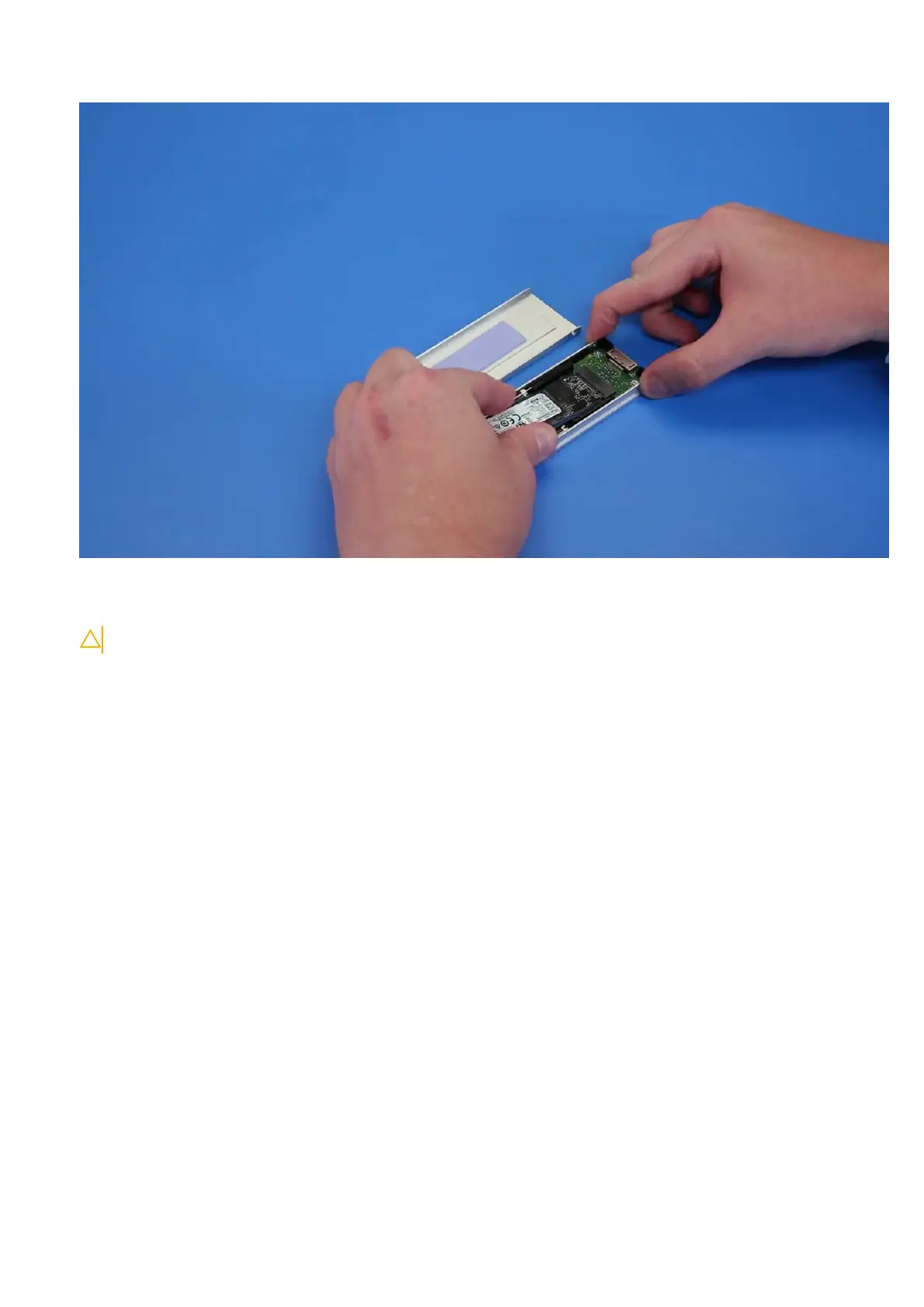

4. To install the SSD carrier slide the carrier in the NVMe flexbay until it clicks in place.
5. Slide the carrier into the drive bay until it clicks into place.
CAUTION: Ensure that the latch is open before installing the carrier.
6. Lock the latch.
7. Install the following components:
a. HDD bezel
b. side cover
8. Follow the procedure in After working inside your computer.
Slim Optical Disk Drive
Removing the slim ODD
1. Follow the procedure in Before working inside the computer.
2. Remove the side cover.
3. To remove the slim ODD:
a. Remove the screw [1] that secures the slim ODD and push the slim ODD [2] out of the chassis.
Removing and installing components
33
