Installing input and output panel bracket

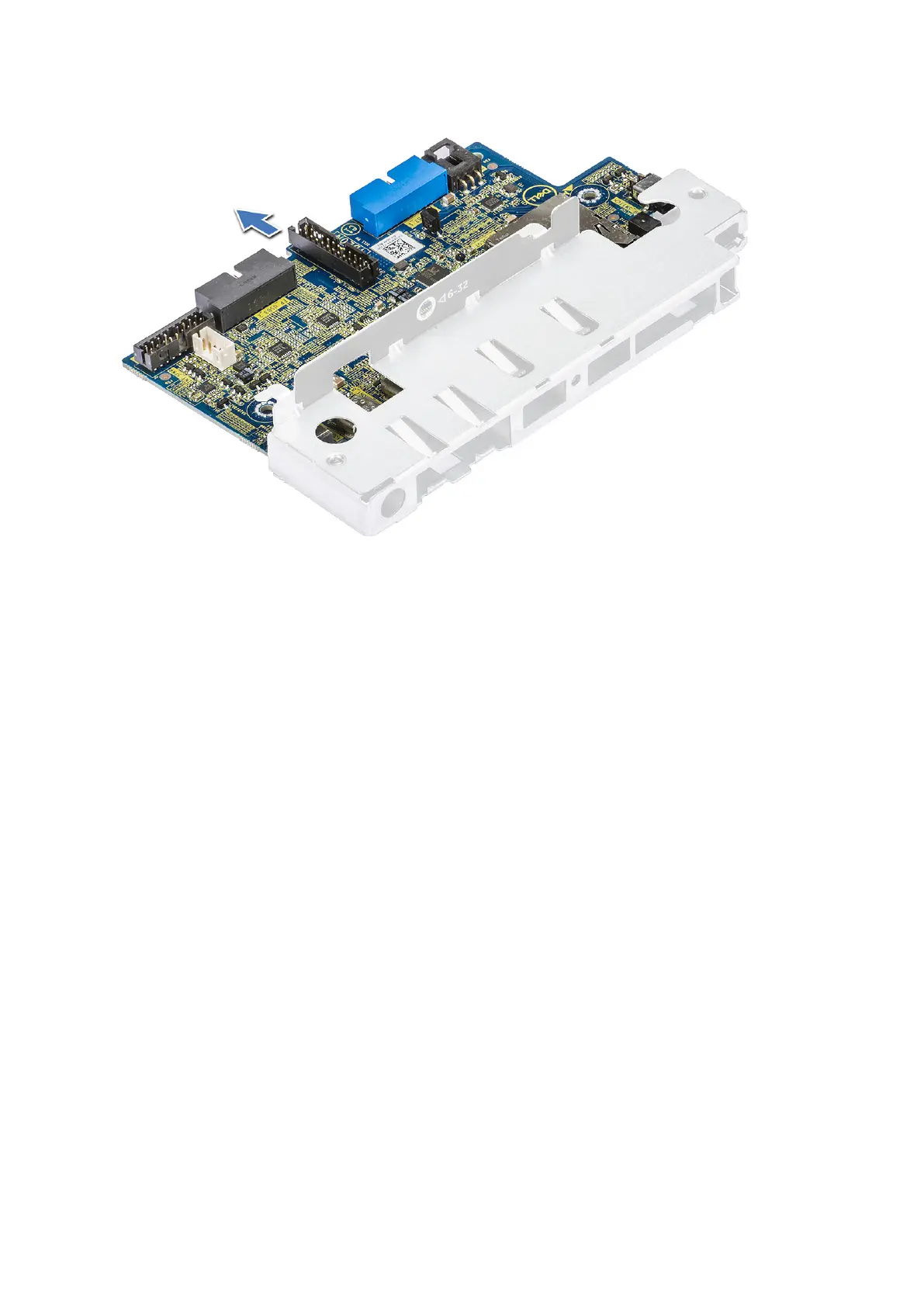

1. Insert the input and output(I/O) panel into the metal bracket.
2. Replace the screws to secure the I/O panel bracket to the I/O panel.
3. Install the:
a. front input and output panel
b. front input and output bezel
c. 5.25 inch ODD bracket
d. front bezel
e. side cover
4. Follow the procedure in After working inside your computer.
VROC module
Removing the VROC module
Plug-out the VROC module from the system board in the upward direction.
Removing and installing components
45
