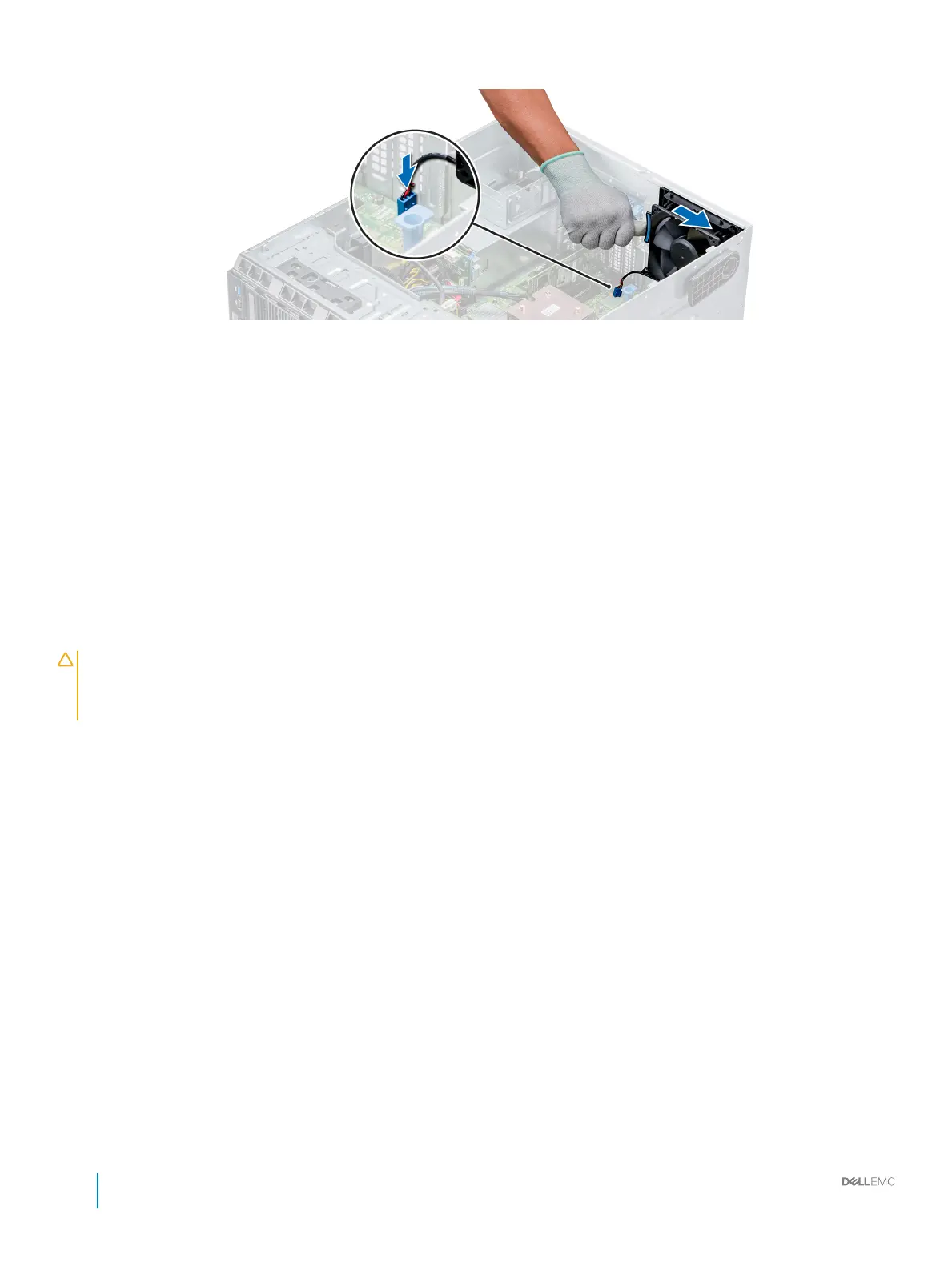

Figure 53. Installing the internal cooling fan
Next steps
1 Install the air shroud.
2 Follow the procedure listed in After working inside your system.
Related link
Removing the front bezel
Installing the air shroud
Removing the external cooling fan
Prerequisites
CAUTION
: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage
due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that are
shipped with your product.
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the air shroud.
Steps
1 Disconnect the external cooling fan power cable from the system board.
2 Remove the four screws that secure the external cooling fan to the chassis.
3 Lift the external cooling fan to disengage the upper and the lower hooks from the slots on the chassis wall and remove the cooling fan.
4 Remove the external cooling fan power cable from the slot on the system.
104
Installation and Service Manual
Installing and removing system components
