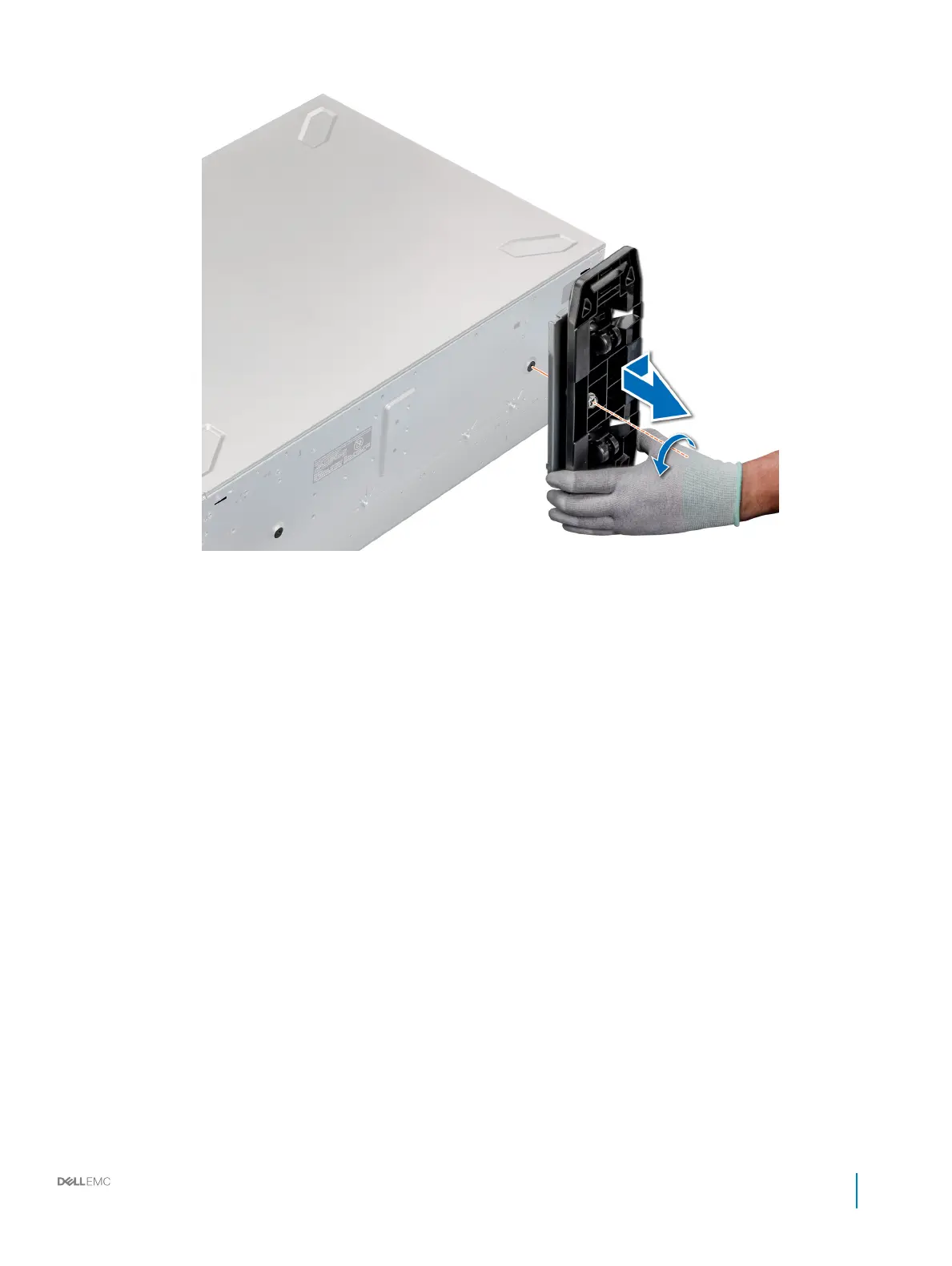

Figure 17. Removing caster wheels
Next step
Install the caster wheels or the system feet, as applicable.
Related link
Installing the system feet
Installing caster wheels
Installing caster wheels
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Place the system on its side on a at, stable surface.
3 If installed, remove the system feet.
Steps
1 Align the two retention hooks on the rear wheel unit with the two slots on the base of the system, and insert the hooks into the slots.
2 Push the rear wheel unit toward the back of the system and using a Phillips #2 screwdriver secure the unit in place using a single
screw.
3 Align the two retention hooks on the front wheel unit with the two slots on the base of the system, and insert the hooks into the slots.
4 Push the front wheel unit toward the front of the system and using a Phillips #2 screwdriver secure the unit in place using a single
screw.
Installation and Service Manual
Installing and removing system components
65
To Next Page
