Steps
1 Disconnect all the power cables from the power supply unit (PSU) .
2 Remove the screw securing the PSU to the chassis and slide the PSU out of the PSU cage.

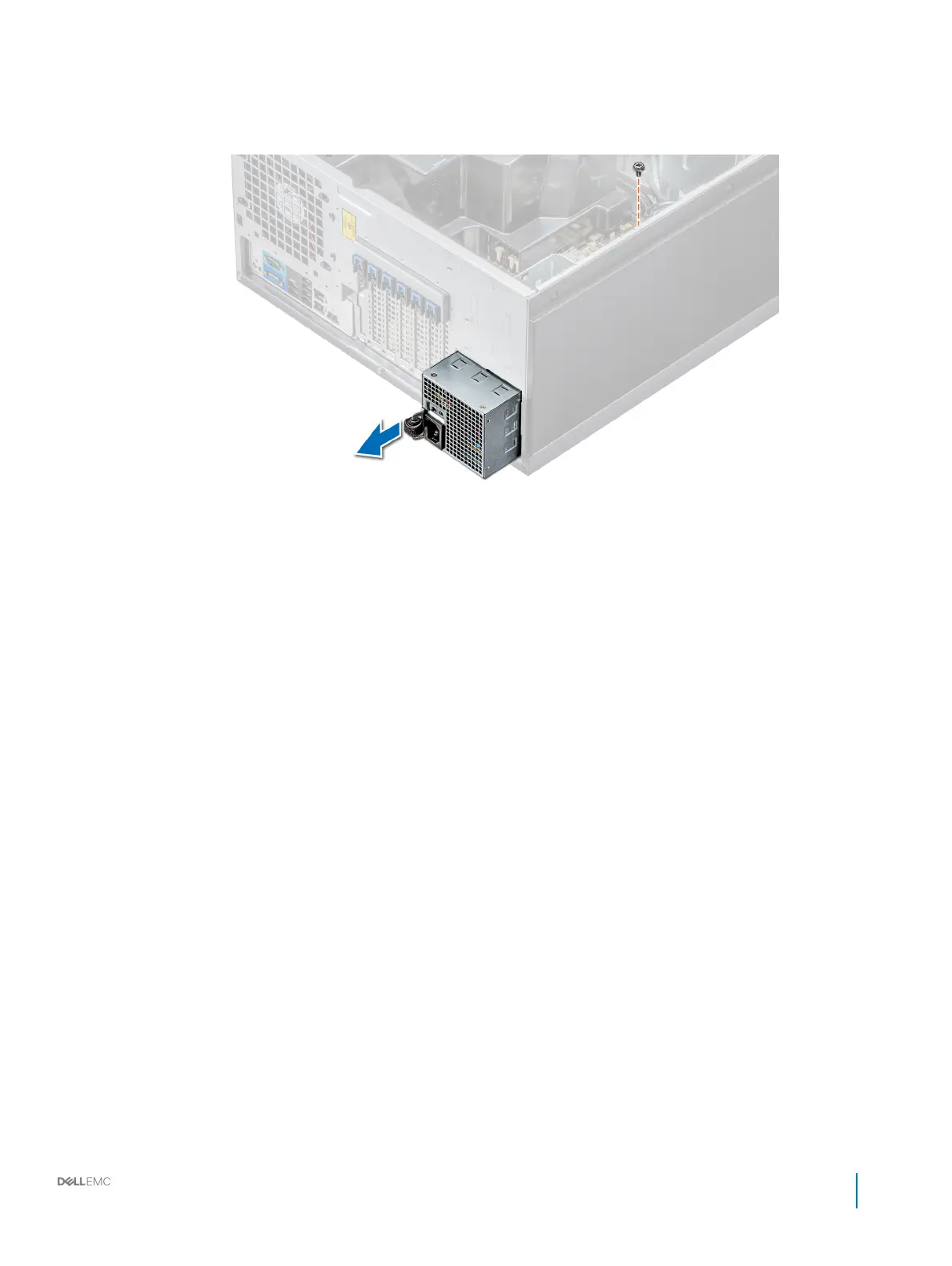

Figure 75. Removing a cabled PSU
Next steps
1 Install a cabled PSU.
2 Follow the procedure listed in After working inside your system.
Related link
Installing a cabled power supply unit
Installing a cabled power supply unit
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Unpack the replacement power supply unit (PSU).
Steps
1 Slide the new PSU into the PSU cage until the PSU is fully seated.
2 Tighten the screw to secure the PSU to the chassis.
3 Connect all the power cables from the PSU to the system board, drive backplane, and drives.
Installation and Service Manual
Installing and removing system components
127
