Removing the optional IDSDM or vFlash card
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the air shroud.
Steps
1 Locate the IDSDM/vFlash connector on the system board.
To locate IDSDM/vFlash, see the System board jumpers and connectors section.
2 Holding the pull tab, lift the IDSDM/vFlash card out of the system.

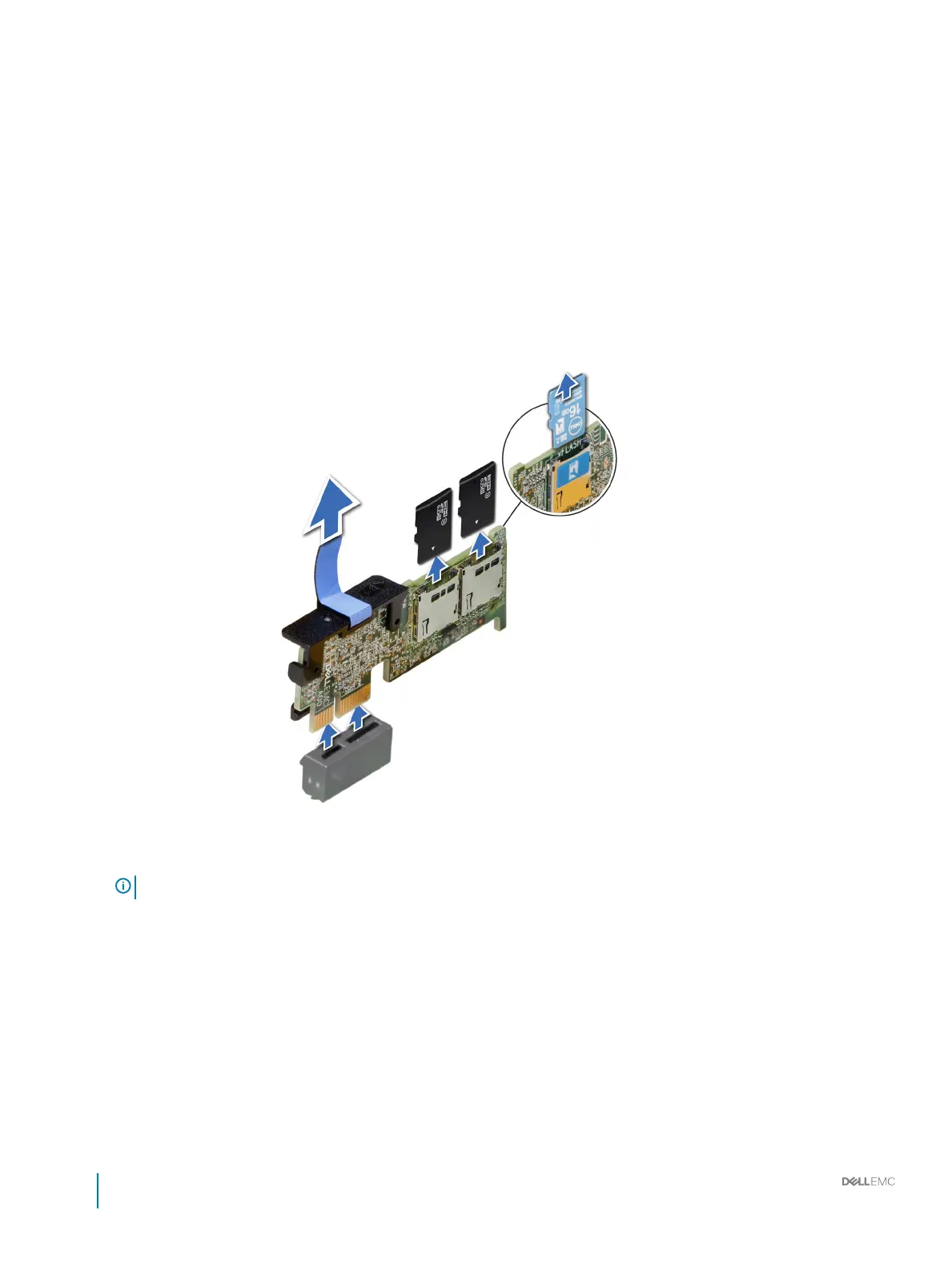

Figure 62. Removing the optional IDSDM/vFlash card
NOTE
: There are two dip switches on the IDSDM/vFlash card for write-protection.
Next step
Install the optional IDSDM/vFlash card.
Related link
System board jumpers and connectors
Removing the air shroud
Installing optional IDSDM or vFlash card
Installing optional IDSDM or vFlash card
Prerequisite
Follow the safety guidelines listed in Safety instructions.
114
Installation and Service Manual
Installing and removing system components
