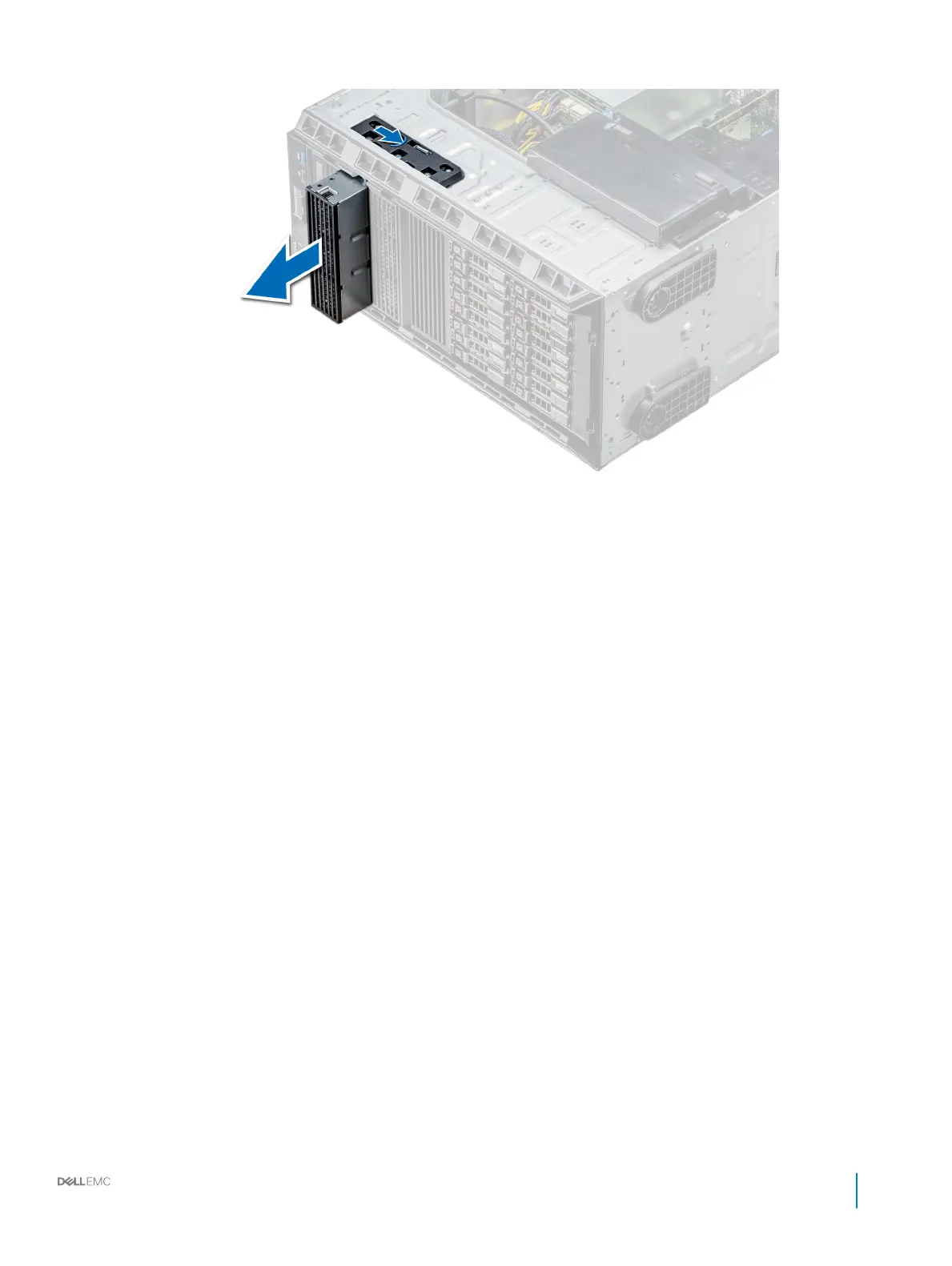

Figure 33. Removing the optical drive or tape drive blank
Next steps
1 Install the drive blank, an optical drive, or a tape drive.
2 If applicable, replace the front bezel.
Related link
Installing a drive blank
Installing the optical drive cage or tape drive
Removing the front bezel
Installing the front bezel
Installing the optical or tape drive blank
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 If applicable, remove the front bezel.
Steps
1 Align the guide on the drive blank with the slot on drive bay.
2 Slide the drive into the slot until the latch snaps into place.
Installation and Service Manual
Installing and removing system components
81
