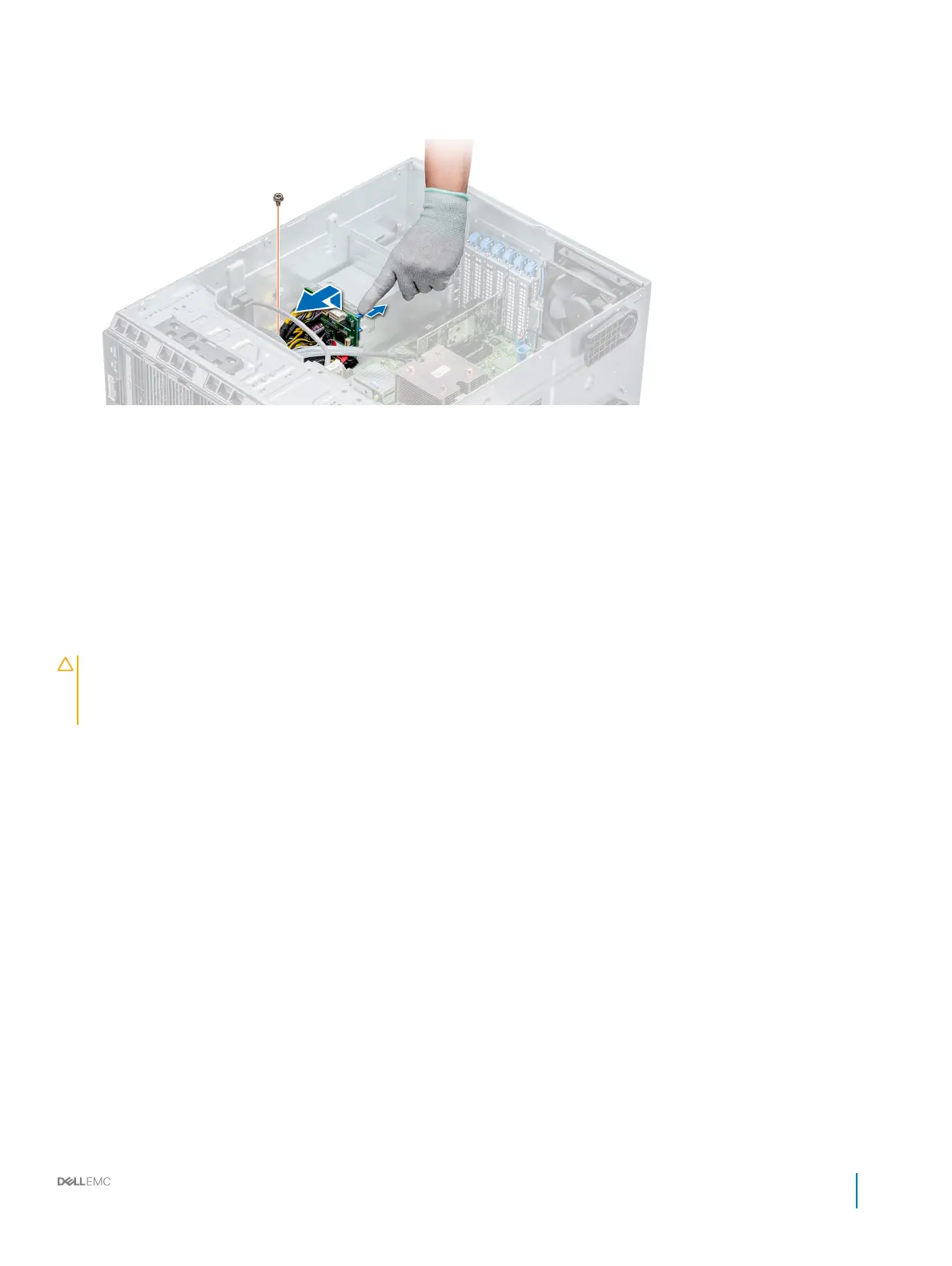

Figure 77. Removing the power interposer board
Next step
Follow the procedure listed in After working inside your system.
Related link
Removing a power supply unit blank
Removing a power supply unit
Removing the air shroud
Installing the power interposer board
Prerequisite
CAUTION
: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage
due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that are
shipped with your product.
Follow the safety guidelines listed in Safety instructions.
Steps
1 Align the slots on the power interposer board (PIB) with the hooks on the power supply unit (PSU) cage and slide the PIB until it
snaps into place.
2 Secure the PIB to the chassis by using the screw.
3 Route the P3 power cable through the securing clip on the system board and connect power cable to the drive backplane.
Figure 78. Installing the power interposer board
Installation and Service Manual
Installing and removing system components
129
To Next Page
