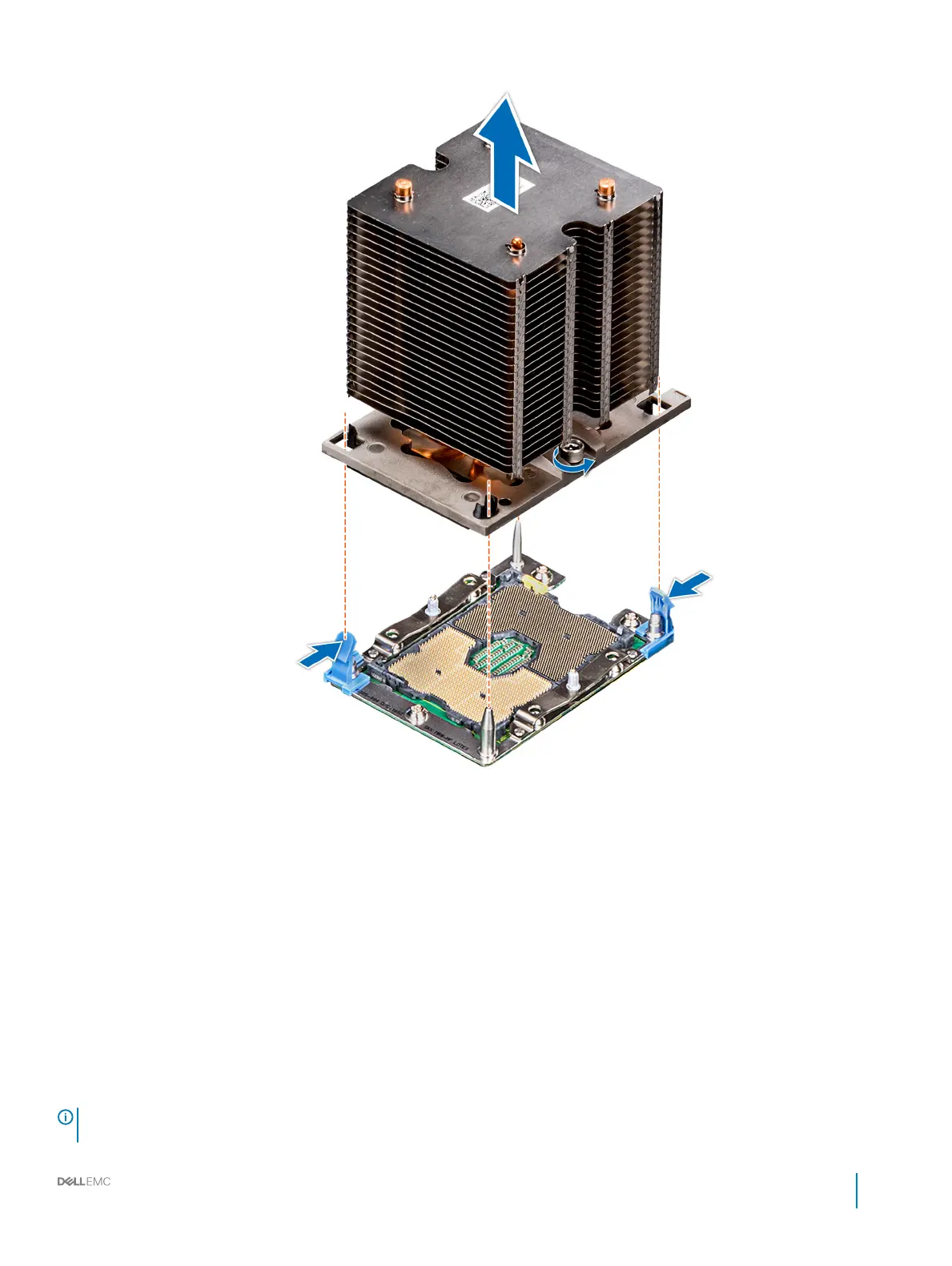

Figure 64. Removing the processor and heat sink module
Next step
Install the PHM.
Related link
Removing the air shroud
Installing a processor and heat sink module
Removing the processor from the processor and heat sink
module
Prerequisites
NOTE
: Only remove the processor from the processor and heat sink module if you are replacing the processor or heat sink. This
procedure is not required when replacing a system board.
Installation and Service Manual
Installing and removing system components
117
