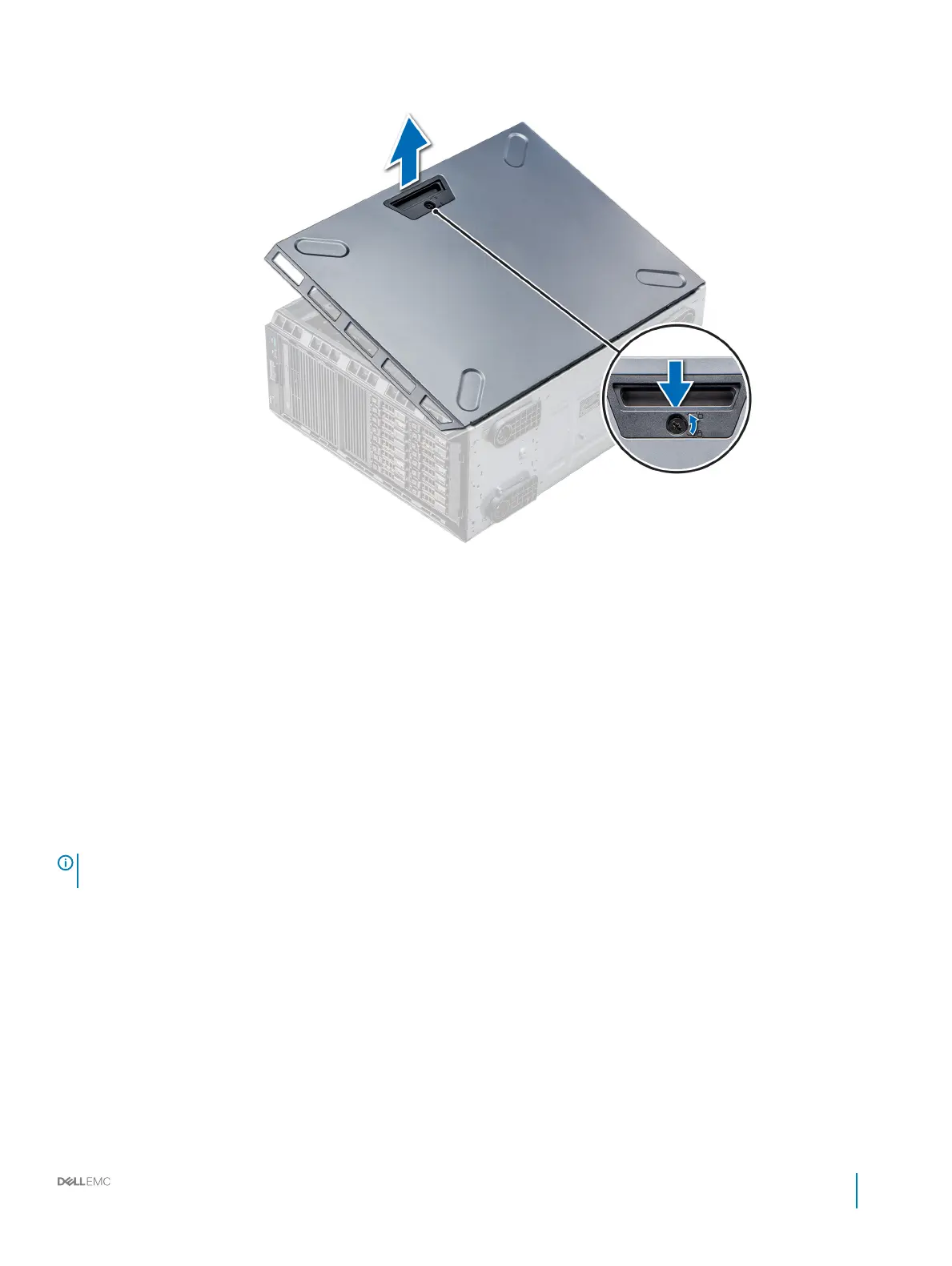

Figure 19. Removing the system cover
Next step
Install the system cover.
Related link
Removing the front bezel
Installing the system cover
Installing the system cover
Prerequisite
NOTE
: Ensure that all internal cables are connected and placed out of the way and no tools or extra parts are left inside the
system.
Follow the safety guidelines listed in Safety instructions.
Steps
1 Align the tabs on the system cover with the slots on the chassis.
2 Press the cover release latch, and push the cover toward the chassis until the latch locks into place.
3 Rotate the latch release lock clockwise to the locked position.
