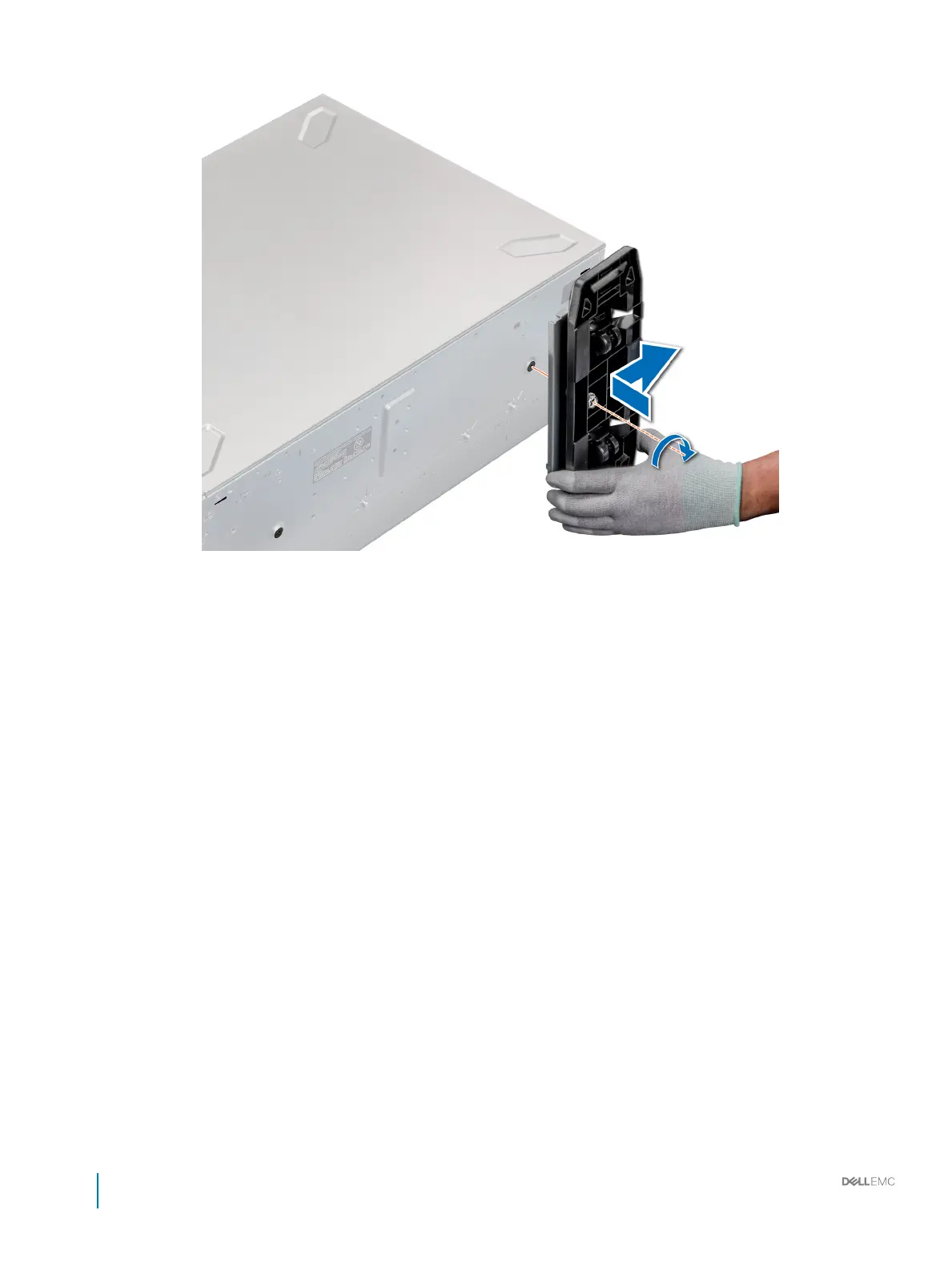

Figure 18. Installing caster wheels
Next step
Follow the procedure listed in After working inside your system.
Related link
Removing the system feet
System cover
System cover provides security for the entire system and also helps in maintaining proper air ow inside the system.
Removing the system cover
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Turn o the system and all attached peripherals.
3 Disconnect the system from the electrical outlet and peripherals.
4 If installed, remove the front bezel.
5 Place the system on a at, stable surface.
Steps
1 Turn the latch release lock to the unlocked position.
2 Press the cover release latch and remove the system cover.
66
Installation and Service Manual
Installing and removing system components
