Next steps
1 Follow the procedure listed in After working inside your system.
2 While booting, press F2 to enter System Setup and verify that the system detects the USB memory key.
Related link
Optional internal USB memory key
Expansion card holder
Removing the expansion card holder
Prerequisites
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage
due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that are
shipped with your product.
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the air shroud.
Step
Press the tab and remove the expansion-card holder from the chassis.

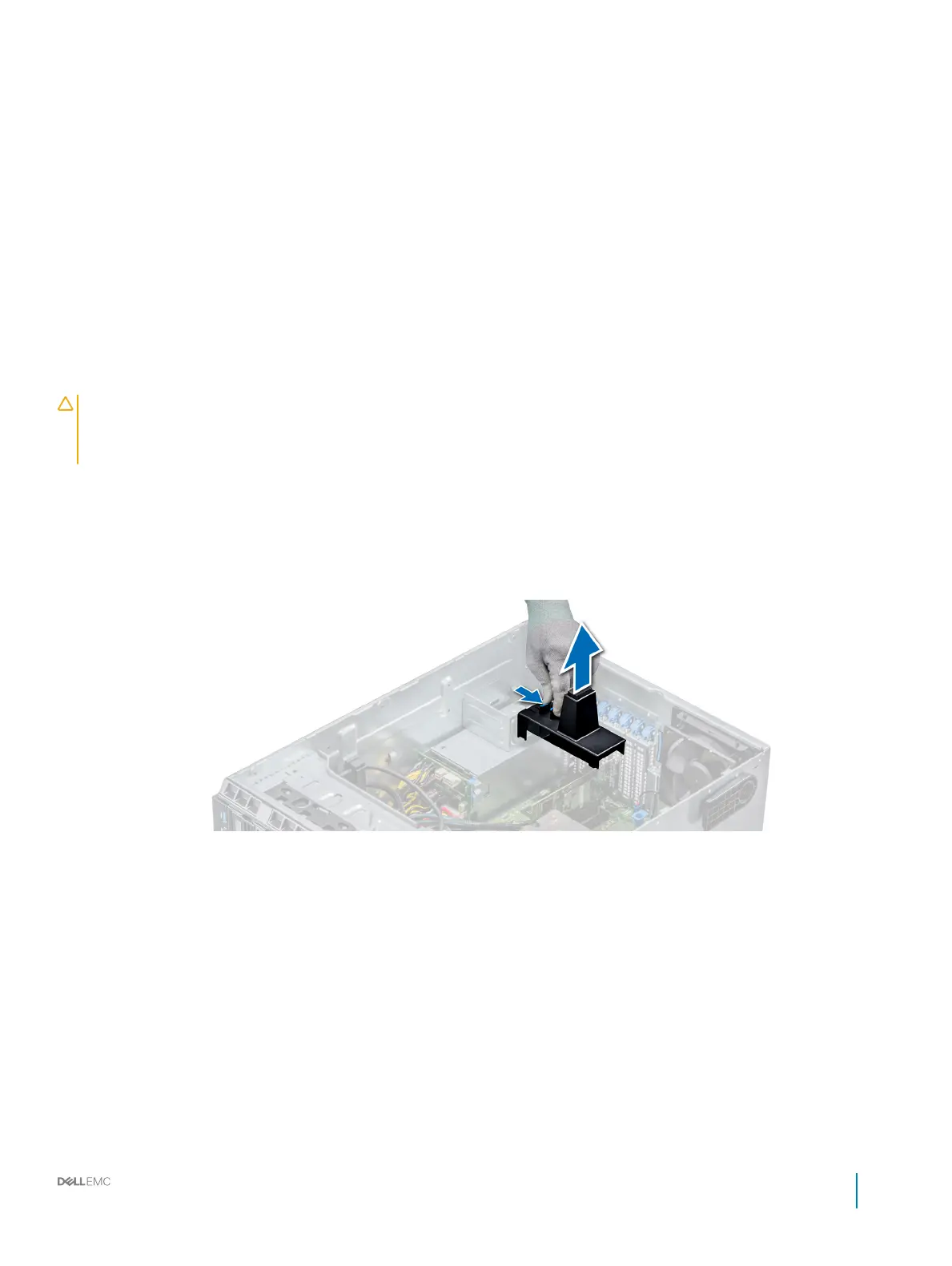

Figure 56. Removing the expansion card holder
Next steps
1 Follow the procedure listed in After working inside your system.
2 Install the air shroud.
Related link
Installing the air shroud
Installing the air shroud
Installation and Service Manual
Installing and removing system components
107
