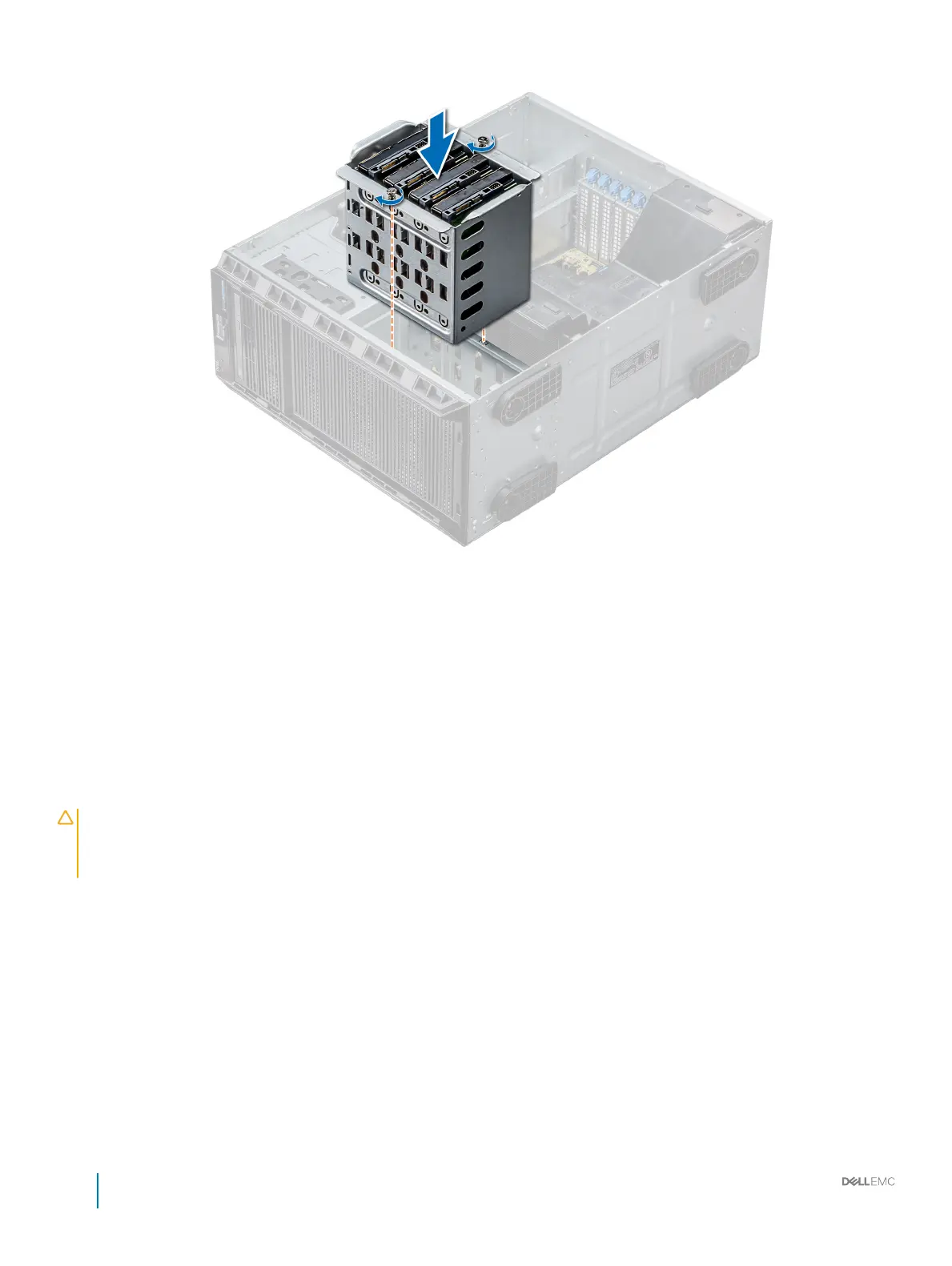

Figure 38. Installing the internal hard drive bay
Next steps
1 Follow the procedure listed in After working inside your system.
2 Connect the data and power cables to the hard drive(s).
Removing a cabled drive
Prerequisites
CAUTION
: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage
due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that are
shipped with your product.
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the internal drive bay.
Steps
1 Remove the four screws securing the drive to the internal drive bay.
2 Remove the hard drive from the internal drive bay.
86
Installation and Service Manual
Installing and removing system components
