Replacing the Trusted Platform Module
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
NOTE:
• Ensure that your operating system supports the version of the TPM module being installed.
• Ensure that you download and install the latest BIOS rmware on your system.
• Ensure that the BIOS is congured to enable UEFI boot mode.
Steps
1 Locate the TPM connector on the system board.
NOTE: To locate the TPM connector on the system board, see the System board jumpers and connectors section.
2 Press to hold the module down and remove the screw using the security Torx 8-bit shipped with the TPM module.
3 Slide the TPM module out from its connector.
4 Push the plastic rivet away from the TPM connector and rotate it 90° counterclockwise to release it from the system board.
5 Pull the plastic rivet out of its slot on the system board.
6 To install the TPM, align the edge connectors on the TPM with the slot on the TPM connector.
7 Insert the TPM into the TPM connector such that the plastic rivet aligns with the slot on the system board.
8 Press the plastic rivet until the rivet snaps into place.

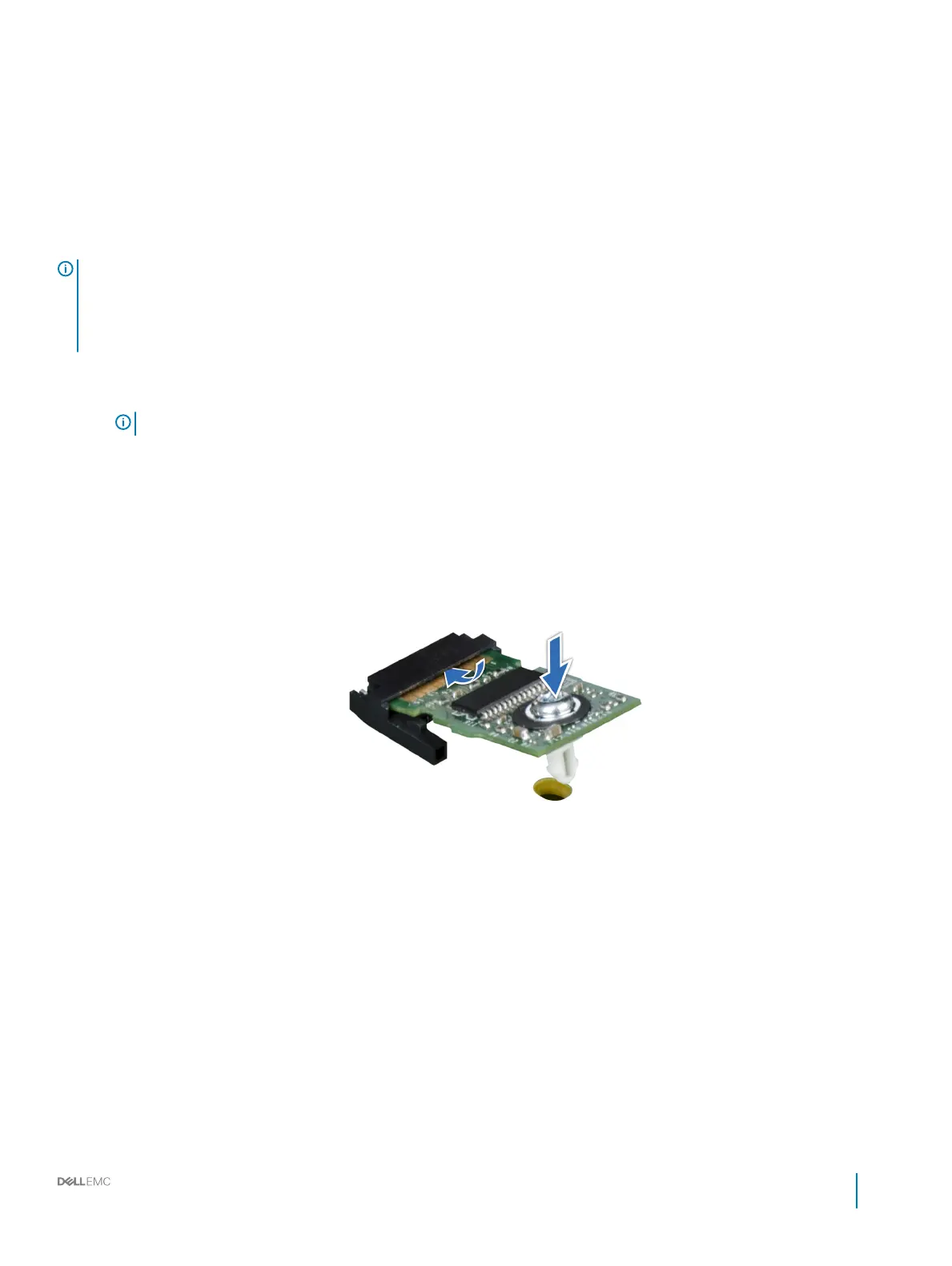

Figure 87. Installing the TPM
Next steps
1 Install the system board.
2 Follow the procedure listed in After working inside your system.
Related link
Installing the system board
Initializing TPM for BitLocker users
Initialize the TPM.
For more information, see http://technet.microsoft.com/en-us/library/cc753140.aspx.
Installation and Service Manual
Installing and removing system components
139
