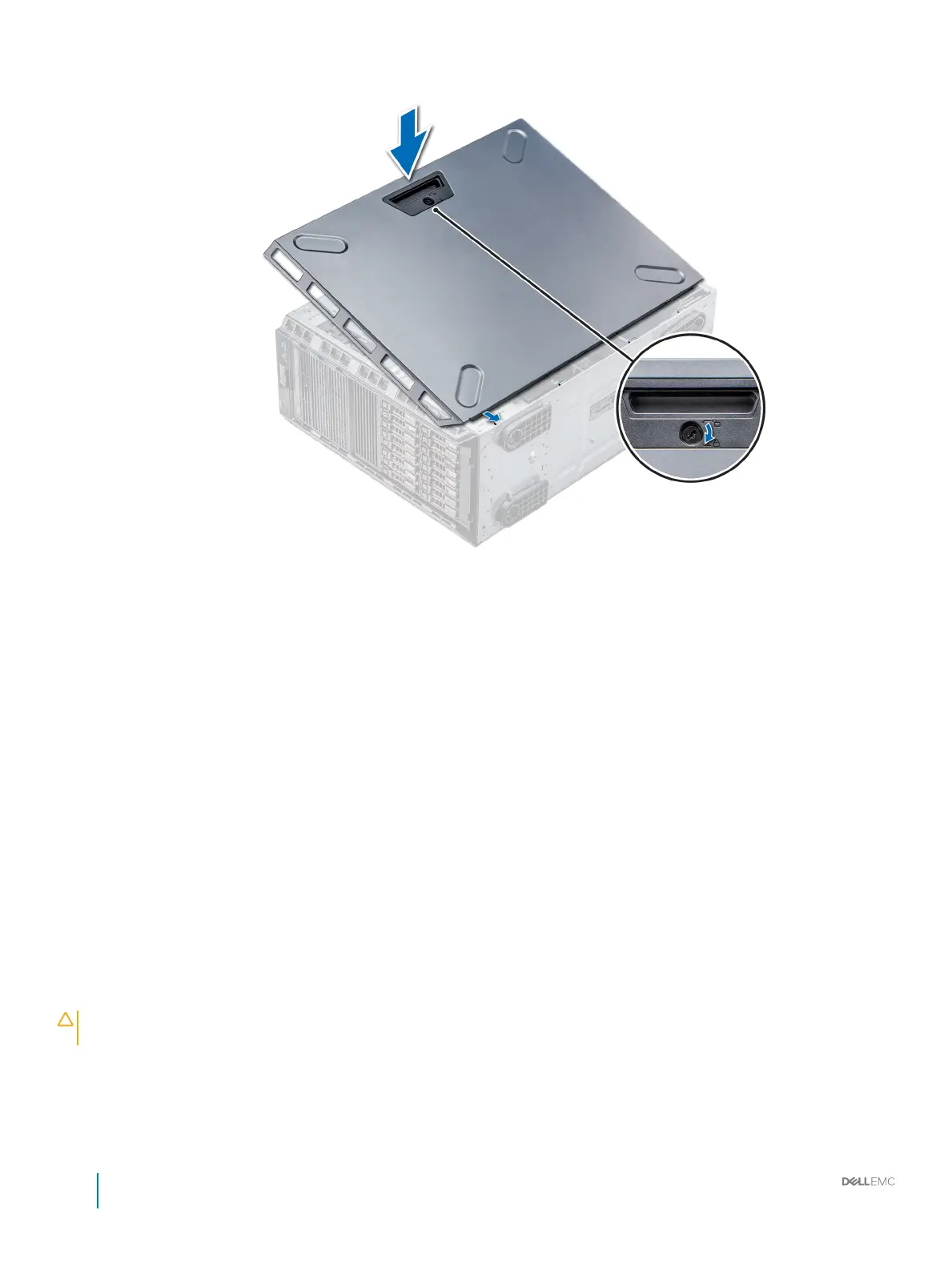

Figure 20. Installing the system cover
Next steps
1 Place the system upright on its feet on a at and stable surface.
2 If removed, install the bezel.
3 Reconnect the peripherals and connect the system to the electrical outlet.
4 Turn on the system, including all attached peripherals.
Related link
Installing the front bezel
Air shroud
The air shroud directs the airow across the entire system. Air shroud prevents the system from overheating and is used to maintain
uniform airow inside the system.
Removing the air shroud
Prerequisites
CAUTION
: Never operate your system with the air shroud removed. The system may get overheated quickly, resulting in
shutdown of the system and loss of data.
1
Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
Step
Holding the touch points at the center of the air shroud, lift the shroud from the system.
68
Installation and Service Manual
Installing and removing system components
