Dell EMC PowerEdge C6420 User Manual

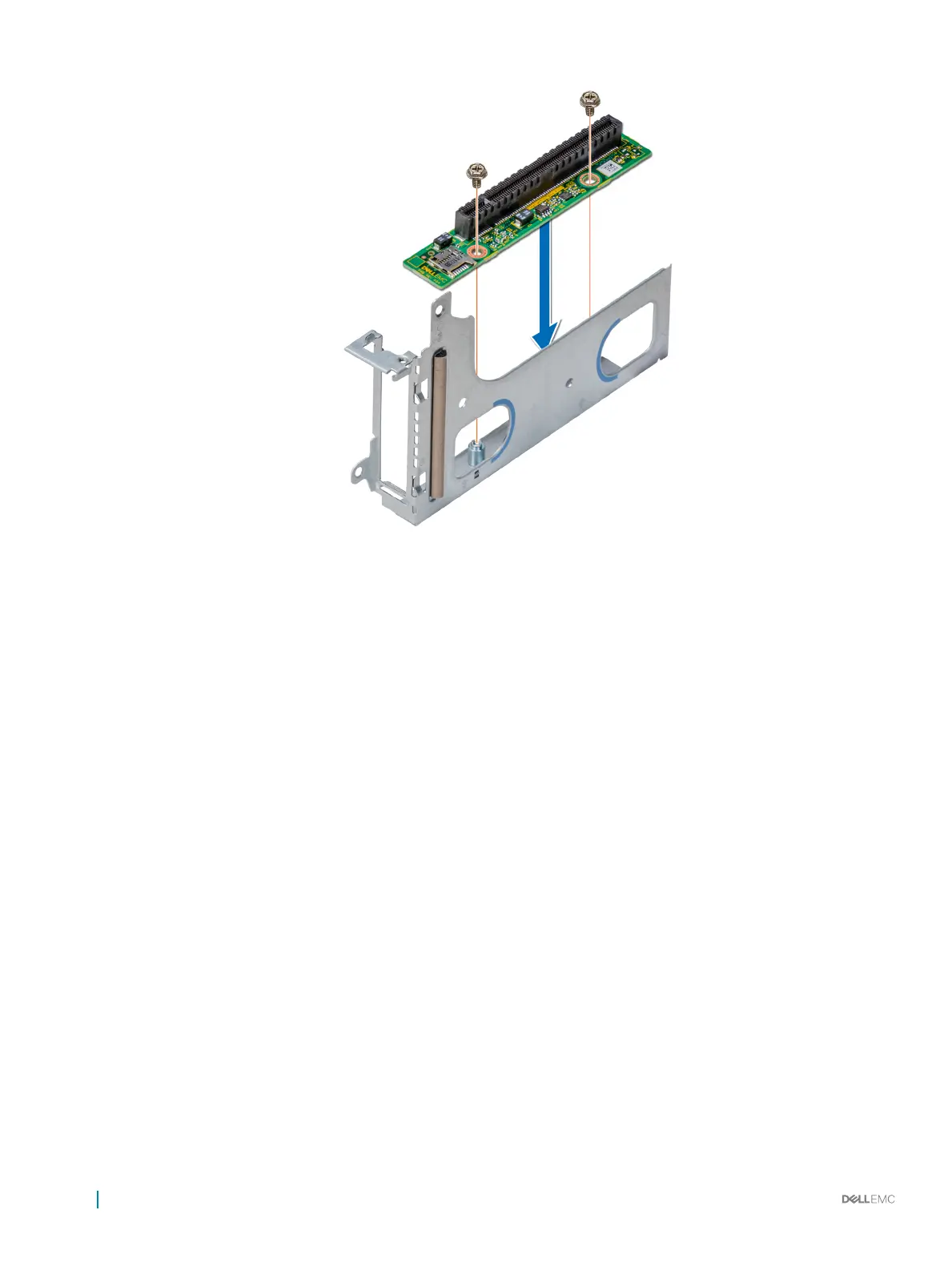

Figure 48. Installing the riser card
Next steps
1 If removed, install the expansion card.
2 Install the expansion card riser assembly.
3 Install the sled into the enclosure.
4 Follow the procedure listed in After working inside your system.
Related link
Installing an expansion card
Installing the expansion card riser assembly
Installing a sled
Removing the M.2 SATA x16 riser
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the sled from the enclosure.
Steps
1 Using the Phillips #1 screwdriver, loosen the screw that secures the riser to the sled.
2 Lift the riser up to disengage the riser from the connector on the system board.
3 Disconnect the data cable from the riser.
102
Installing and removing system components

Dell EMC PowerEdge C6420 Specifications

General

Processor	Intel Xeon Scalable processors
Management	iDRAC9
Max Processors	2 per node
Memory	DDR4
Storage	Up to 6 x 2.5" drives
Drive Bays	24 x 2.5" or 12 x 3.5"
Network	2 x 10GbE ports per sled
Power Supply	Dual, 2000W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Maximum RAM	Up to 3TB per node
Max Memory	Up to 3TB per node
