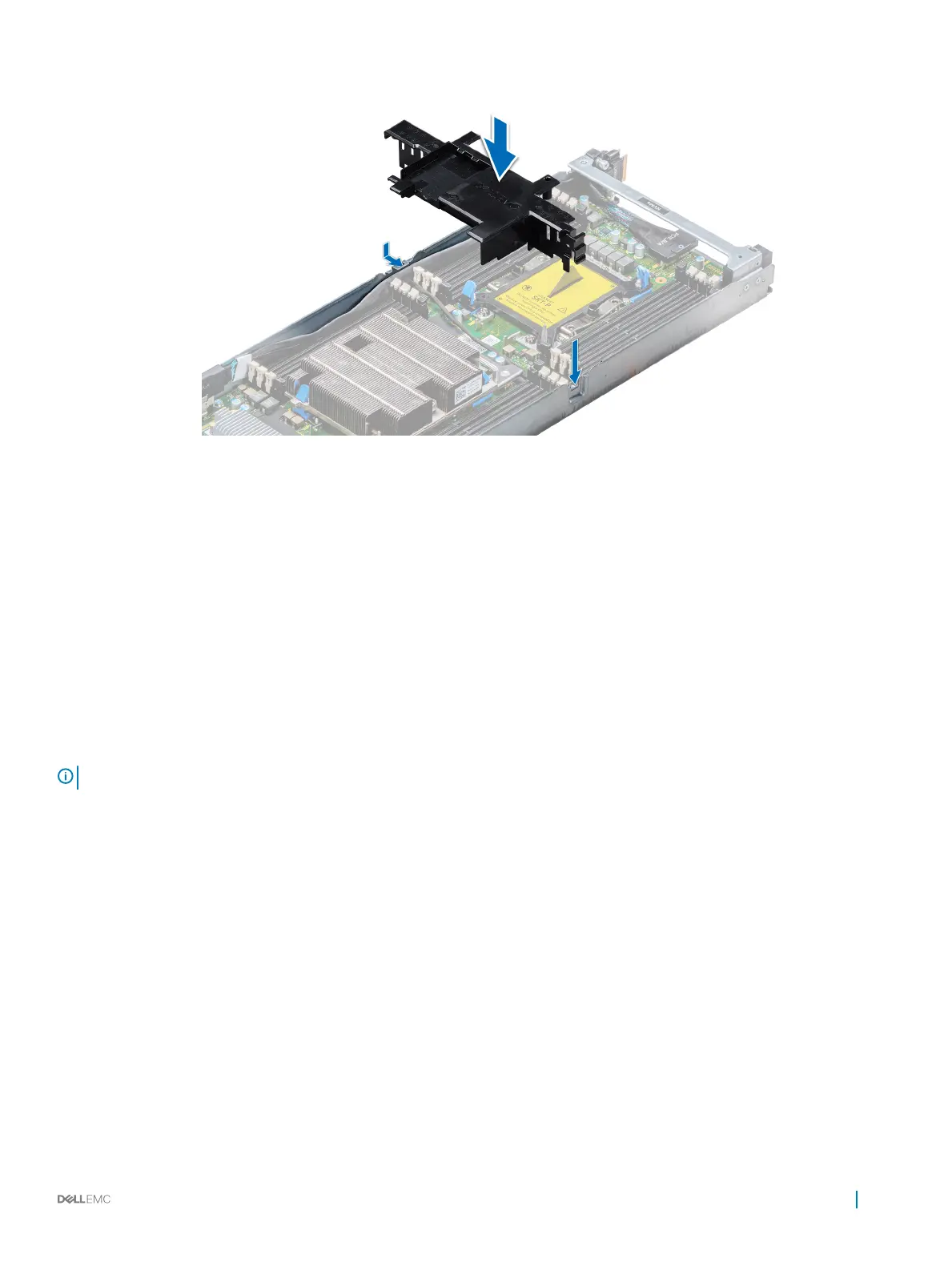

Figure 19. Installing the air shroud
Next steps
1 If disconnected, reconnect the battery cable to the PERC card.
2 Install the sled into the enclosure.
3 Follow the procedure listed in After working inside your system.
Related link
Installing a sled
System memory
The system supports DDR4 registered DIMMs (RDIMMs) and load reduced DIMMs (LRDIMMs). System memory holds the instructions
that are executed by the processor.
NOTE
: MT/s indicates DIMM speed in MegaTransfers per second.
Memory bus operating frequency can be 2666 MT/s, 2400 MT/s, or 2133 MT/s depending on the following factors:
• DIMM type (RDIMM or LRDIMM)
• Number of DIMMs populated per channel
• System prole selected (for example, Performance Optimized, or Custom [can be run at high speed or lower])
• Maximum supported DIMM frequency of the processors
Your system contains 16 memory sockets split into two sets of 8 sockets, one set per processor. Each 8-socket set is organized into
channels. In each channel, the release tabs of the rst socket are marked white, the second socket black.
