Dell EMC PowerEdge C6420 User Manual

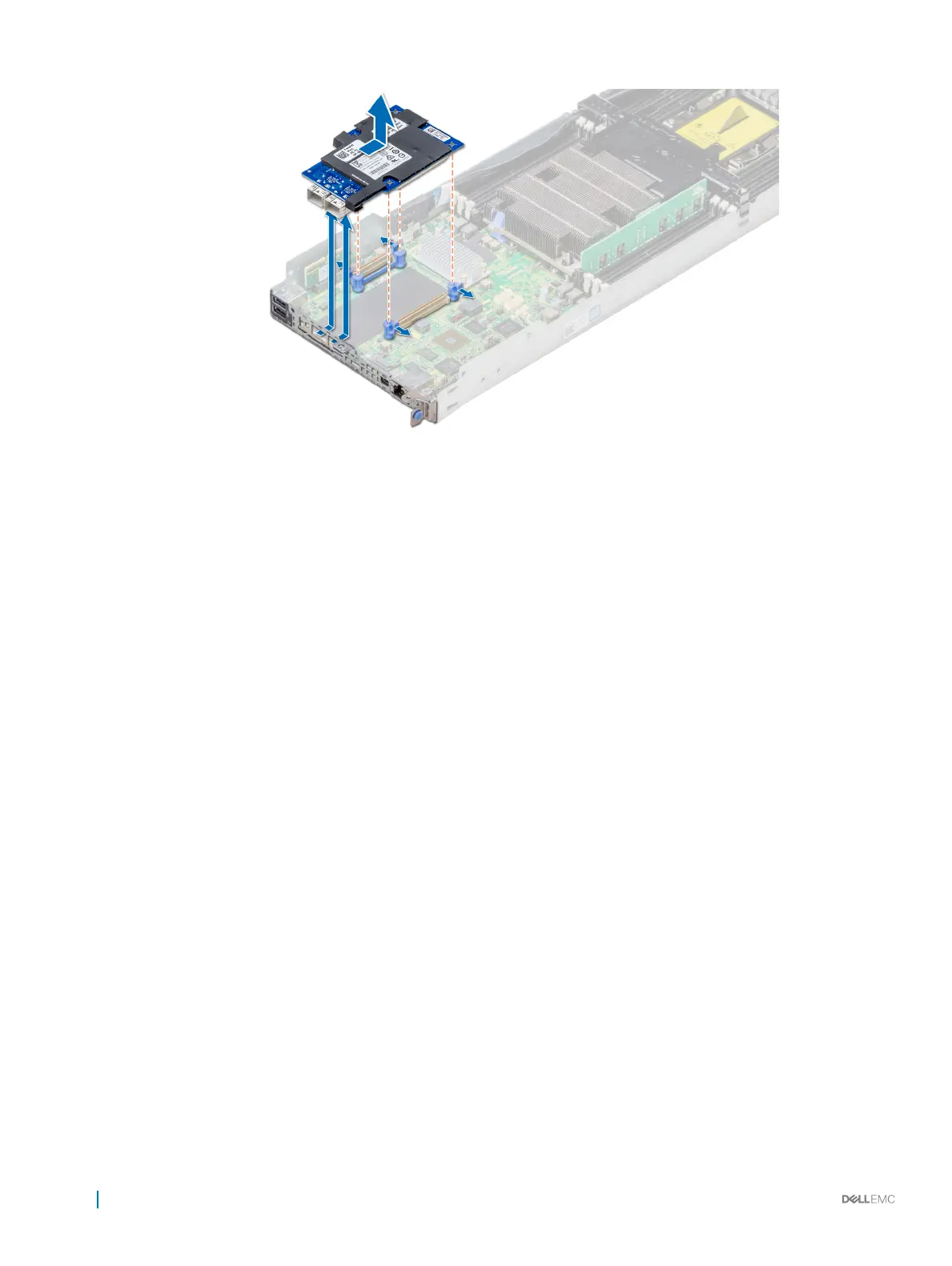

Figure 57. Removing the OCP card
Next step
Install the OCP card.
Related link
Removing a sled
Removing a mezzanine card
Installing the OCP card
Installing the OCP card
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Insert the Open Compute Project (OCP) card into the sled, aligning the connector on the card with the connector in the system
board.
2 You must also align the holes on the card with the guide pins on the blue retention clips.
3 Push down to lock the card in place.
112
Installing and removing system components

Dell EMC PowerEdge C6420 Specifications

General

Processor	Intel Xeon Scalable processors
Management	iDRAC9
Max Processors	2 per node
Memory	DDR4
Storage	Up to 6 x 2.5" drives
Drive Bays	24 x 2.5" or 12 x 3.5"
Network	2 x 10GbE ports per sled
Power Supply	Dual, 2000W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Maximum RAM	Up to 3TB per node
Max Memory	Up to 3TB per node
