Dell EMC PowerEdge C6420 User Manual

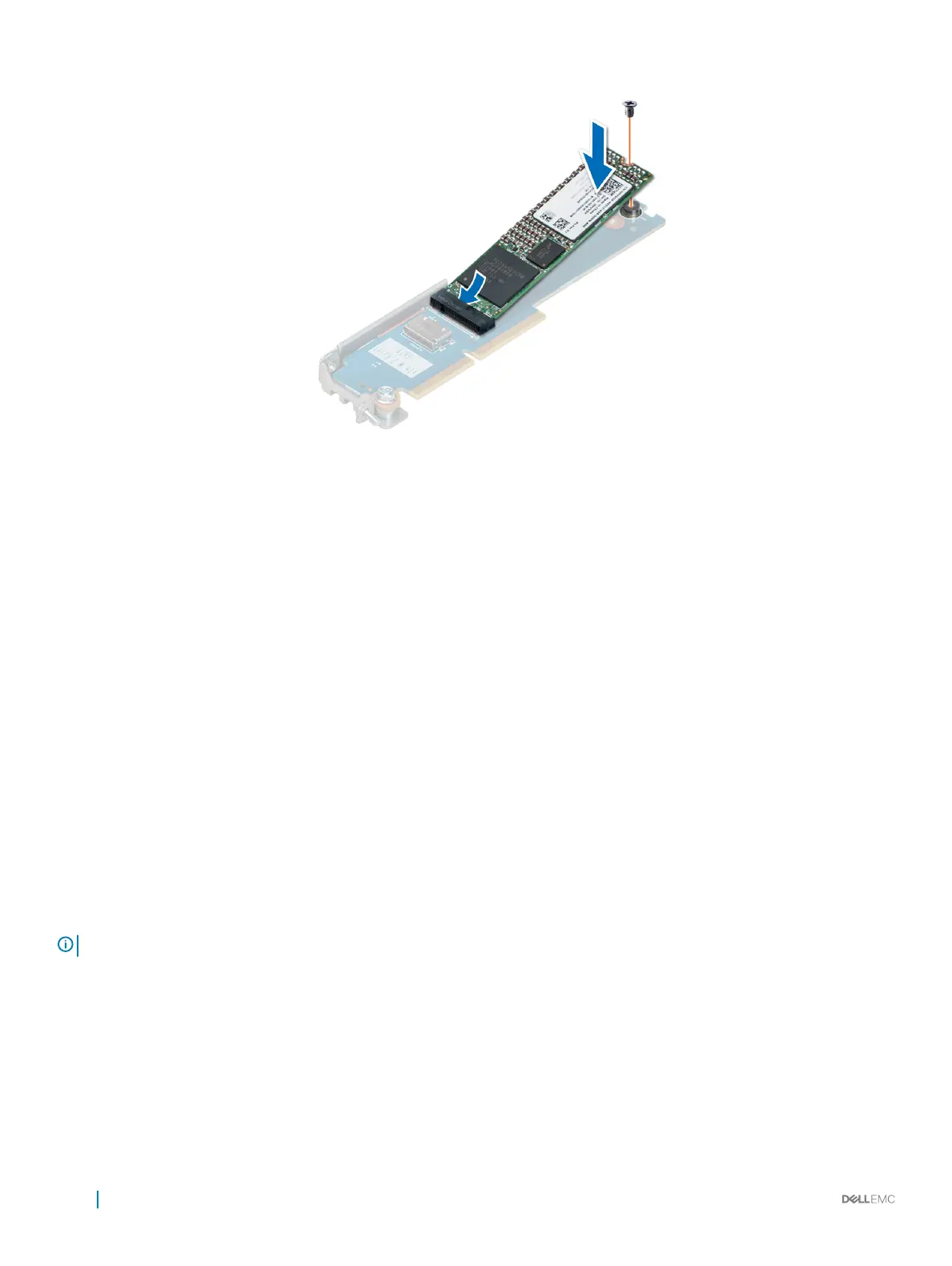

Figure 52. Installing the M.2 SATA card on the SATA x16 riser
Next steps
1 If removed, install the expansion card riser assembly.
2 Install the M.2 x16 riser.
3 Install the sled into the enclosure.
4 Follow the procedure listed in After working inside your system.
Related link
Installing the expansion card riser assembly
Installing the M.2 SATA x16 riser
Installing a sled
Mezzanine and OCP cards
The mezzanine and Open Compute Project (OCP) cards connect to the PCI bus. They are physically smaller than the standard expansion
card, and often connect to a dedicated connector on the system board.
Removing a mezzanine card
Prerequisites
NOTE
: The procedure to remove the mezzanine blank is similar to the removal of a mezzanine card.
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the sled from the enclosure.
4 Remove the expansion card riser assembly.
Steps
1 Remove the screws that secure the mezzanine card to the sled.
2 Lift the mezzanine card out of the sled.
106
Installing and removing system components

Dell EMC PowerEdge C6420 Specifications

General

Processor	Intel Xeon Scalable processors
Management	iDRAC9
Max Processors	2 per node
Memory	DDR4
Storage	Up to 6 x 2.5" drives
Drive Bays	24 x 2.5" or 12 x 3.5"
Network	2 x 10GbE ports per sled
Power Supply	Dual, 2000W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Maximum RAM	Up to 3TB per node
Max Memory	Up to 3TB per node
