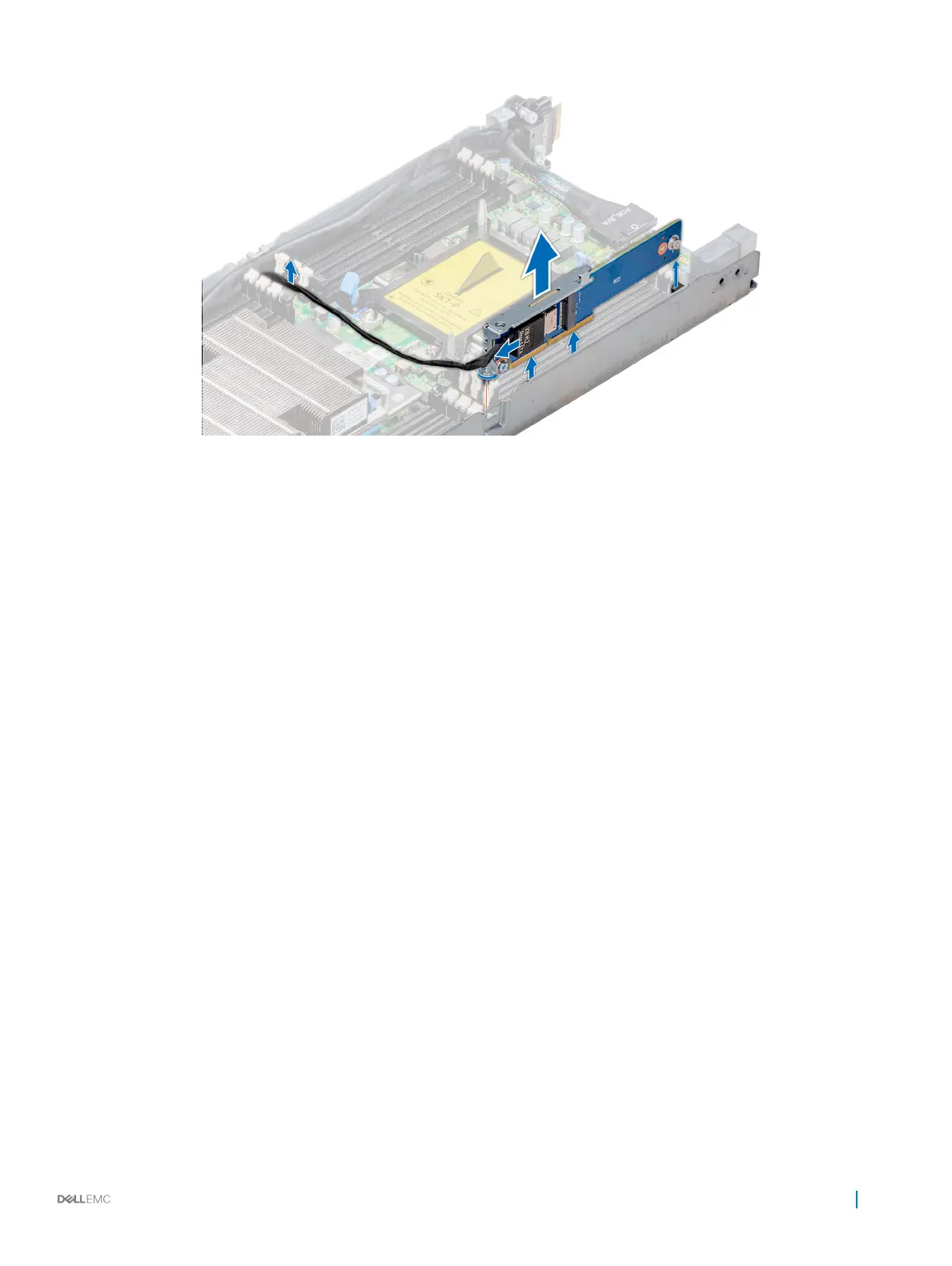

Figure 49. Removing the M.2 SATA x16 riser
Next step
Install the M.2 SATA x16 riser.
Related link
Removing a sled
Installing the M.2 SATA x16 riser
Installing the M.2 SATA x16 riser
Prerequisite
1 Follow the safety guidelines listed in Safety instructions.
Steps
1 Connect the data cable to the riser.
2 Insert the keyed end of the M.2 SATA riser into the lock on the system board.
3 Align and insert the edge connector into the connector on the system board.
4 Using the Phillips #2 screwdriver, tighten the screw to secure the riser to the sled.
Installing and removing system components
103

Dell EMC PowerEdge C6420 Specifications

General

Processor	Intel Xeon Scalable processors
Management	iDRAC9
Max Processors	2 per node
Memory	DDR4
Storage	Up to 6 x 2.5" drives
Drive Bays	24 x 2.5" or 12 x 3.5"
Network	2 x 10GbE ports per sled
Power Supply	Dual, 2000W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Maximum RAM	Up to 3TB per node
Max Memory	Up to 3TB per node
