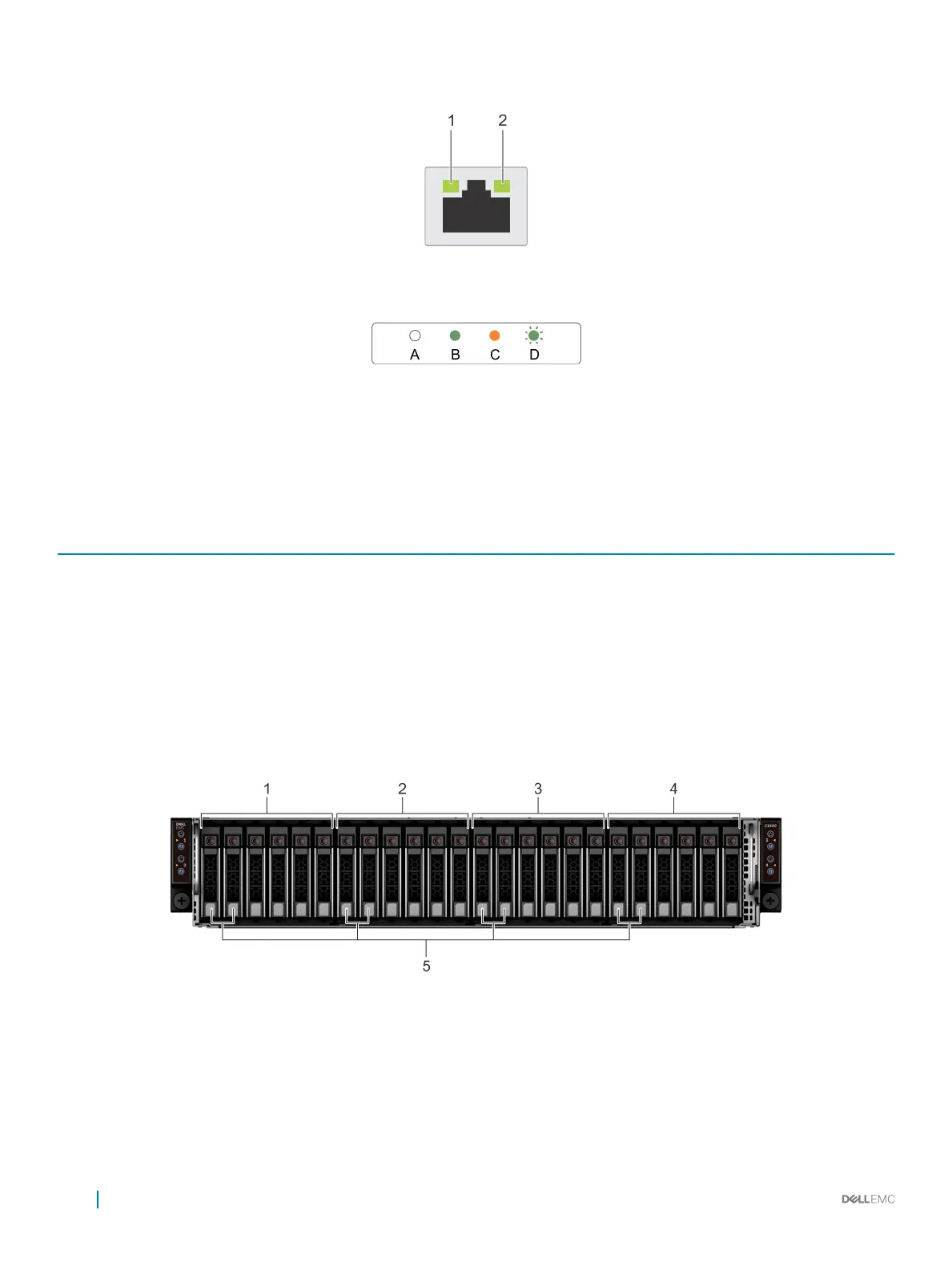

Figure 5. Ethernet port indicator codes
1 speed indicator 2 link and activity indicator
Table 3. Ethernet port indicator codes
Convention Status Condition
A Link and activity indicators are o The NIC is not connected to the network.
B Link indicator is green The NIC is connected to a valid network at its
maximum port speed.
C Link indicator is amber The NIC is connected to a valid network at less than
its maximum port speed.
D Activity indicator is ashing green Network data is being sent or received.
Sled to hard drive mapping
Figure 6. Sled to drive mapping for the enclosure with 24 x 2.5 inch drives
1
drives 0–5 mapped to sled 1 2 drives 6–11 mapped to sled 2
3 drives 12–17 mapped to sled 3 4 drives 18–23 mapped to sled 4
5 (optional) NVMe hard drive location
12 PowerEdge C6420 overview
