Dell EMC PowerEdge C6420 User Manual

Steps
1 Align the notches on the fabric connector with the guide pins on the processor base plate.
2 Push the connector toward the processor, until the connector is engaged with the edge connector on the processor.
3 Push the locking bar down to secure the fabric connector in place.
4 Insert the side band cable into the respective connector, and press down to lock the connector.

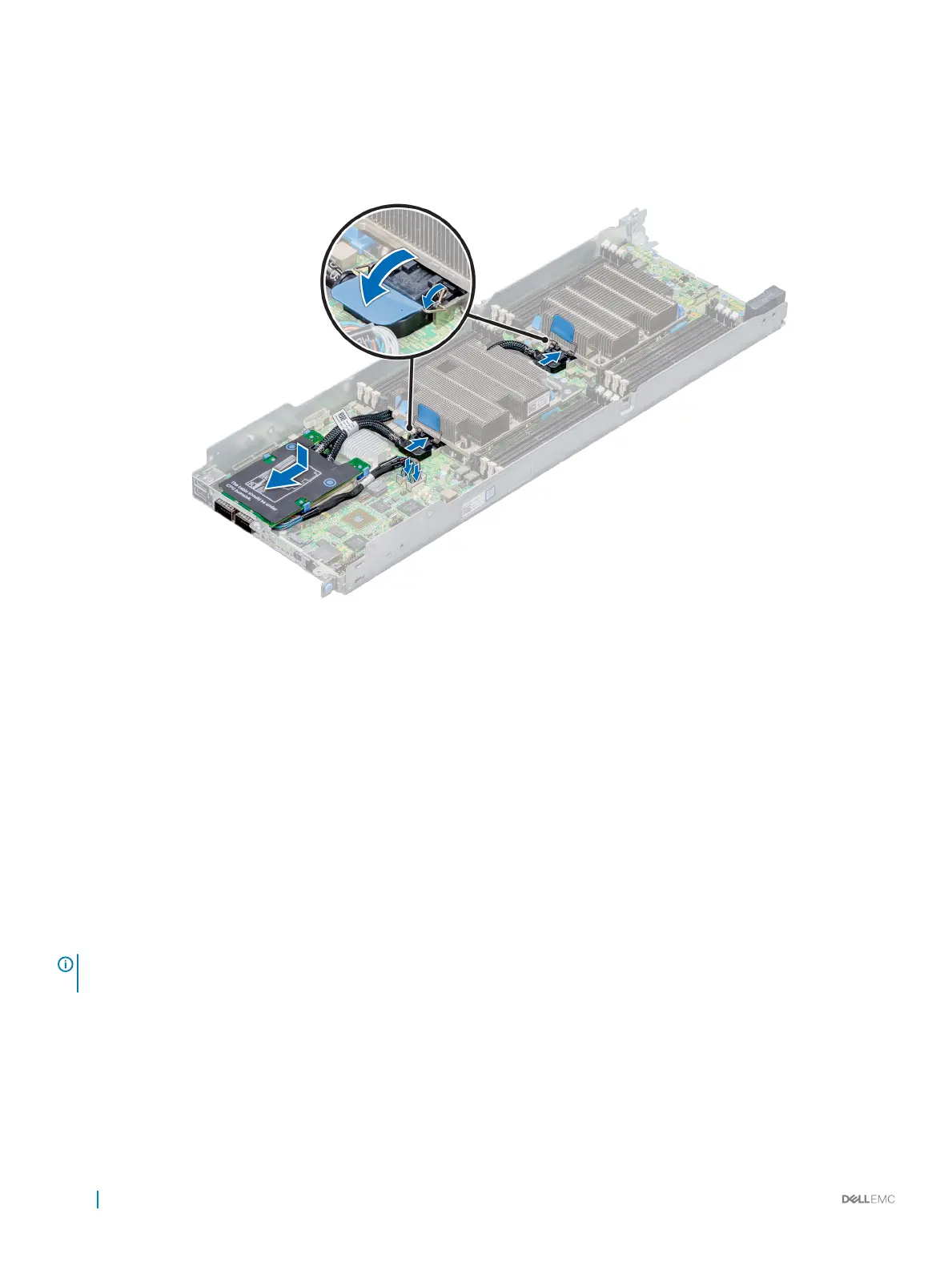

Figure 40. Installing the fabric and sideband cables
Next steps
1 Install the air shroud.
2 Install the sled into the enclosure.
3 Follow the procedure listed in After working inside your system.
Related link
Installing the air shroud
Installing a sled
Expansion cards
The expansion card in the system is a printed circuit board that can be inserted into an expansion slot on the system board riser card to add
functionality to the system through the expansion bus.
NOTE
: A missing or an unsupported expansion card riser logs an System Event Log (SEL) event. This does not prevent your
system from powering on and no BIOS, POST messages or F1 or F2 pause is displayed.
92 Installing and removing system components

Dell EMC PowerEdge C6420 Specifications

General

Processor	Intel Xeon Scalable processors
Management	iDRAC9
Max Processors	2 per node
Memory	DDR4
Storage	Up to 6 x 2.5" drives
Drive Bays	24 x 2.5" or 12 x 3.5"
Network	2 x 10GbE ports per sled
Power Supply	Dual, 2000W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Maximum RAM	Up to 3TB per node
Max Memory	Up to 3TB per node
