Removing a sled
Installing the expansion card riser assembly
Installing the expansion card riser assembly
Prerequisite
NOTE: You must install an expansion card ller bracket over an empty expansion slot to maintain Federal Communications
Commission (FCC) certication of the system. The brackets also keep dust and dirt out of the system and aid in proper cooling
and airow inside the system.
Follow the safety guidelines listed in Safety instructions.
Steps
1 Place the expansion card assembly into the system board assembly.
2 Align the riser card connector with the connector on the system board, and press the expansion card riser assembly into place.
3 Using the Phillips #2 screwdriver, tighten the screws that secure the expansion card riser assembly.

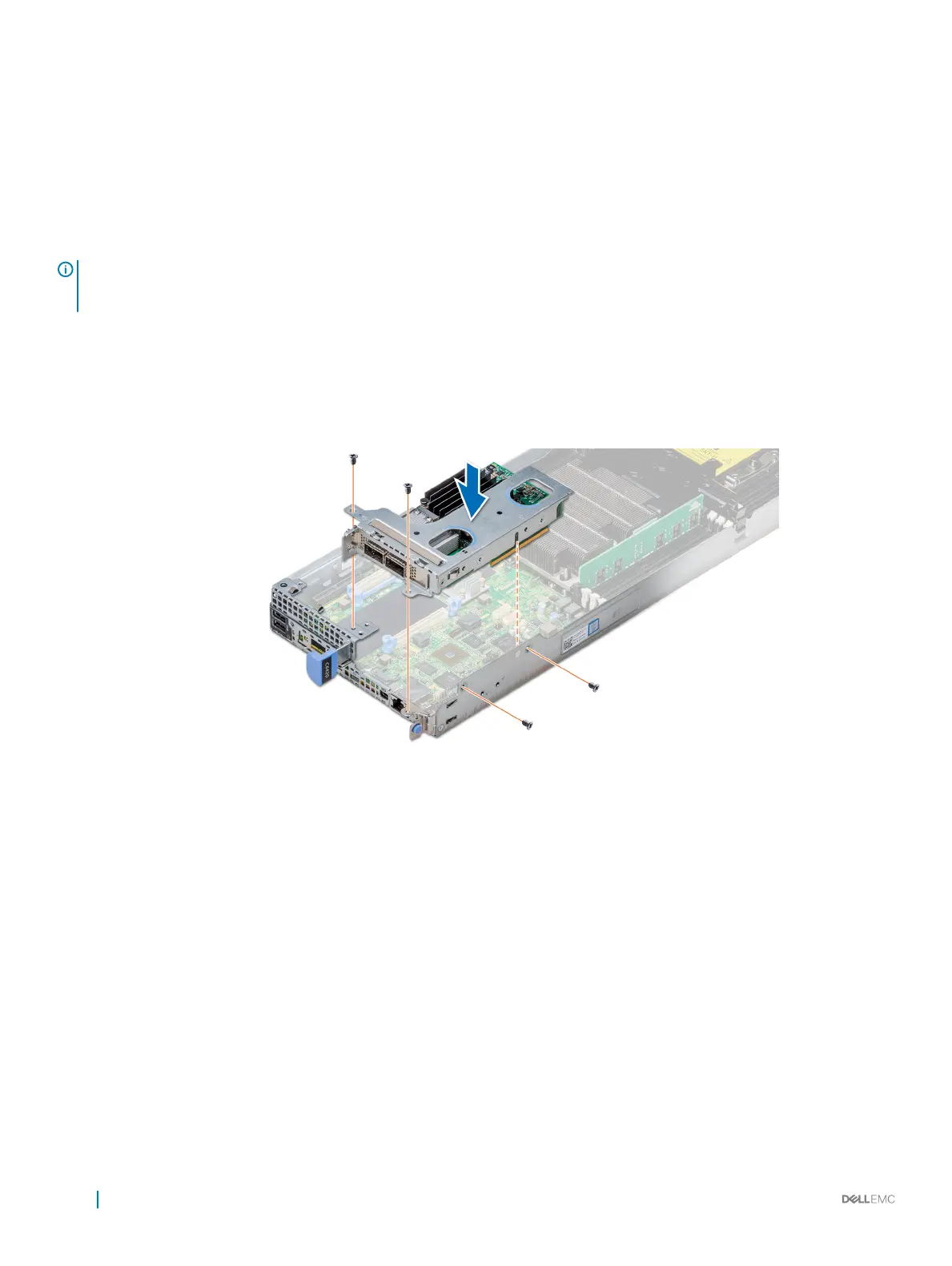

Figure 42. Installing the expansion card riser assembly
Next steps
1 Install the sled into the enclosure.
2 Follow the procedure listed in After working inside your system.
Related link
Installing a sled
Removing an expansion card
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the sled from the enclosure.
4 Remove the expansion card riser assembly.
96
Installing and removing system components

Dell EMC PowerEdge C6420 Specifications

General

Processor	Intel Xeon Scalable processors
Management	iDRAC9
Max Processors	2 per node
Memory	DDR4
Storage	Up to 6 x 2.5" drives
Drive Bays	24 x 2.5" or 12 x 3.5"
Network	2 x 10GbE ports per sled
Power Supply	Dual, 2000W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Maximum RAM	Up to 3TB per node
Max Memory	Up to 3TB per node
