Dell EMC PowerEdge C6420 User Manual

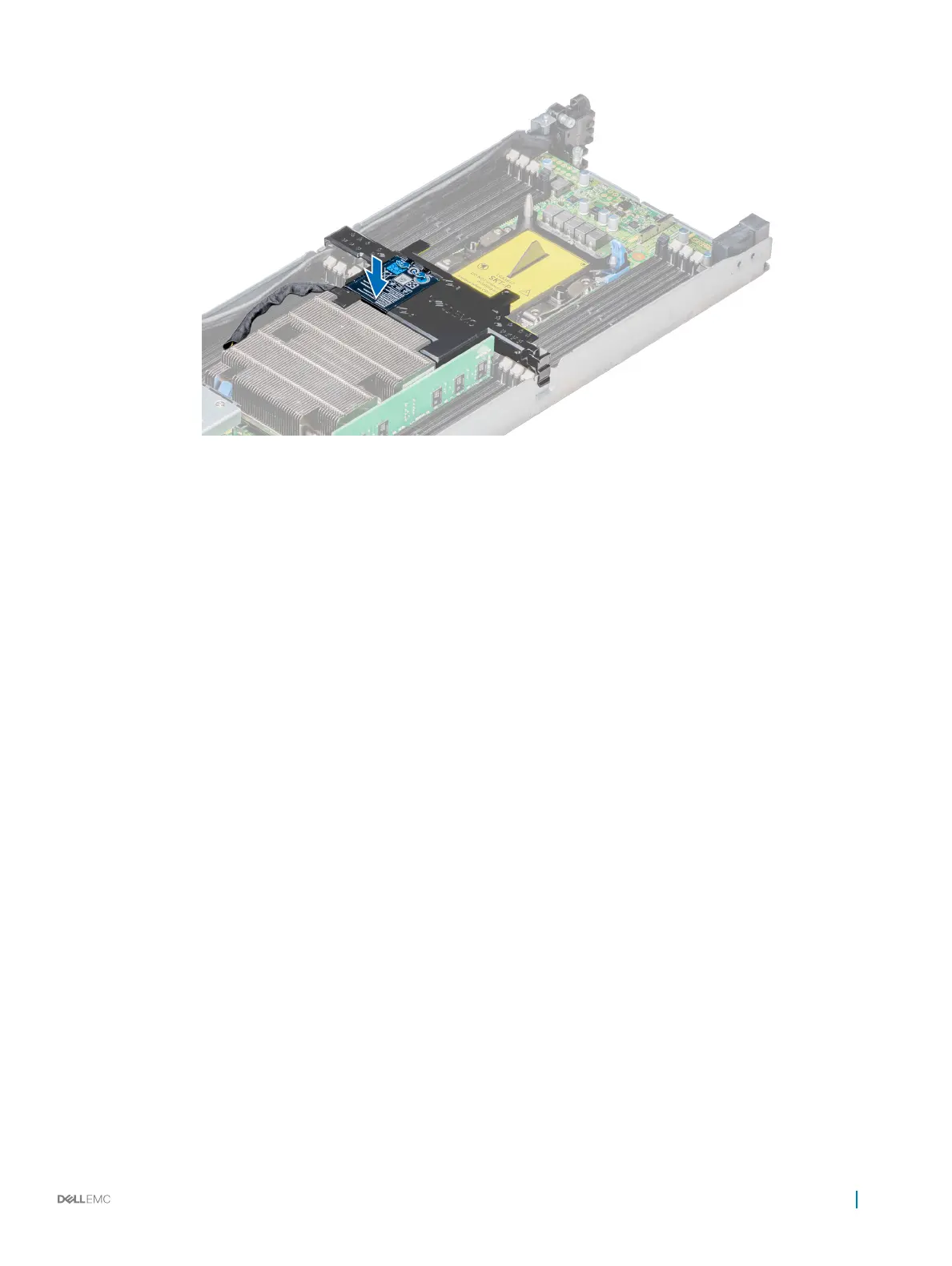

Figure 17. Installing the PERC battery
Next steps
1 If disconnected, reconnect the battery cable to the PERC card.
2 Install the sled into the enclosure.
3 Follow the procedure listed in After working inside your system.
Related link
Installing a sled
Air shroud
The air shroud aerodynamically directs the airow across the sled. The airow passes through all the critical parts of the sled, where the
fans push the air across the entire surface area of the heat sink. There is a vacuum created by air pulled across the hard drives, thus
allowing increased cooling.
Removing the air shroud
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the sled from the enclosure.
4 If applicable, disconnect the battery cable from the PERC card.
Steps
1 Press the clip on the air shroud to release the shroud from the sled.
2 Rotate the shroud up to release the shroud hinge from the slot and remove it.
Installing and removing system components
69

Dell EMC PowerEdge C6420 Specifications

General

Processor	Intel Xeon Scalable processors
Management	iDRAC9
Max Processors	2 per node
Memory	DDR4
Storage	Up to 6 x 2.5" drives
Drive Bays	24 x 2.5" or 12 x 3.5"
Network	2 x 10GbE ports per sled
Power Supply	Dual, 2000W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Maximum RAM	Up to 3TB per node
Max Memory	Up to 3TB per node
