Dell EMC PowerEdge C6420 User Manual

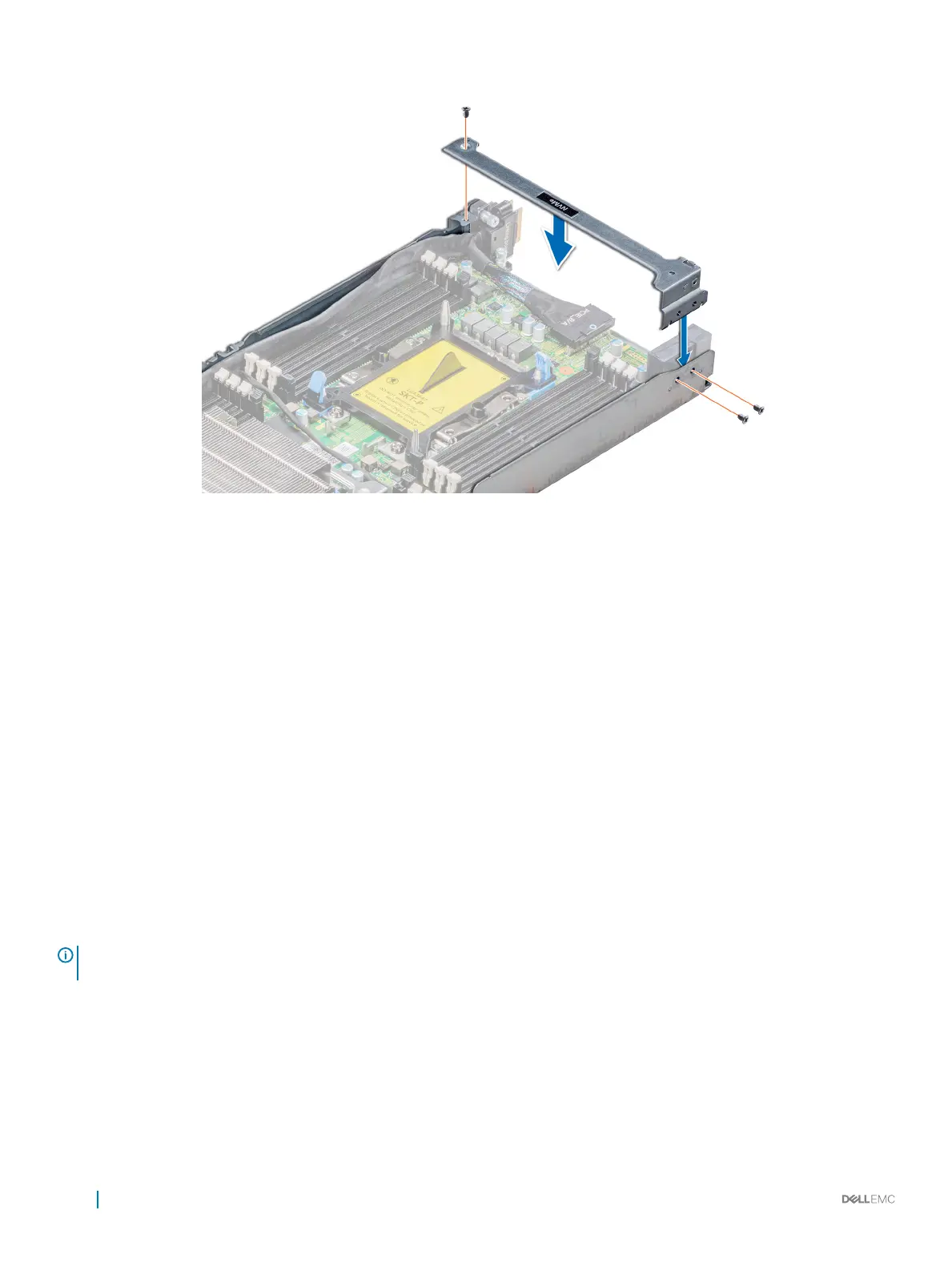

Figure 24. Installing the support bracket
Next steps
1 Install the sled into the enclosure.
2 Follow the procedure listed in After working inside your system.
Related link
Installing a sled
Linking board and SATA cable
Each C6420 sled has one linking SATA signal cable connected to the onboard controller.
The SATA cable is used to connect the onboard controller to the hard drive backplane through the midplane. Each sled is allocated up to six
2.5 inch hard drives or three 3.5 inch hard drives.
Removing the linking board and SATA cable
Prerequisites
NOTE
: Observe the routing of the cable as you remove it from the sled. Route the cable properly when you replace it to prevent
the cable from being pinched or crimped.
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the sled from the enclosure.
4 Remove the air shroud.
5 Remove the support bracket.
76
Installing and removing system components

Dell EMC PowerEdge C6420 Specifications

General

Processor	Intel Xeon Scalable processors
Management	iDRAC9
Max Processors	2 per node
Memory	DDR4
Storage	Up to 6 x 2.5" drives
Drive Bays	24 x 2.5" or 12 x 3.5"
Network	2 x 10GbE ports per sled
Power Supply	Dual, 2000W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Maximum RAM	Up to 3TB per node
Max Memory	Up to 3TB per node
