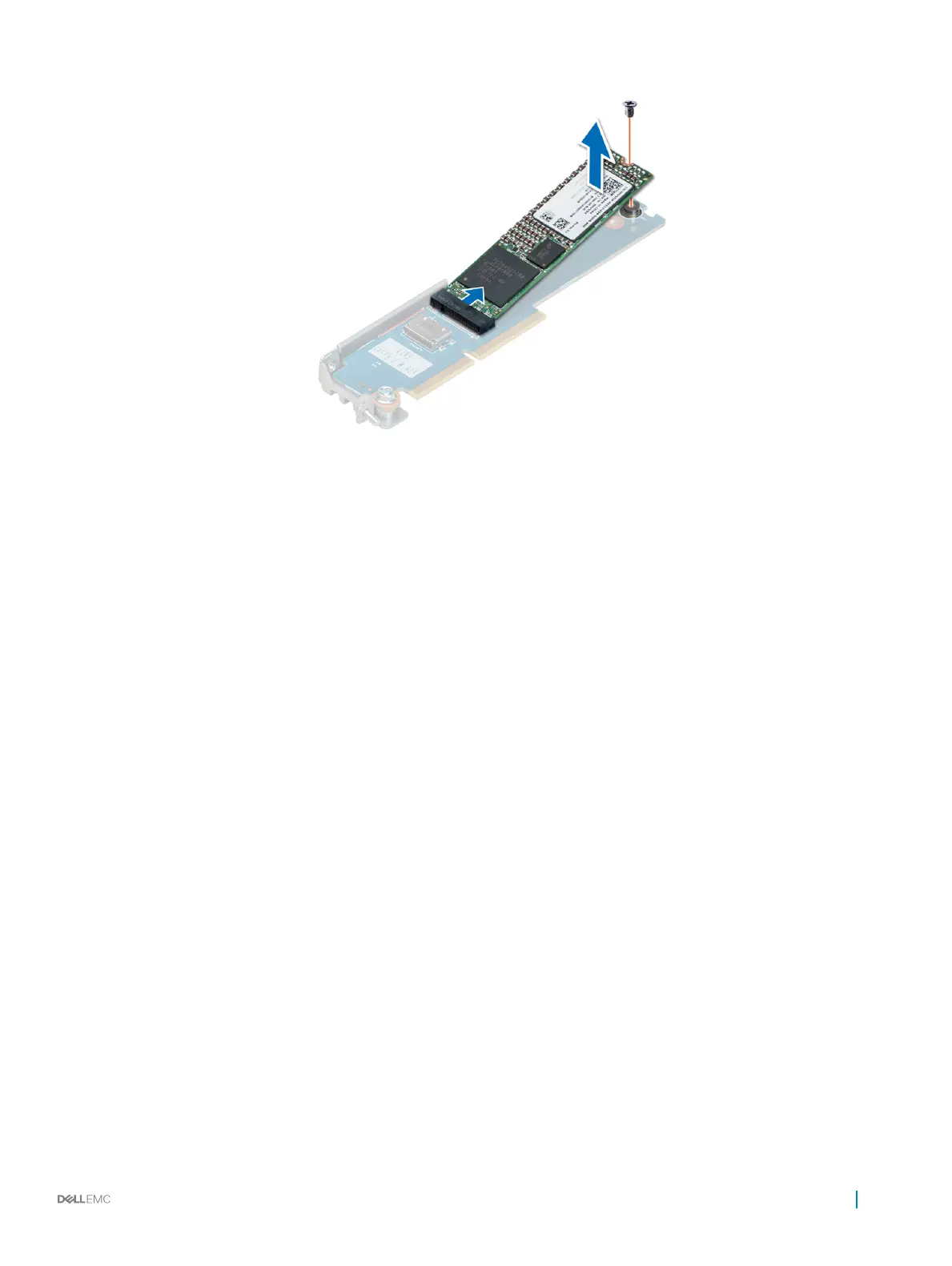

Figure 51. Removing the M.2 SATA card from the M.2 SATA x16 riser
Next step
Install the M.2 SATA card.
Related link
Removing a sled
Removing the expansion card riser assembly
Removing the M.2 SATA x16 riser
Installing the M.2 SATA card
Installing the M.2 SATA card
Prerequisite
1 Follow the safety guidelines listed in Safety instructions.
Steps
1 Insert the edge connector of the M.2 SATA card into the connector on the board, and push the card in.
2 Using the Phillips #1 screwdriver, secure the card in place.
Installing and removing system components
105
