Dell EMC PowerEdge C6420 User Manual

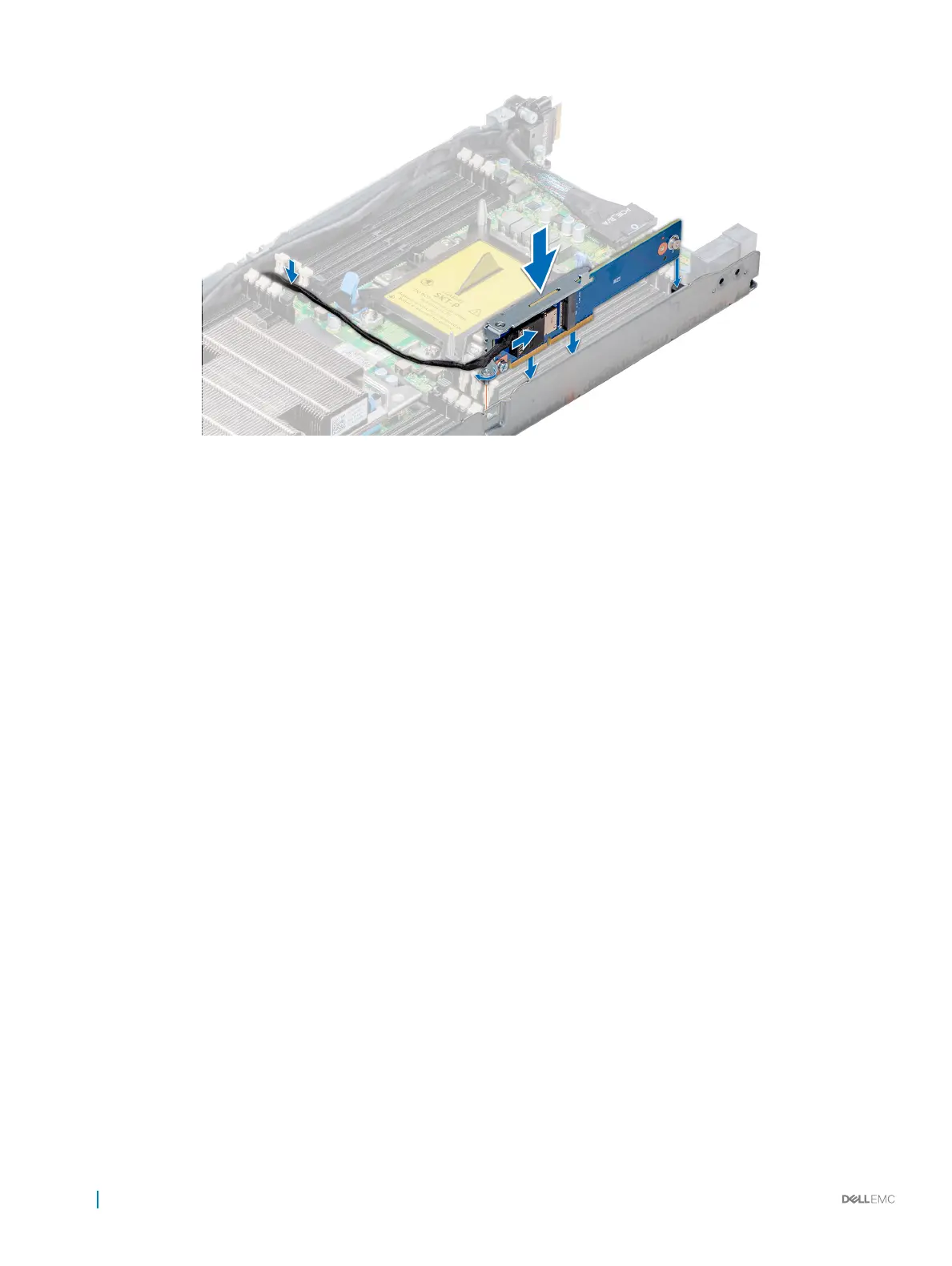

Figure 50. Installing the M.2 SATA x16 riser
Next steps
1 Install the sled into the enclosure.
2 Follow the procedure listed in After working inside your system.
Related link
Installing a sled
Removing the M.2 SATA card
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the sled from the enclosure.
4 If applicable, remove the expansion card riser assembly.
5 Remove the M.2 x16 riser.
Steps
1 Using the Phillips #1 screwdriver, unscrew the screw that secures the M.2 card to the board.
2 Pull the card out of the connector and lift the card away.
104
Installing and removing system components

Dell EMC PowerEdge C6420 Specifications

General

Processor	Intel Xeon Scalable processors
Management	iDRAC9
Max Processors	2 per node
Memory	DDR4
Storage	Up to 6 x 2.5" drives
Drive Bays	24 x 2.5" or 12 x 3.5"
Network	2 x 10GbE ports per sled
Power Supply	Dual, 2000W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Maximum RAM	Up to 3TB per node
Max Memory	Up to 3TB per node
