Dell EMC PowerEdge C6420 User Manual

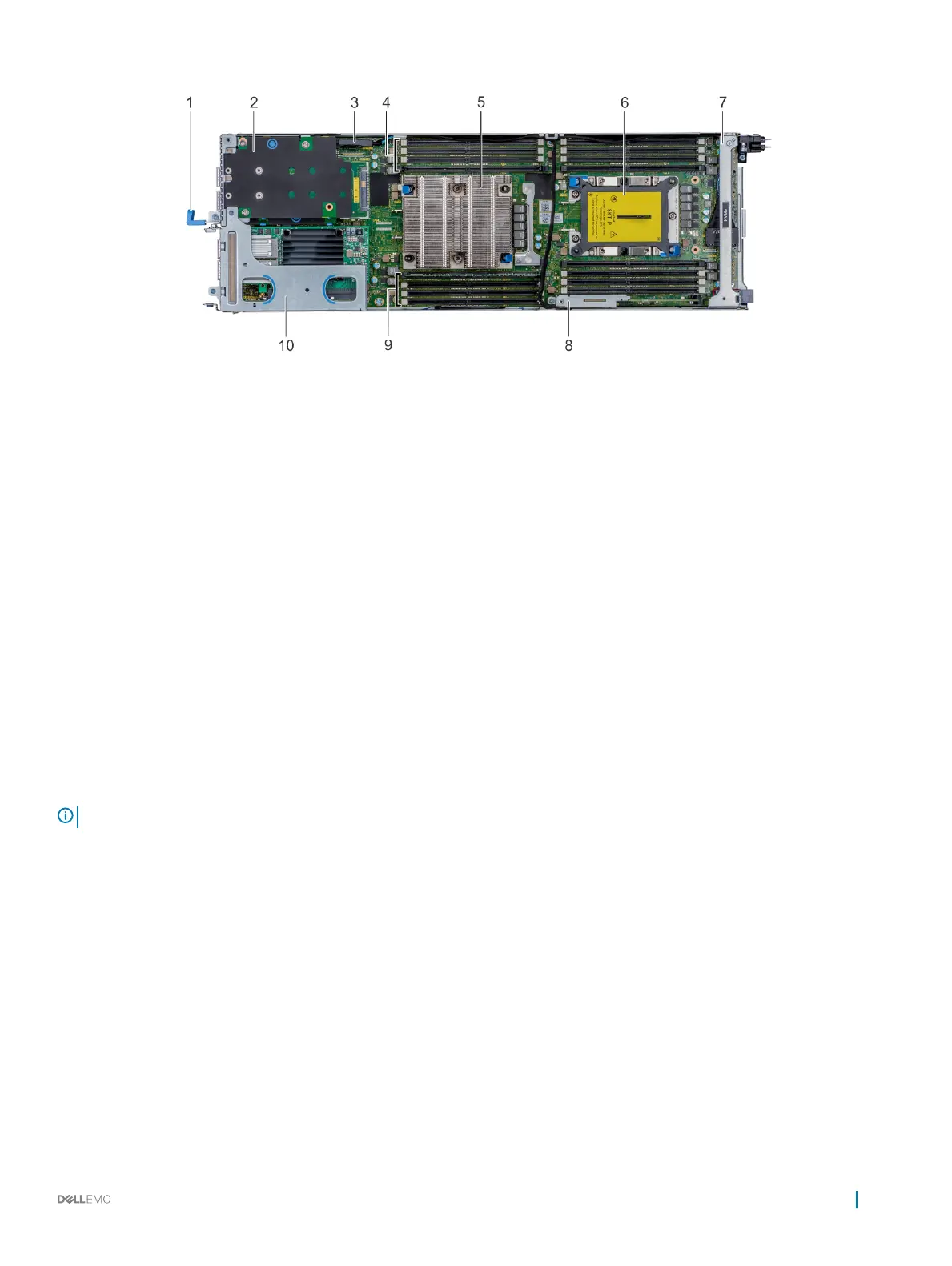

Figure 11. Inside the C6420 sled
1 sled pull handle 2 mezzanine card
3 SATA connector 4 memory slot (4)
5 CPU1 processor heat sink module 6 CPU2 processor heat sink module socket
7 supporting bracket 8 M.2 SATA riser
9 memory slot (4) 10 PCIe expansion card riser assembly
PowerEdge C6420 sled
The PowerEdge C6420 sled is a server unit that is installed into the PowerEdge C6400 enclosure. The sled features dual processors,
memory, a PCIe expansion slot, mezzanine cards, and onboard storage (SD card and M.2 SATA).
Removing a sled
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
NOTE
: The process of removing a sled blank is similar to removing a sled.
Step
Press the retaining latch and using the handle slide the sled out of the enclosure horizontally, ensuring that the sled is supported from
beneath.
Installing and removing system components
63

Dell EMC PowerEdge C6420 Specifications

General

Processor	Intel Xeon Scalable processors
Management	iDRAC9
Max Processors	2 per node
Memory	DDR4
Storage	Up to 6 x 2.5" drives
Drive Bays	24 x 2.5" or 12 x 3.5"
Network	2 x 10GbE ports per sled
Power Supply	Dual, 2000W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Maximum RAM	Up to 3TB per node
Max Memory	Up to 3TB per node
