5–Boot Configuration
iSCSI Configuration Using Fast!UTIL
213 CU0354602-00 L
13. In the pop-up window, use the UP ARROW and DOWN ARROW or the +
and – buttons to move the iSCSI target to the top of the list, as shown in
Figure 5-30 (where the iSCSI target is configured on Port 1, Partition 3).
Then click OK.

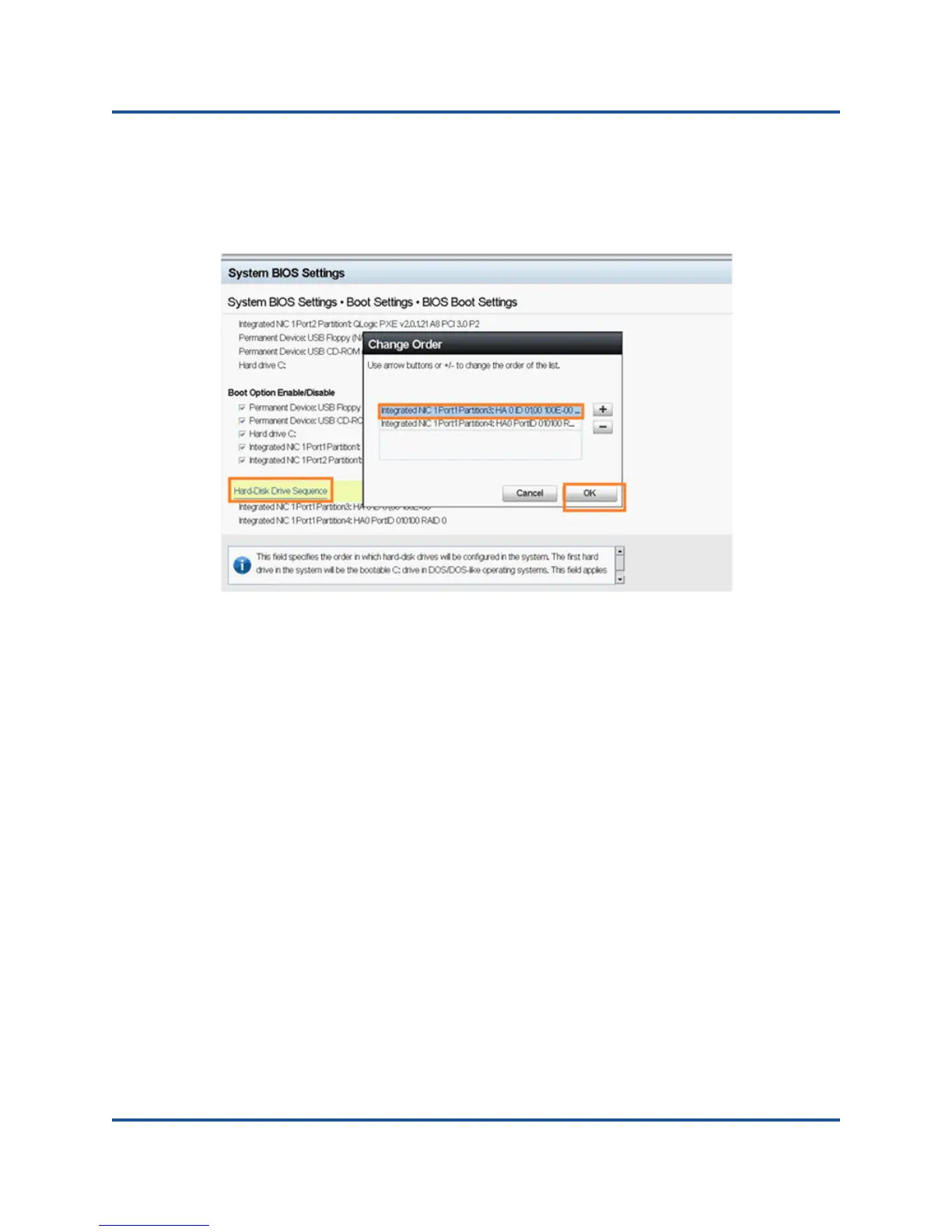

Figure 5-30. Setting the iSCSI Boot Sequence
14. Select Save changes and exit.
15. Follow the manufacturer’s OS installation instructions.
Booting
The iSCSI Fast!UTIL BIOS includes an iSCSI Boot Settings option, which is
accessed from the Configuration Settings menu. When you enable this option,
you can specify the drive from which you want to boot. After this is enabled, the
option forces the system to boot from the selected iSCSI drive, subject to the
settings in system BIOS (QLogic BIOS does not override system BIOS). When
you disable this option, the system looks for a boot device (as selected in the
system BIOS).
