Chapter 3 Element Function|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 3-57
Property Description of X-Y Chart Element
Grid Color
Horiz. Line Number
Vert. Line Number
Please refer to the figure below. The grid color is set to red and the grid number in
horizontal and vertical direction are both set to 2.
Curve Element Example
This curve element example can be downloaded via the following link:
http://59.120.64.39:81/phpbb2/files/curve.dop

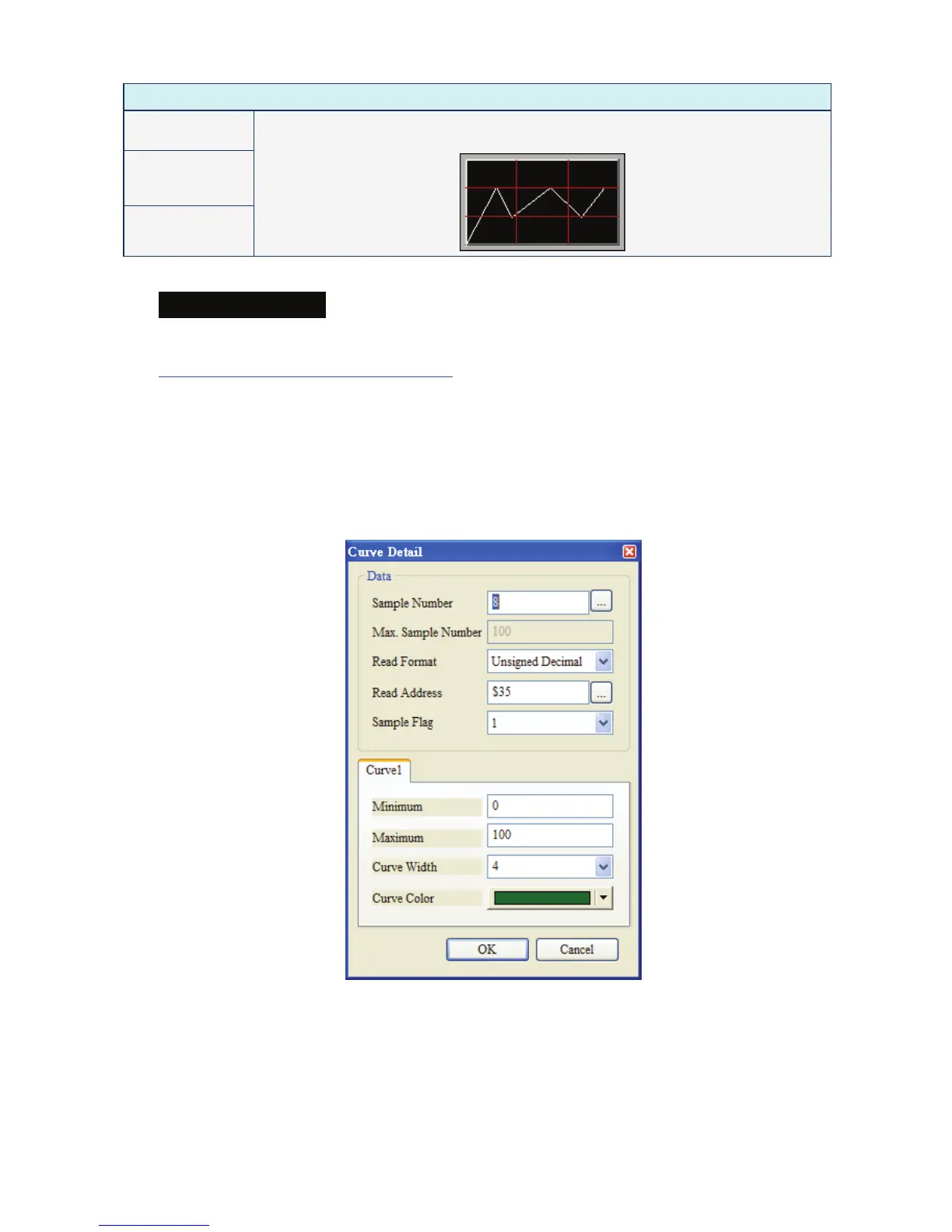

1. Please choose Options > Configuration on the menu bar to find the Standard tab in Configuration
dialog box and set the address of the control block as $1000.
2. Create a trend graph element. Set the Sample Flag to 1, Sample Number to 8, and Read Address
to $35. Your Screen will look like the figure shown below.
3. Create a X-Y chart element. Set the Sample Flag to 2, Sample Number to 7, Horizontal Read
Address to $43 and Vertical Read Address to $50. Your Screen will look like the figure shown on
next page.
