Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002 2-13
 Create a New Project
Creates a new project by choosing File > New (Fig. 2.3.2) or clicking the New icon
from toolbar
(Fig. 2.3.3), or using keyboard shortcuts by pressing Ctrl + N.
1. If this is the first time use and there is no old project, the following dialog box (Fig. 2.3.2) will show
up for the user to input project name, screen name, screen number, HMI type and connecting
base port controller after creating a new project.

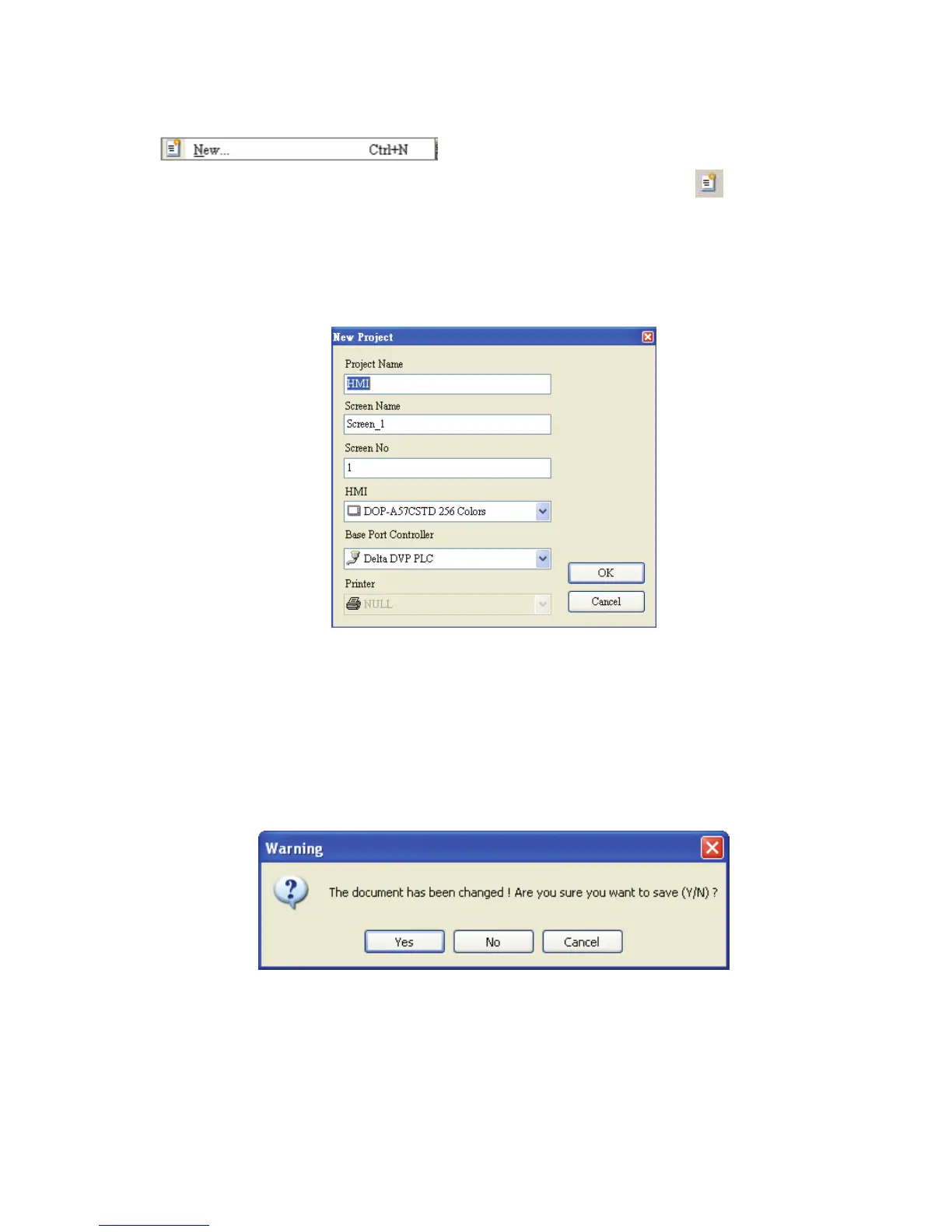

Fig. 2.3.2 New project dialog box
2. If other project files already exist and are open, the user will get the following dialog box to remind
the user of saving project (Fig. 2.3.3) before creating new project. Press Yes button to save the
existed file, press No button not to save the file and press Cancel button to cancel the save
operation. After the user press the Yes or No button, the new project dialog box will appear again
(Fig. 2.3.2).
Fig. 2.3.3 Saving dialog box
3. Input project name, screen name, select HMI model and connecting base port controller (Fig.
2.3.4), and then press OK button.
