Chapter 2 Creating and Editing Screens|ScrEdit Software User Manual
2-64 Revision Apr. 30th, 2007, 2007PDD23000002
Debug Compiling Error during Compiling Process

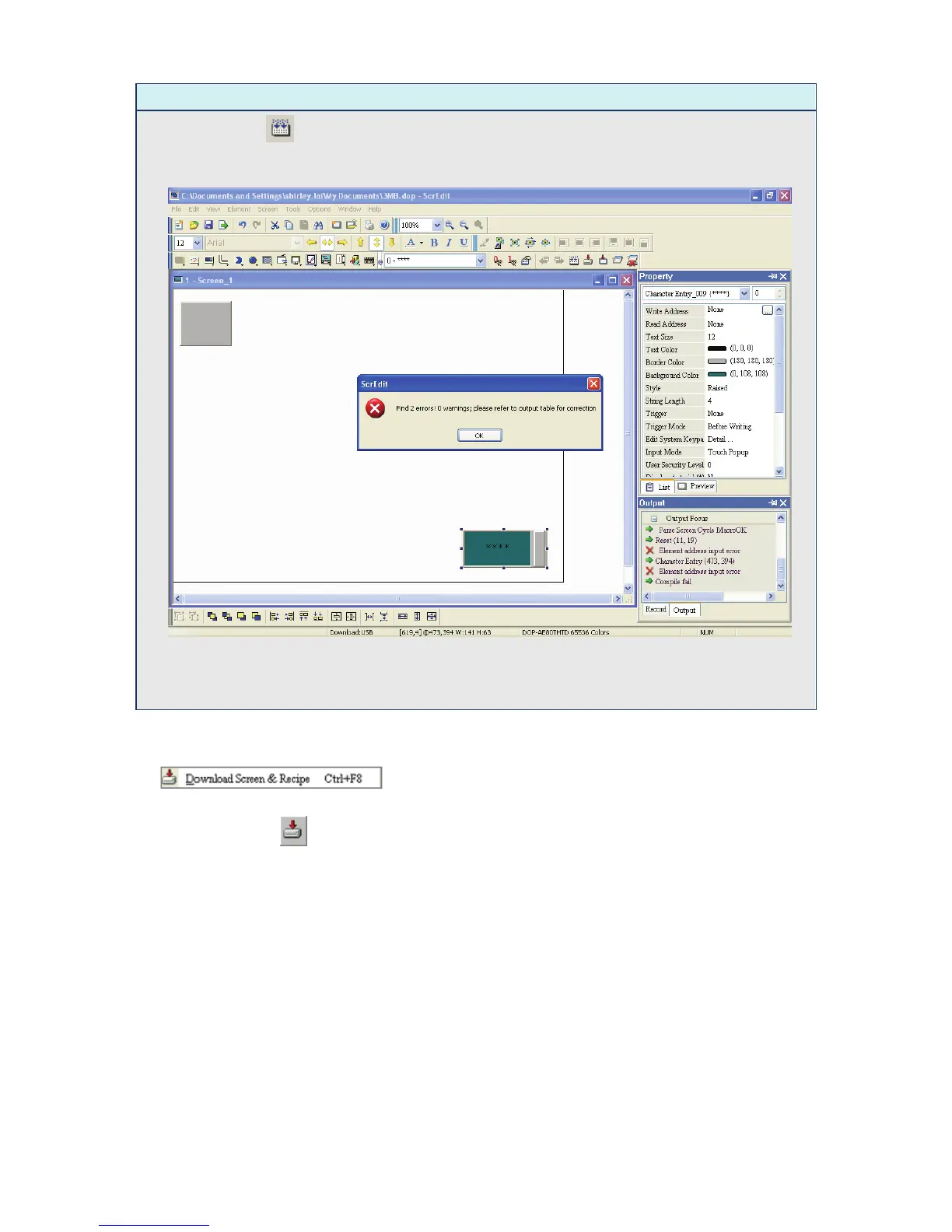

3. When pressing icon to execute compile operation, error message dialog box will pop up to warn
the user of compiling error and show how many errors there are. In Fig. 2.8.3, we can see that there
are two errors occurred and they are all displayed in the output window.
Fig. 2.8.3 Compiling errors during compiling process
4. Once error occurs, the correspondent message will display in output window. The user can click the
error message and ScrEdit will switch to error element window automatically.
 Download Screen & Recipe
The user can download screen data and recipe to HMI by clicking Tools > Download Screen &
Recipe or clicking
icon directly or using keyboard shortcuts by pressing Ctrl + F8 (Fig. 2.8.4).
If PC cannot connect to HMI, the error messages will be displayed and warn the user (Fig. 2.8.5, Fig.
2.8.6, Fig. 2.8.7 and Fig. 2.8.8). The user can set download interface by clicking Options >
Configuration or by clicking Options > Environment. The download interface can be USB or RS-232.
