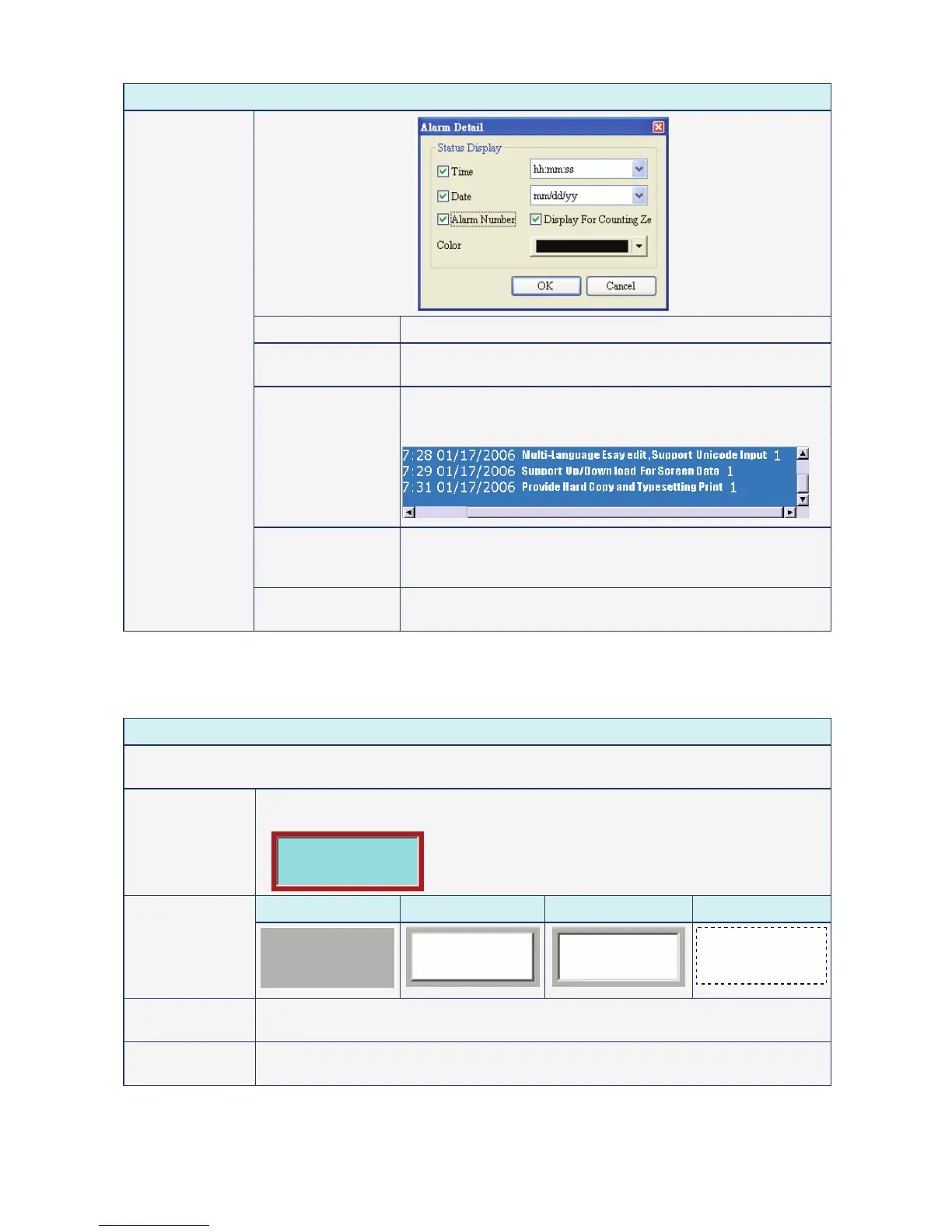

Property Description of Alarm Frequency Table Element
Time Format Provide HH:MM:SS, HH:MM two kinds of formats.
Date Format Provide MM/DD/YY, DD/MM/YY and DD.MM.YY three kinds of
formats.
Alarm Number If this option is selected, when the alarm occurs, the time and
date when the alarm occurred will also be shown in front of the
alarm message. Please refer to the figure below:
Display for Counting
Zero
Use this option to decide if show the message on the Alarm
Frequency Table element or not when the occurring times of the
alarm message is zero.
Detail
Color When Time and Date these two options are selected, the user
can designate the display color by using this option.
Alarm Moving Sign
Table 3.13.5 Property Description of Alarm Moving Sign Element
Property Description of Alarm Moving Sign Element
HMI will monitor and read the read address in a fixed time automatically. If some certain Bit contact of the
address is ON or OFF, the current alarm message will display on the screen via Alarm Moving Sign element.
Border Color
Background Color
The background color of the element below is set to blue green and its border color is
set to red.
Standard Raised Sunken Transparent Style
Moving Points It is used to set the movement of the moving sign. The unit is Pixel and the range is
within 1 ~ 50 Pixels.
Interval(ms) It is used to set the interval time between two movements. The unit is ms and the range
is within 50 ~ 3000 ms.
