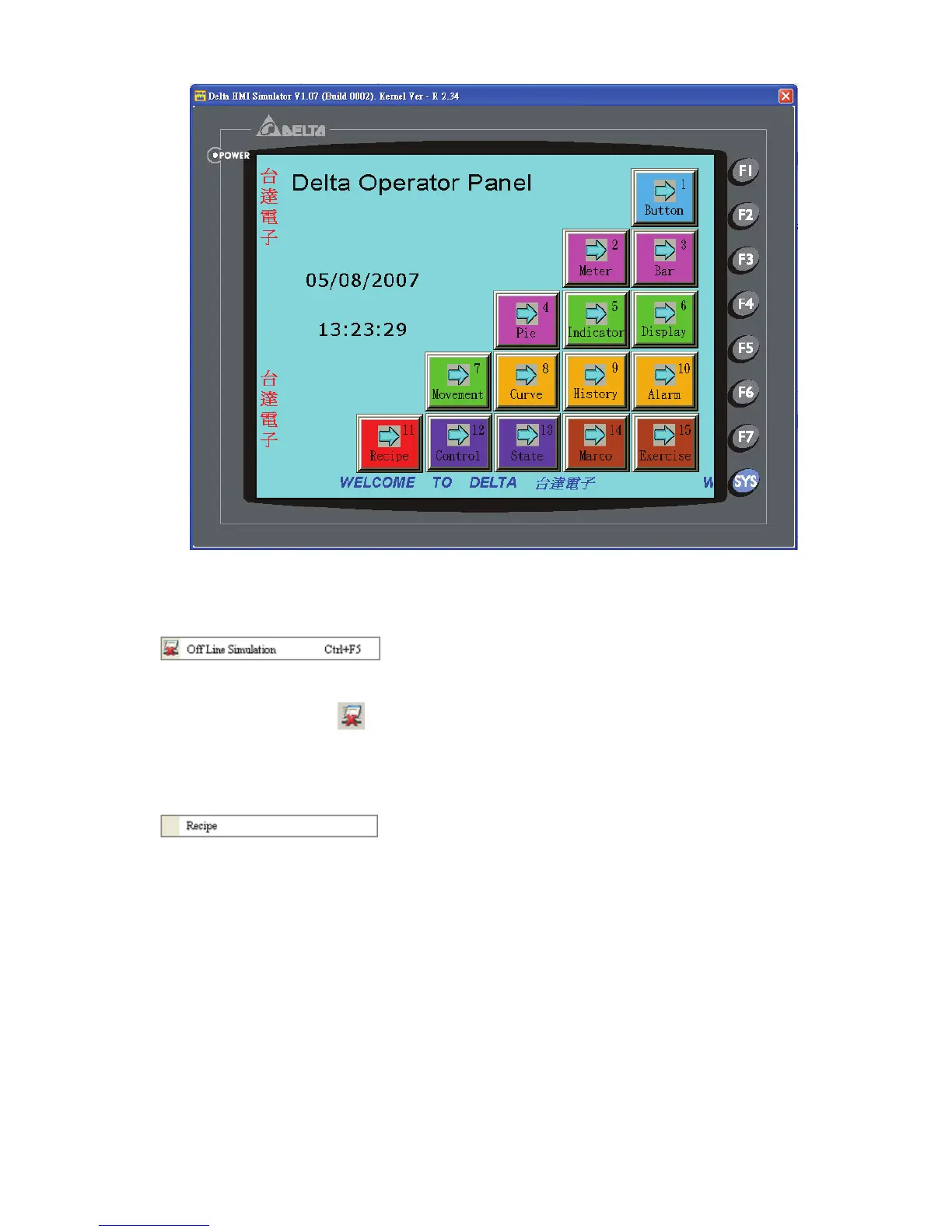

Fig. 2.8.10 On Line / Off Line Simulation Screen
Off Line Simulation
It is used to test if the editing screen, read/write addresses and Macro on is correct on developed
program without connecting to PLC. The user can execute this function by clicking Tools > Off Line
Simulation or clicking icon
or using keyboard shortcuts by pressing Ctrl + F5.
For Off Line Simulation Screen, the user can refer to Fig. 2.8.10.
Recipe
Recipe function provides the controller a convenient parameter input method. The user can transmit the
designated parameter to the controller by using HMI recipe after finishing editing recipe. Bread making
is an example. When making different bread, baking time control is very important. The user can use
Recipe function to meet the different time requirements for making different bread. The purpose of this
function is to reduce the loading of the controller and make the register of the controller to be more
flexible in use.
Recipe function provides an easy and quick parameter input method for the connected controller. When
completing the recipe editing, the user just needs to use the recipe register in control block and the
designated corresponding parameters can be transmitted into the internal memory addresses of the
controller.
Recipe can be set and modified by Recipe Setup dialog box (Fig. 2.8.11) and can be saved and used
independently without project file. Not only 16 bits recipe file (*.rcp), Delta DOP series HMI products
also allow the user to save the recipe data as a 32 bits recipe file (*.csv). Then, the user can edit csv
file in Microsoft Windows@ Excel environment conveniently. Before using recipe, the user should
enable recipe function first by clicking Tools > Recipe. After the recipe function is enabled, the Recipe
Setup dialog box will pop up (Fig. 2.8.11) and then the user can start to edit the recipe. For the setting
of Recipe Setup dialog box, please refer to Table 2.8.2 on next page.
