 I/O Screen

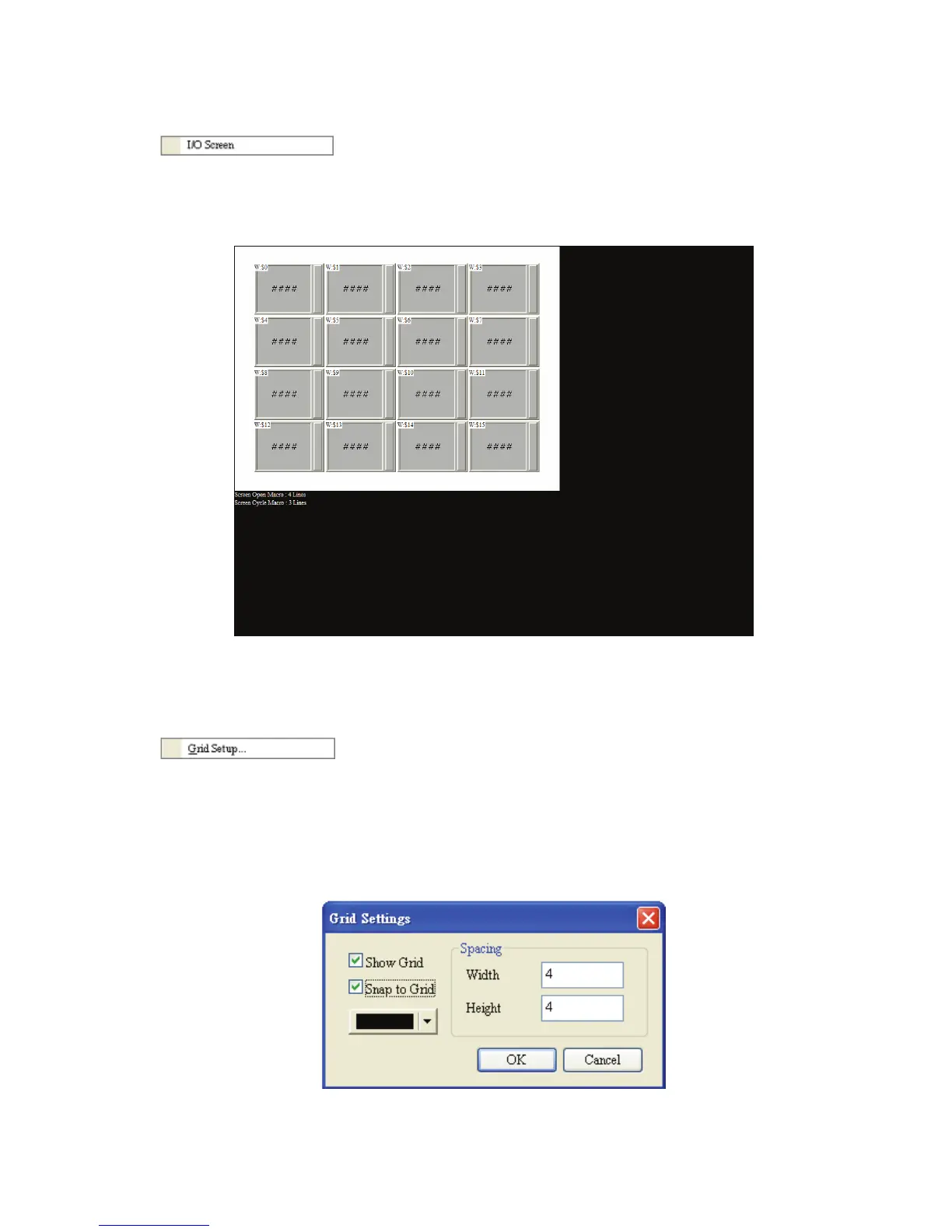

As Fig. 2.5.13. I/O screen also provides maximum view to edit in ScrEdit just like Full screen. But the
difference is that I/O Screen will show the read and write addresses of the element and also shows the
set macro commands.
Fig. 2.5.13 I/O Screen (Pressing Esc key or left-click the mouse can exit Full screen)
 Grid Setup
Grid Setup is a function that can help the user to align and position the element more easily and
precisely. The distance (spacing) between the grid dots can be set by the user freely (Fig. 2.5.14 and
Fig. 2.5.15).
Show Grid: Show the grid dots on the screen.
Snap to Grid: Make the elements snap to grid so that the elements can jump between grid lines when
the user moves them.
Fig. 2.5.14 Gird Settings dialog box
