Chapter 3 Element Function|ScrEdit Software User Manual
3-76 Revision Apr. 30th, 2007, 2007PDD23000002

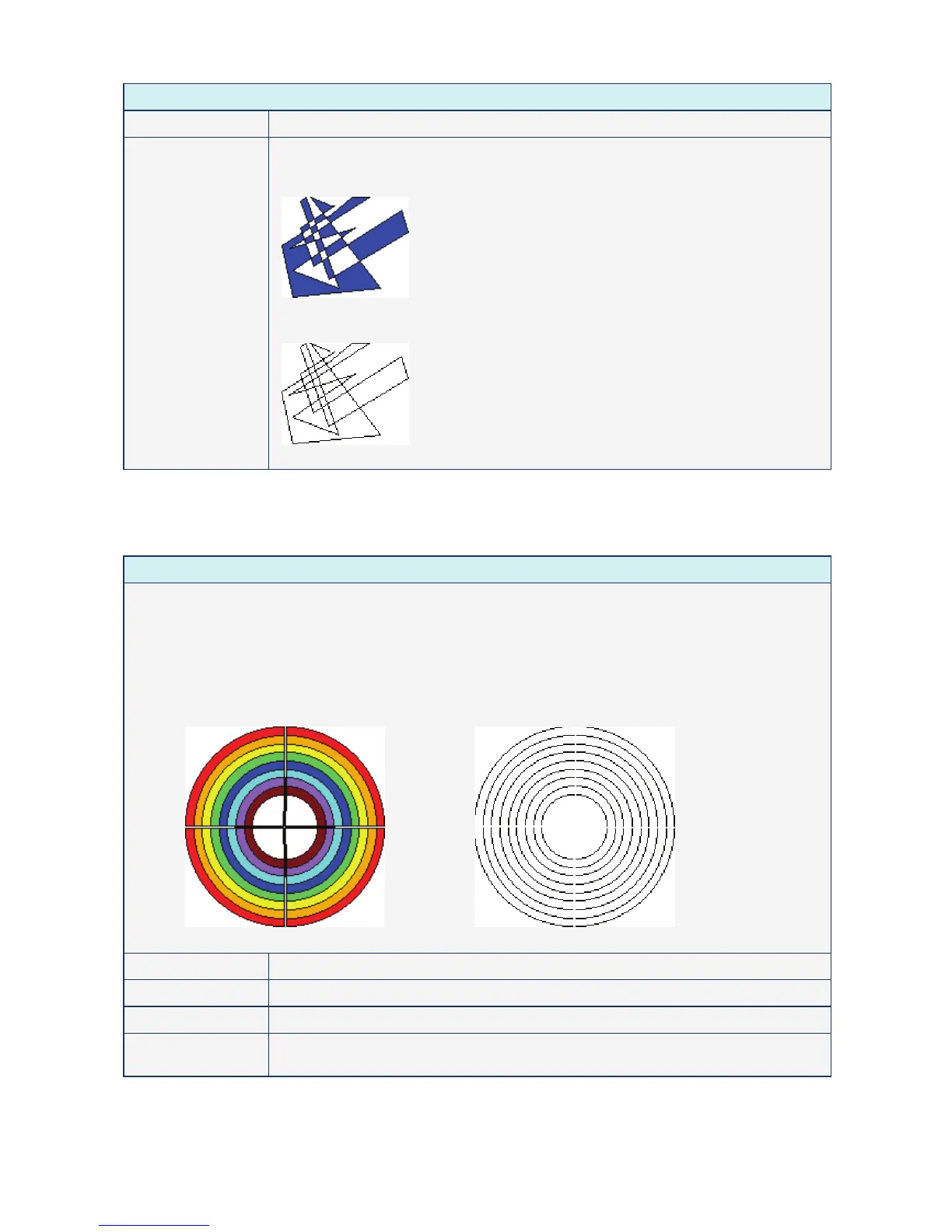

Property Description of Polygon Graphic Element
Line Size The unit is Pixel and the range is within 1 ~ 8.
Transparent When this option is selected, the element will display only with the border and there is
no color in the element. The Foreground Color option will be disabled also. Please
refer to the figures below:
A polygon that its “Transparent” setting in the property table is
set to “No”.
A polygon that its “Transparent” setting in the property table is
set to “Yes”.
Arc
Table 3.14.5 Property Description of Arc Graphic Element
Property Description of Arc Graphic Element
Left-click the mouse to draw and edit the arc graphic element. The user can click where the user wants to
start the arc and drag across the work place on the screen. Then, release the mouse to finish the arc. When
selecting this arc graphic element, the user can see a rectangle range and this is designed for the user to
move and adjust the arc more quickly and conveniently. Changing the size of the rectangle range is
changing the size of arc graphic element directly. There is a “Transparent” option in the element property
table. If this option is set to Yes, it indicates that this element is an arc. If this option is set to No, it indicates
that this element is a sector. The range out of the circle graphic element itself will be displayed in transparent
color.
When “Transparent” is set to “No” When “Transparent” is set to “Yes”.
Line Color It is used to set the line color of the arc graphic element.
Foreground Color It is used to set the display color of the arc graphic element.
Line Size The unit is Pixel and the range is within 1 ~ 8.
Transparent When this option is selected, the element will display only with the border and there is
no color in the element. The Foreground Color option will be disabled also.
To Next Page
