Appendix A Specifications and Installation
|
ScrE
dit Software User Manual
Revision Apr. 30th, 2007, 2007PDD23000002
A-11
8.0” Panel (DOP-A80TH
TD1, DOP-AE80THTD)
9.4” & 10.4”Panel (DOP-AE9
4BSTD, DOP-A(E)10TC(H)TD
)
DOPA(E)10
TC(H)TD
DOPAE94BSTD

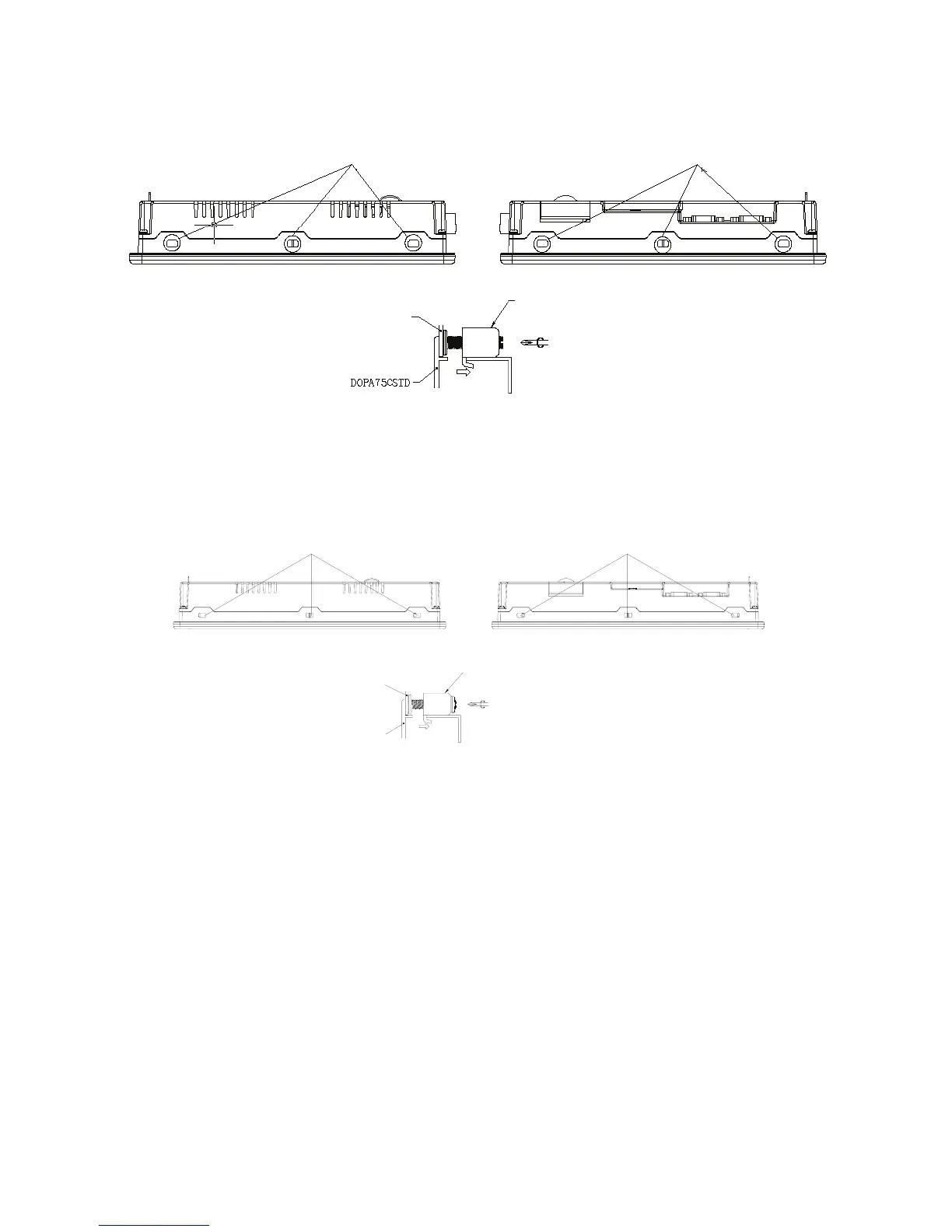

Top View
Mounting holes
Bottom View
Mounting holes
Fixed support
Snap-in panel mount
Top View
Mounting holes
Bottom View
Mounting holes
Fixed support
Snap-in panel mount
303
305
Table of Contents
Default Chapter
2
Preface
2
Table of Contents
4
Technical Support and Service
7
DOP Series Human Machine Interface
8
Features
8
PLC Serial Drives Support
8
Chapter 1 Introduction
8
Multiple Security Protection
9
Simulation Function
9
Support Multiple Plc’s Connections
9
Using SM Card to Backup Data
9
Ordering Information
10
Caution
11
Operation Environment (Temperature and Humidity)
11
SM Card
11
USB Flash Drive
11
Minimum System Requirement
12
Scredit (Screen Editor) Setup
12
Software Installation
12
Chapter 2 Creating and Editing Screens
12
How to Start Scredit
16
Menu Bar
18
Toolbar
18
New Project Screen of Scredit
18
Standard Toolbar
18
Scredit Toolbar
19
Property Table
20
Output Window
21
Editing Screen Preview
21
Work Place
22
Scredit Work Place
22
Menu Bar and Toolbar (File)
23
File Options
23
Create a New Project
24
New Project Dialog Box
24
Saving Dialog Box
24
Open Old Project
25
Open an Old Project in Scredit
25
Close File
26
Save File
26
Make Ext. Memory Data
27
Open Ext. Memory Data
28
Upload Screen Data and Recipe
28
Upload Recipe
29
Update Firmware
29
Environment Dialog Box
29
Choosing Update Firmware Command from Menu Bar
29
Password Protect
30
About Scredit
30
Password Protect Function Is Enabled
30
Password Protect Function Is Disabled
30
Print
31
Print Preview
31
Print Preview Screen
31
Print Setup
32
File Quick Access
32
Print Setup Dialog Box
32
Most Recent Used Files
33
Menu Bar and Toolbar (Edit)
34
Undo
34
Redo
34
Replace
36
Ungroup
39
Order
39
Align
39
Text Process
40
Duplicate
40
Duplicate Dialog Box
40
Menu Bar and Toolbar (View)
42
Status Bar
43
Text Format Toolbar
43
Bitmap Toolbar
44
Element Toolbar
44
Build / Layout Toolbar
46
Layout Toolbar
47
Zoom Toolbar
47
Zoom in
49
Zoom out
50
Actual Size
51
Full Screen
51
Zoom Level
51
I/O Screen
52
Grid Setup
52
Show Gird Screen
53
Menu Bar and Toolbar (Element)
54
Drag Mouse to Determine the Element Size
54
Element Display (Create an Element)
55
Create an Element
55
Right-Click the Mouse to Select the Element
55
Cross Reference Table
61
Element Part List
62
Menu Bar and Toolbar (Screen)
63
Open Screen
64
Screen Management
64
Open Screen Dialog Box
64
Copy Screen
67
Paste Screen
67
Delete Screen
67
Clear Import Data
68
Screen Open Macro
68
Screen Close Macro
68
Screen Cycle Macro
68
Auxiliary Key
69
Auxiliary Keys on HMI Panel
69
Auxiliary Key Setting on the Screen
69
Available User-Defined Auxiliary Keys
70
Screen Properties
70
Choosing Screen Properties from Docking Windows
70
Screen Properties Dialog Box
71
Screen Properties Setting
71
Menu Bar and Toolbar (Tools)
74
Debug Compiling Error
74
Debug Compiling Error During Compiling Process
75
Download Screen & Recipe
75
USB Open Error Message
76
USB Disconnect Error Message
76
Incorrect Model Name Error Message
76
Download Screen
77
On Line Simulation
77
COM Port Setting
77
Off Line Simulation
78
Recipe
78
On Line / off Line Simulation Screen
78
Recipe Setup Dialog Box
79
32 Bits Floating Recipe Setup Dialog Box
83
32 Bits Floating Recipe Editing
83
Control Flag for Changing Recipe Number
87
Recipe Control Register (RECR)
87
Control Flag for Reading Recipe
87
Control Flag for Writing Recipe
87
Register for Designating Recipe Number (RBIR)
88
Control Block Settings of Configuration Dialog Box
89
Recipe Example
90
32 Bits Recipe Example
92
Recipe CSV File Editing
99
General Recipe Example
99
Menu Bar and Toolbar (Options)
102
Multi Language Function Example
110
Alarm Setup
114
Alarm Setup Dialog Box
114
Alarm Setup Settings
114
Tag Table
120
Print Function
121
Printer and Page Setup
121
Create Printing Report
123
Print Typesetting Function
123
Print Screen Layout and Output
124
Hard Copy Function
126
Picture Bank
127
Text Bank
129
Picture Bank Browse Dialog Box
129
Submarro
130
Initial Macro
130
Background Macro
130
Clock Macro
130
Menu Bar and Toolbar (Window)
133
Close Window
133
Close All Windows
133
Menu Bar and Toolbar (Help)
137
How to Choose Element
138
Shortcut Menu Display
138
Chapter 3 Element Function
138
Button Element
140
General Buttons
141
Property Description of General Buttons
141
Multistate Buttons
145
Set Value Button
146
Property Description of Set Value Buttons
147
Set Constant Button
147
Increment / Decrement
149
Goto Screen / Previous Page / Previous View Buttons
150
Meter Element
156
Meter Element Options
156
Bar Element
158
Pipe Element
161
Pie Element
164
Indicator
166
Indicator Element Options
166
Data Display
169
Character Display
171
Date Display
172
Time Display
172
Day-Of-Week Display
173
Prestored Message
173
Moving Sign
173
Graph Display
175
Static Graphic
175
Animated Graphic
177
Dynamic Line
178
Dynamic Rectangle
179
Input Element
183
Curve Element
189
Curve Element Example
194
Sampling Element
197
History Setup Dialog Box
197
Historical Trend Graph
199
Historical Data Table
201
Historical Event Table
202
Sampling Element Example
203
Alarm Element
205
Alarm Element Options
205
Function of Alarm Elements
205
Active Alarm List
206
Property Description of Active Alarm List Element
206
Alarm Frequency Table
207
Property Description of Alarm Frequency Table Element
207
Alarm Moving Sign
208
Property Description of Alarm Moving Sign Element
208
Graphic Element
210
Line
210
Graphic Element Options
210
Property Description of Line Graphic Element
210
Rectangle
211
Circle
211
Polygon
212
Arc
213
Property Description of Arc Graphic Element
213
Text
214
Scale
214
Keypad Element
218
Example for Keypad Element
220
Chapter 4 Macro Function
222
Macro Type
223
Choosing Macro Command from Menu Bar
223
ON Macro
224
OFF Macro
224
Before Execute Macro
224
After Execute Macro
224
Sub-Macro
227
Clock Macro Delay Time Setting
227
Macro Editing
228
Start Editing Macro
228
Blank Line Becomes Comment Line
229
Copy One or more Macro Commands
231
Macro Operation
235
Arithmetic Operation
235
Data Transfer Command Table
243
Communication Macro Example
258
Plc
258
Timetick
261
Getlasterror
261
Comment
261
Getsystemtime
261
Setsystemtime
262
Gethistory
262
Error Messages
263
Code–106: Repeated LABEL
263
Code – 104: Number of NEXT Is Less than the Number of for
263
HMI Macro Error Messages
264
HMI Communication Error Messages
265
Example of HMI Communication Error Message
265
Communication Busy
265
Controller Station Number Error
267
UART Communication Error
267
Other Communication Error
267
Chapter 5 Control Block and Status Block
268
Control Block
269
Control Flag Register (CFR)
269
Register for Designating Screen Number (SNIR)
269
Enable / Disable Communication
270
Enable / Disable Back Light
270
Enable / Disable Buzzer
270
Clear Control Flag for Alarm Buffer
270
Setting User Level
271
Curve Control Register (CUCR)
271
Curve Sampling Control Flag (1-4)
271
Curve Clear Control Flag (1-4)
271
Control Flag Register for Sampling History Buffer
272
Register for Clearing History Buffer (HBCR)
272
History Buffer Setup
272
Clear Flag of History Buffer
273
Status Block
276
Status Register for General Control (GCSR)
276
Screen Switch Status
276
Clear Status of Alarm Counter
277
User Level Status
277
Status Register of Curve Control (CCSR)
277
Curve Sampling Status Flag
278
Curve Clear Status Flag
278
Status Register for Sampling History Buffer (HSSR)
278
Status Register for Clearing History Buffer (HCSR)
278
Clear History Buffer Flag
279
Recipe Status Register (RESR)
279
Change Status of Recipe Number Flag
279
Status Register for Recipe Number (RBSR)
279
Multi-Language Status Value
280
Printer Status Flag
280
Printer Form Feed Status Flag
280
Chapter 6 Internal Memory
282
Group Address Access
283
Absolute Address Access
283
Programming MACRO Files
284
Chapter 7 Example Explanation
284
Appendix A Specifications and Installation
294
Dimensions and Profile
298
Installation
303
USB Flash Drive Update Function
306
Encryption Mode
306
Data Encryption
311
No Encryption Mode
316
Main Menu Operation of HMI System
320
