Chapter 6 Writing a Program
6-13

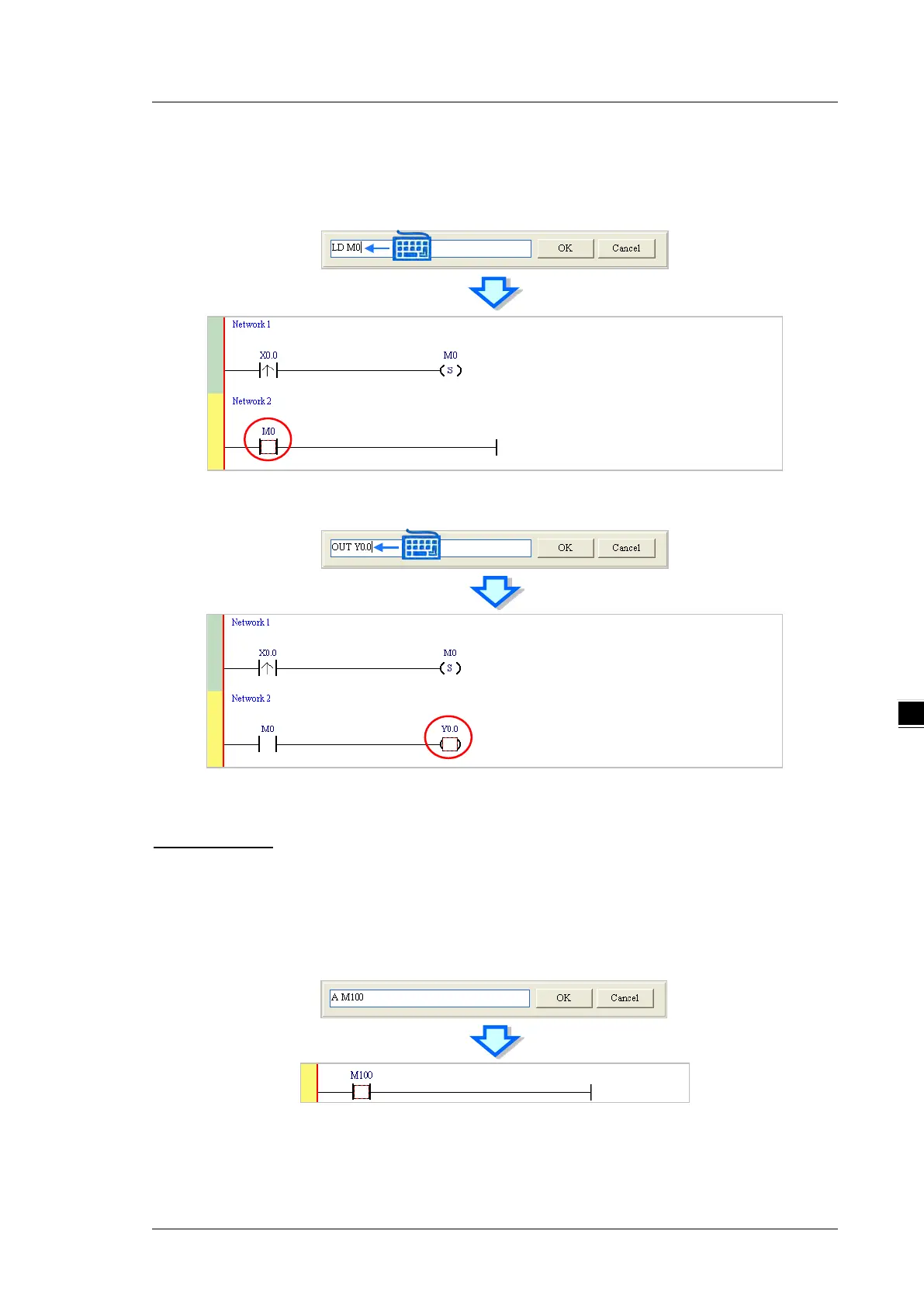

(2) Type the IL instruction “LD M0”. This instruction is not case-sensitive. As soon as you type the IL instruction,
a box which you can edit appears. After you finish typing the IL instruction, press Enter on the keyboard or
click OK at the right side of the box.
(3) Type the IL instruction “OUT Y0.0”, and write the program shown below.
Additional remark
You create a contact and a coil by typing simple instructions. Refer to the description below. The instructions
typed are not case-sensitive.
To Insert a normally-open contact (contact A), type “A <device address>”
