Delta AS16AP11P-A User Manual

Chapter 2 Specifications and System Configuration
2-60
2_

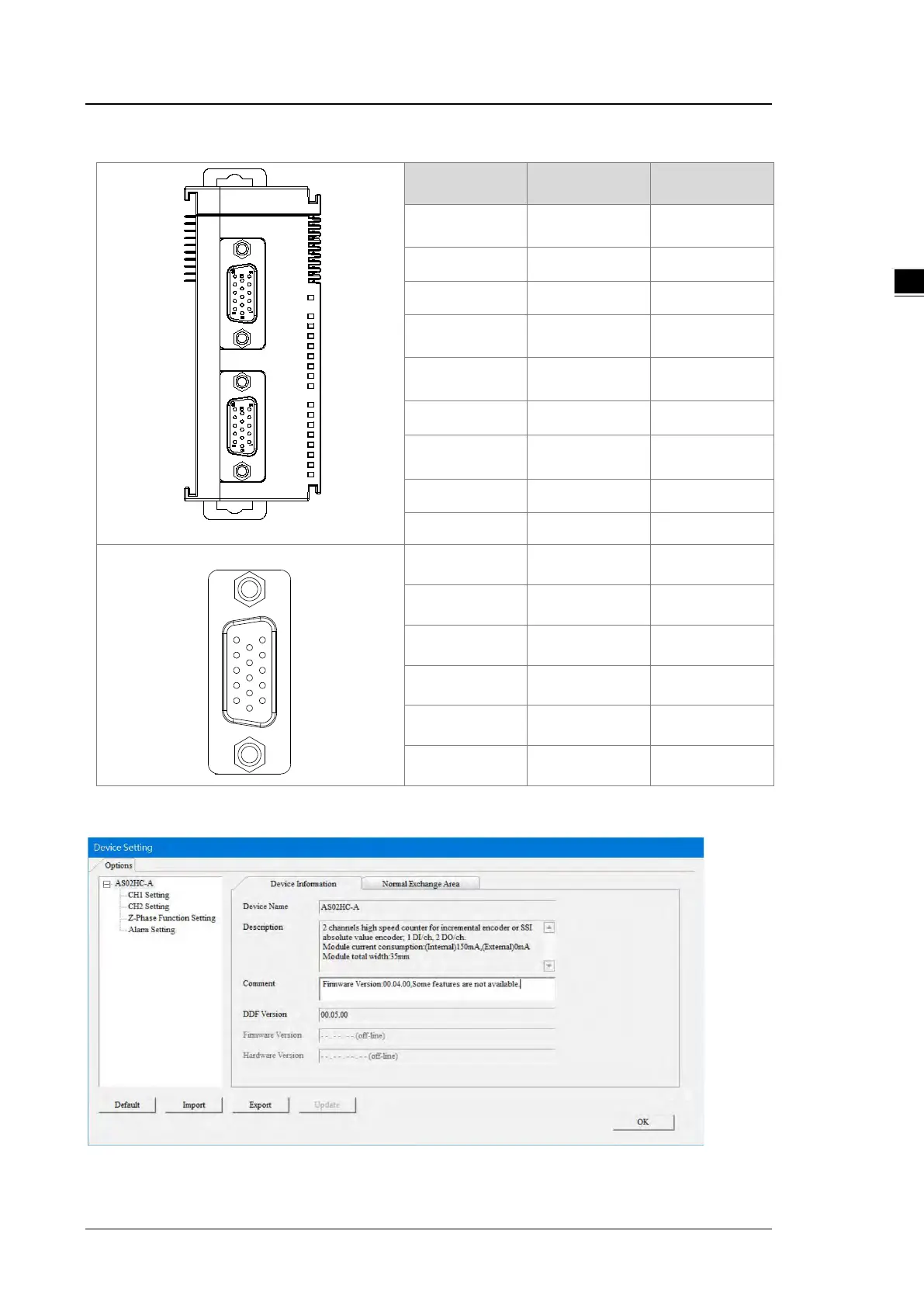

2.7.3 Counting Module Terminals
Pin No. CH1 CH2
8 A1+ A2+
3 A1- A2-
7 B1+ B2+
2 B1- B2-
6 Z1+ Z2+
1 Z1- Z2-
10 CLK1+ CLK2+
5 CLK1- CLK2-
9 DATA1+ DATA2+
D-sub15 pin
5
15
1 0 6
1
11
4 DATA1- DATA2-
14 +5VO1 +5VO2
15 GND1 GND2
12 Y0.0 Y0.2
11 Y0.1 Y0.3
13 COM0 COM1
2.7.4 Counting Module Device Setting
Refer to the AS Series Module Manual for further information on device settings.
PWR
ERR
CH1 Act.
CH1 A
CH1 B
CH1 Z
Y0.0
Y0.1
CH2 Act.
CH2 A
CH2 B
CH2 Z
Y0.2
Y0.3
02HC
CH1
CH2
