AS Series Operation Manual
7.6 Backing Up a Project
If the backup source or backup destination is an AS Series CPU module or memory card, make sure that
ISPSoft is connected to the AS Series CPU module. During backup, the CPU LED and Error LED blinks
alternatively and SM452 flag is ON. After the backup is done, the CPU LED and Error LED stops blinking and
SM452 flag is OFF. Refer to Section 2.4 in the ISPSoft User Manual for more information.

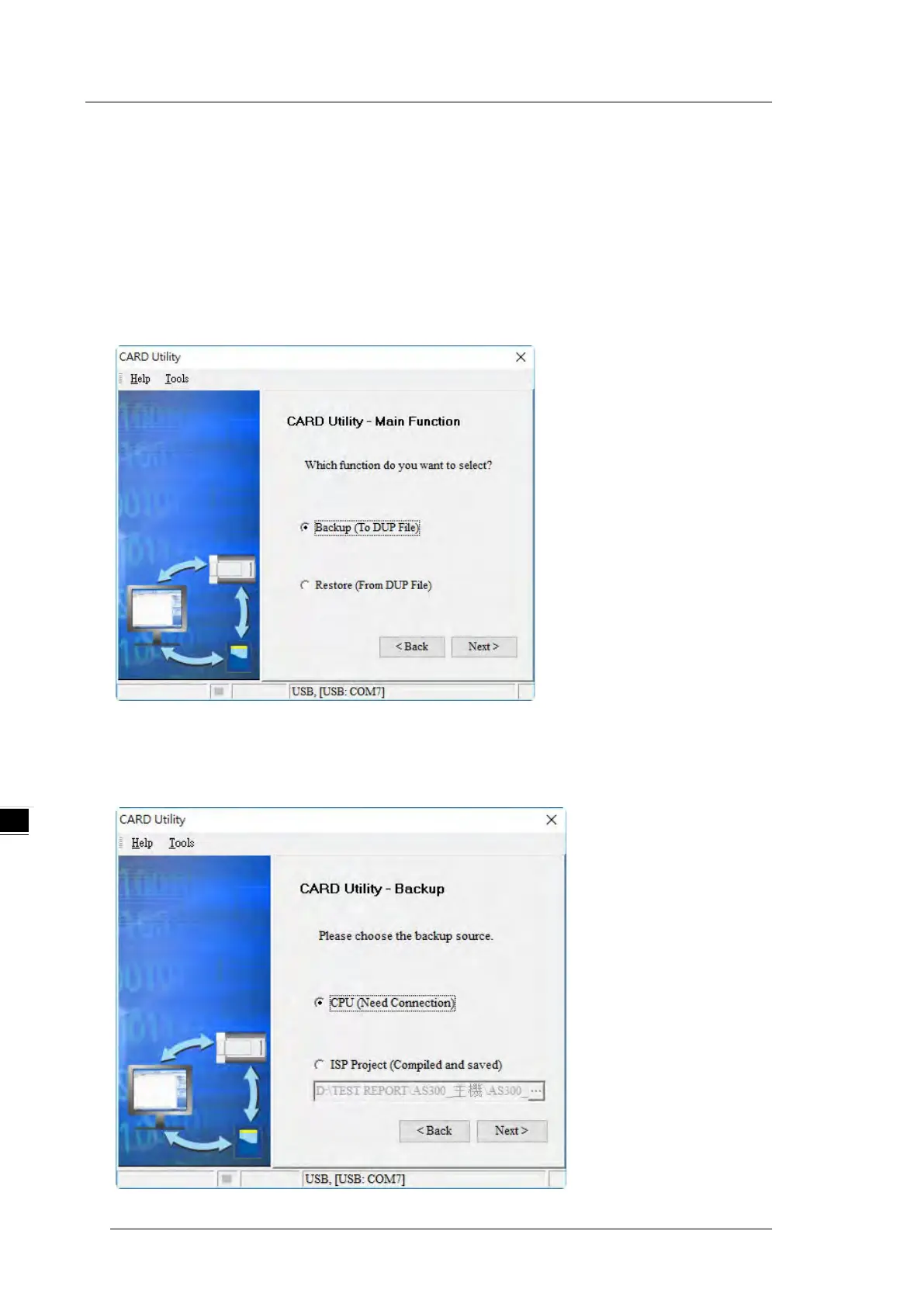

(1)
Select the
Backup (To DUP File)
option button in the
CARD Utility
wizard and then click
Next
.
(2)
Select a backup source, and then click
Next
.
a. If you select the
CPU (Need Connection)
, the backup file is stored in the memory card.
To Next Page
