Chapter 9
E
ther
n
et
Specif
ication and Operation
9
-
45
9_
9.5.2.2
Consumed TAG

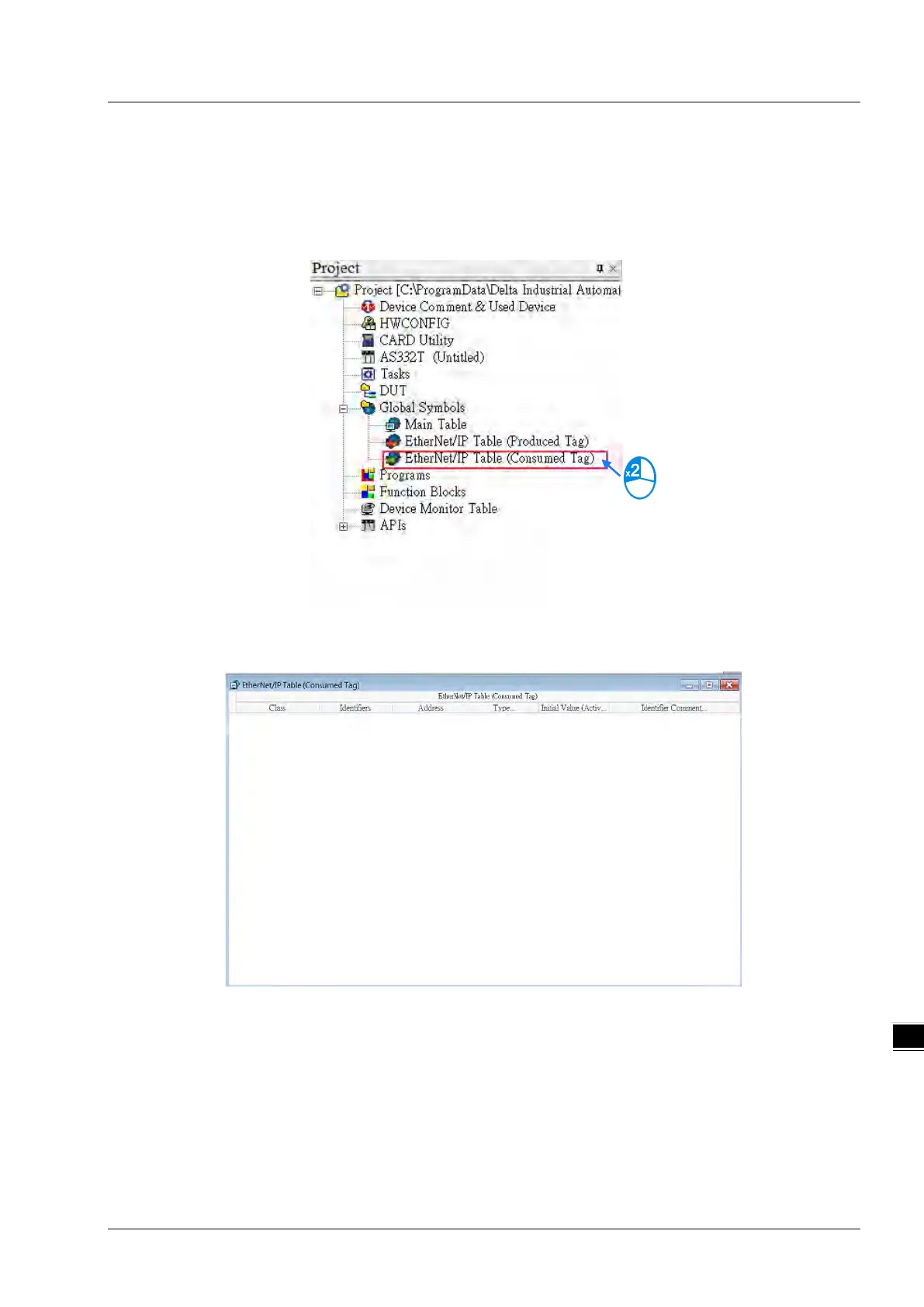

Creating a Con
sumed T
AG
1.
In
IS
PSoft, in the Proj
ect tree, ex
pand
Global Symbols
to see
EtherNet/IP T
able (
Consumed T
ag
).
2.
Double
-
c
lick
Eth
erNet/IP T
able (Con
sumed T
AG)
to create a Consum
ed T
AG.
252
254
