DVP-ES3 Series Operation Manual
4-34
_4

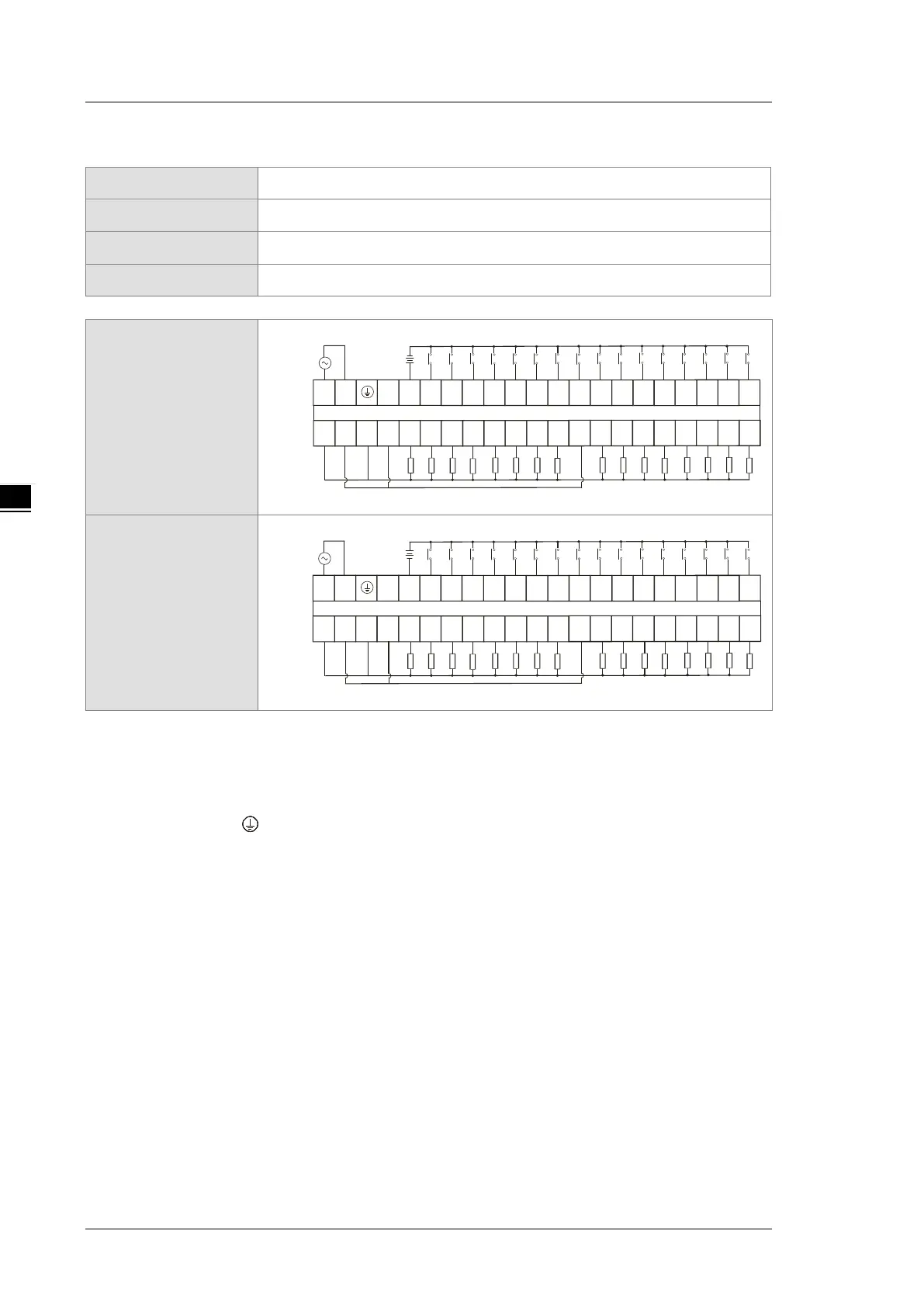

4.7.16 Wiring DVP32XP200T
Input form
Direct current (sinking or sourcing)
Voltage specifications
24 VDC, 5 mA
Output type
Transistor-T (sinking)
Voltage specifications
5 to 30 VDC, 0.5A/output, 4A/COM
Sinking input and
output
OUT
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP32XP200T ( 16DI/16DO)
+24V 24G
S/S
X0
X1 X2
X3
X4
X5 X6 X7
IN
NCL N
X10
X11 X12
X13
X14
X15 X16
X17
ZP1 Y10 Y11 Y12 Y13 Y14 Y15 Y16 Y17UP ZP0
Sourcing input and
sinking output
OUT
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP32XP200T ( 16DI/16DO)
+24V 24G
S/S
X0
X1 X2
X3
X4
X5 X6 X7
IN
NCL N
X10
X11 X12
X13
X14
X15 X16
X17
ZP1 Y10 Y11 Y12 Y13 Y14 Y15 Y16 Y17UP ZP0
Note:
1. You need to add external power supply 24 VDC (-15% ~ +20%) for UP, ZP0 and ZP1; power consumption is
up to 30 mA.
2. Connect the terminal to ground.
