DVP-ES3 Series Operation Manual
4-12
_4

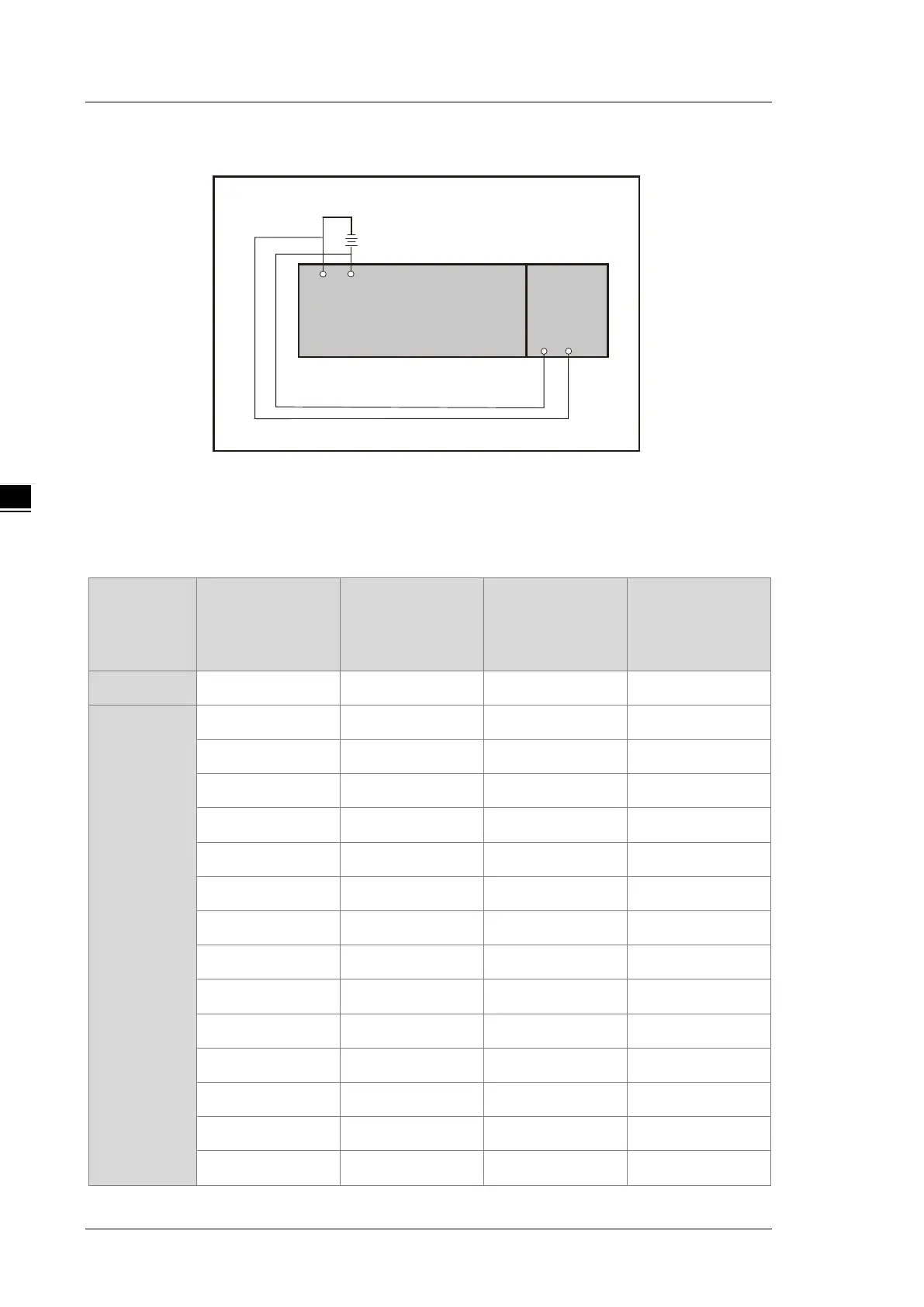

 Connecting an DC power cable
DVP-ES3
06XA
24V 0V
24V
0V
Control box
Note: Use appropriate power supply according to your device choice.
4.5.4 Power Consumption
Classification Model name
Internal power
consumption
(mA)
Internal power
consumption (W)
External power
consumption (W)
CPU module DVP32ES311T 137 3.3 N/A
Digital I/O
module
DVP08XM211N 10 0.24 N/A
DVP08XP211R 30 0.72 N/A
DVP08XP211T 12 0.29 0.12
DVP08XN211R 55 1.32 N/A
DVP08XN211T 12 0.29 0.24
DVP16XM211N 14 0.34 N/A
DVP16XP211R 14 0.34 1
DVP16XP211T 14 0.34 0.36
DVP16XN211R 14 0.34 1.9
DVP16XN211T 16 0.38 0.72
DVP24XP200R 12 0.29 N/A
DVP24XP200T 14 0.34 0.36
DVP24XN200R 14 0.34 N/A
DVP24XN200T 18 0.43 0.72
